190
Chapter 7 Installing Internal Options

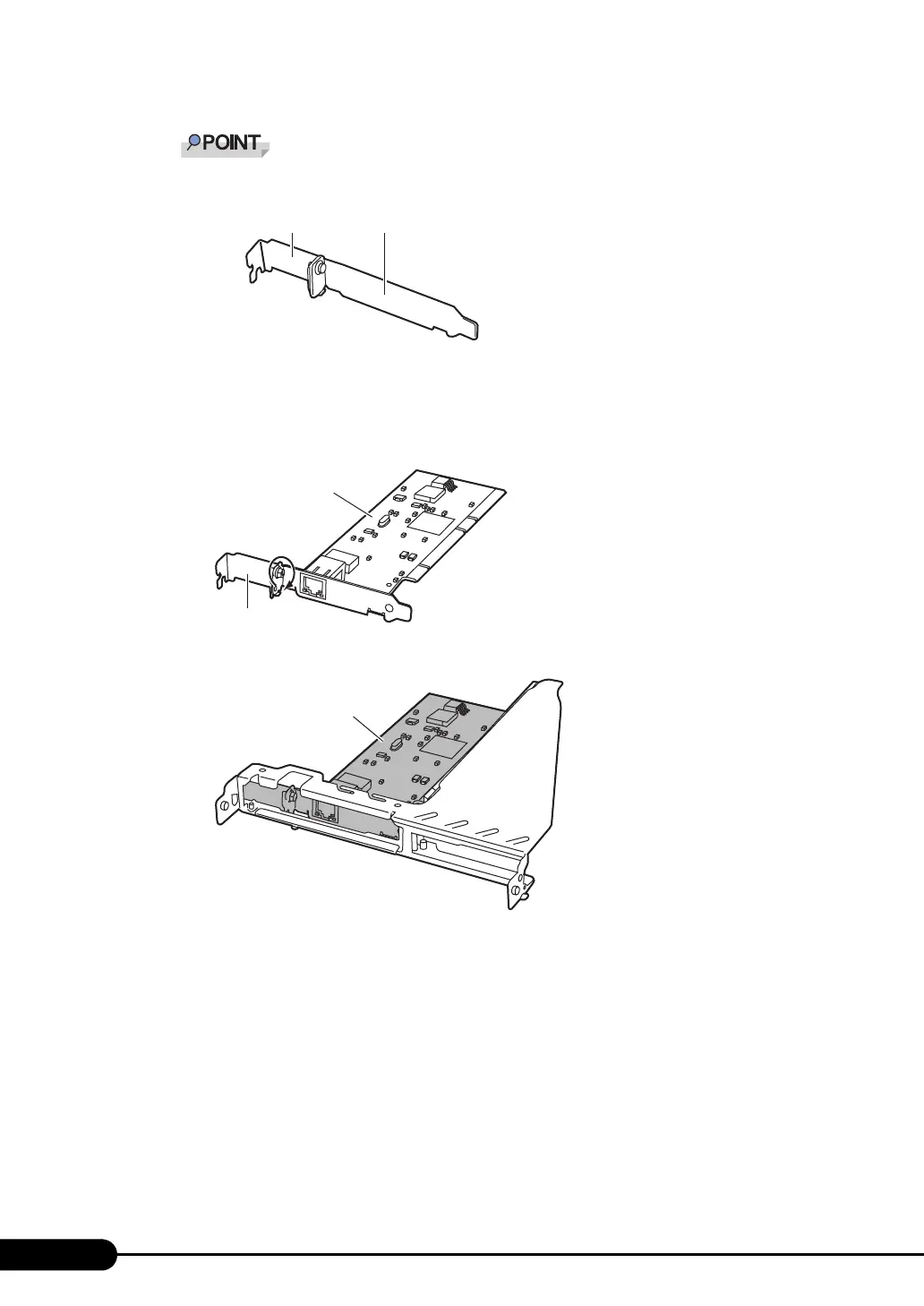

The slot cover for PCI slot 1 is composed of a LowProfile slot cover and an Extension slot
cover.
Be sure to keep the removed slot cover for later use.
5 When installing a LowProfile card, fasten the expansion card and Extension
slot cover before installation to the slot 1.
1. Fasten them with the screws supplied with the Extension slot cover.
2. Insert the expansion card securely into slot 1.
Extension
slot cover
LowProfile
slot cover
Expansion card
(LowProfile)
Extension
slot cover
Expansion card
(LowProfile)
