52 Operating Manual TX150 S6
Mounting the rack model Hardware installation

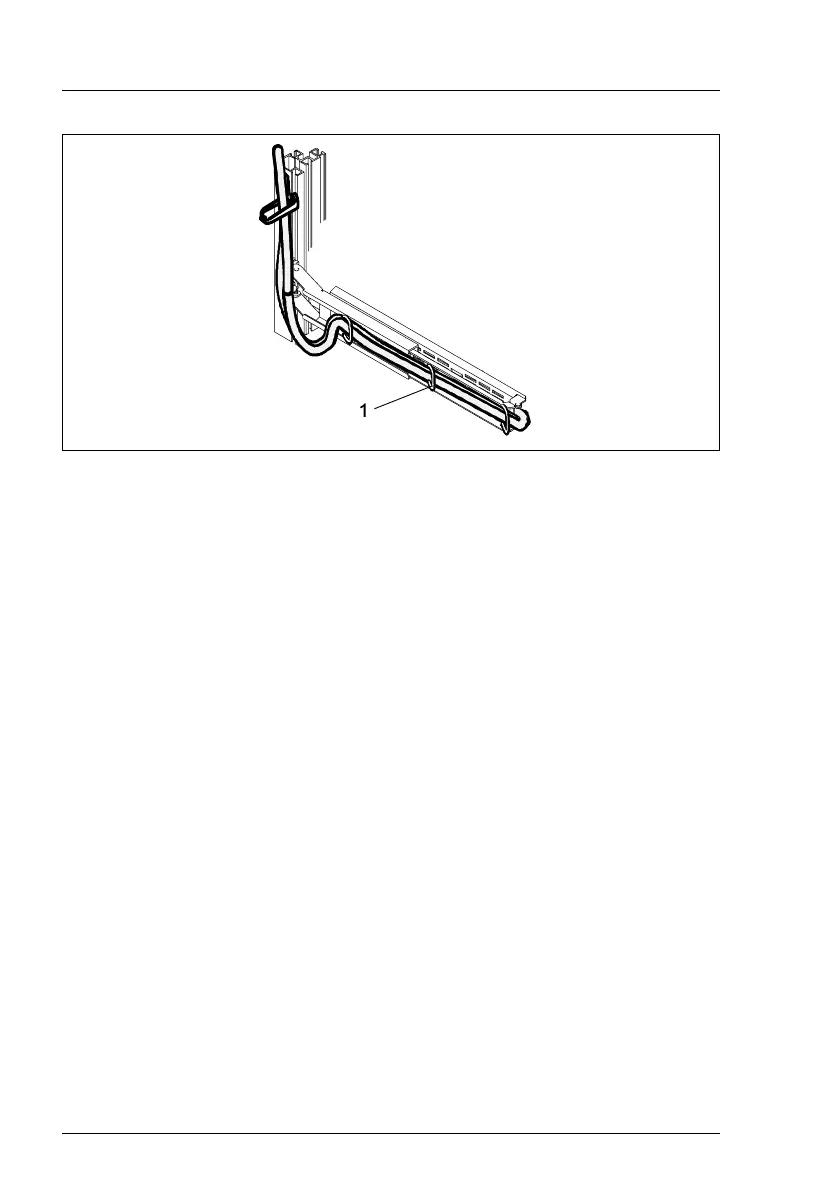

Figure 12: Routing the cables on the articulated cable guide
Ê Route the cables as shown in the figure and secure them to the articulated
cable guide with cable ties (1).
V CAUTION!
To prevent damage to fiber channel fiber optic cables, they must be
encased in a protective hose (see “Routing the fiber channel fiber optic
cable” on page 54).
Securing the cables to the articulated cable guide ensures that the articulated
cable guide extends accordingly when removing the server.
