Chapter 7 Installing Internal Options
After attaching the side cover of the server, connect the following cables. For how to connect cables,
refer to "PRIMERGY ServerBooks" supplied with the server, and "Supplement" supplied with options.
• USB cable
• VGA branch cable
• LAN cable
•AC adapter
` To make it easier to connect the server control cable into the server control port, apply pressure from
the cable side to the port side.

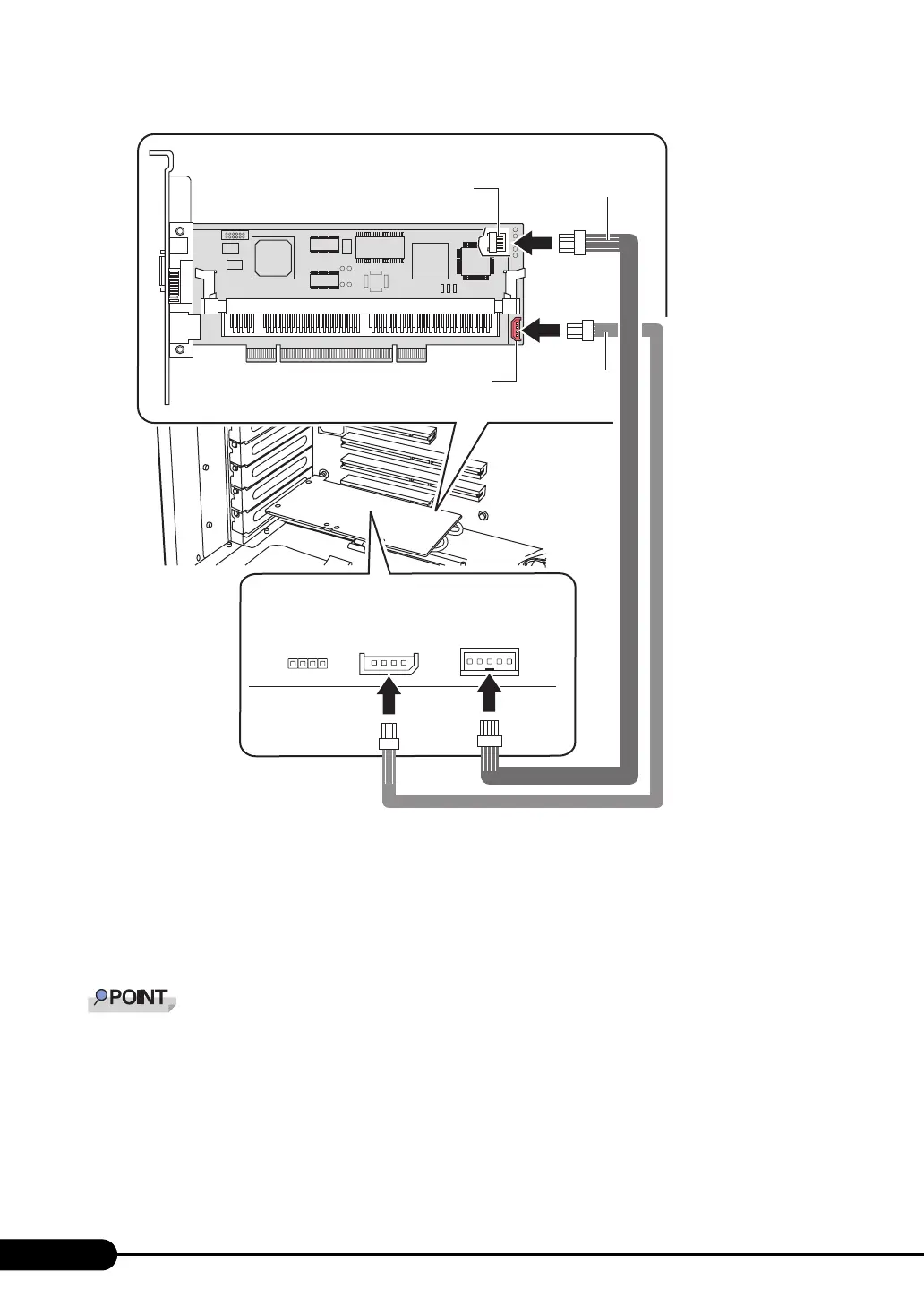

[Baseboard]
Server control
connector
(4 pins)
Internal power
connector
(5 pins)
[Remote service board]
Server control connector
(4 pins)
Server control
cable
Internal power connector
(5 pins)
Internal power cable
