6 Modifications to the basic vehicle
6.12 Handling of EV system
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
• Check if the measured resistance is within the
reference value.
• Be sure to wear insulation gloves for high
voltage.
• Check the voltmeter and resistance tester for
any problems. Record the inspection date of the
Duspol high voltage tester.

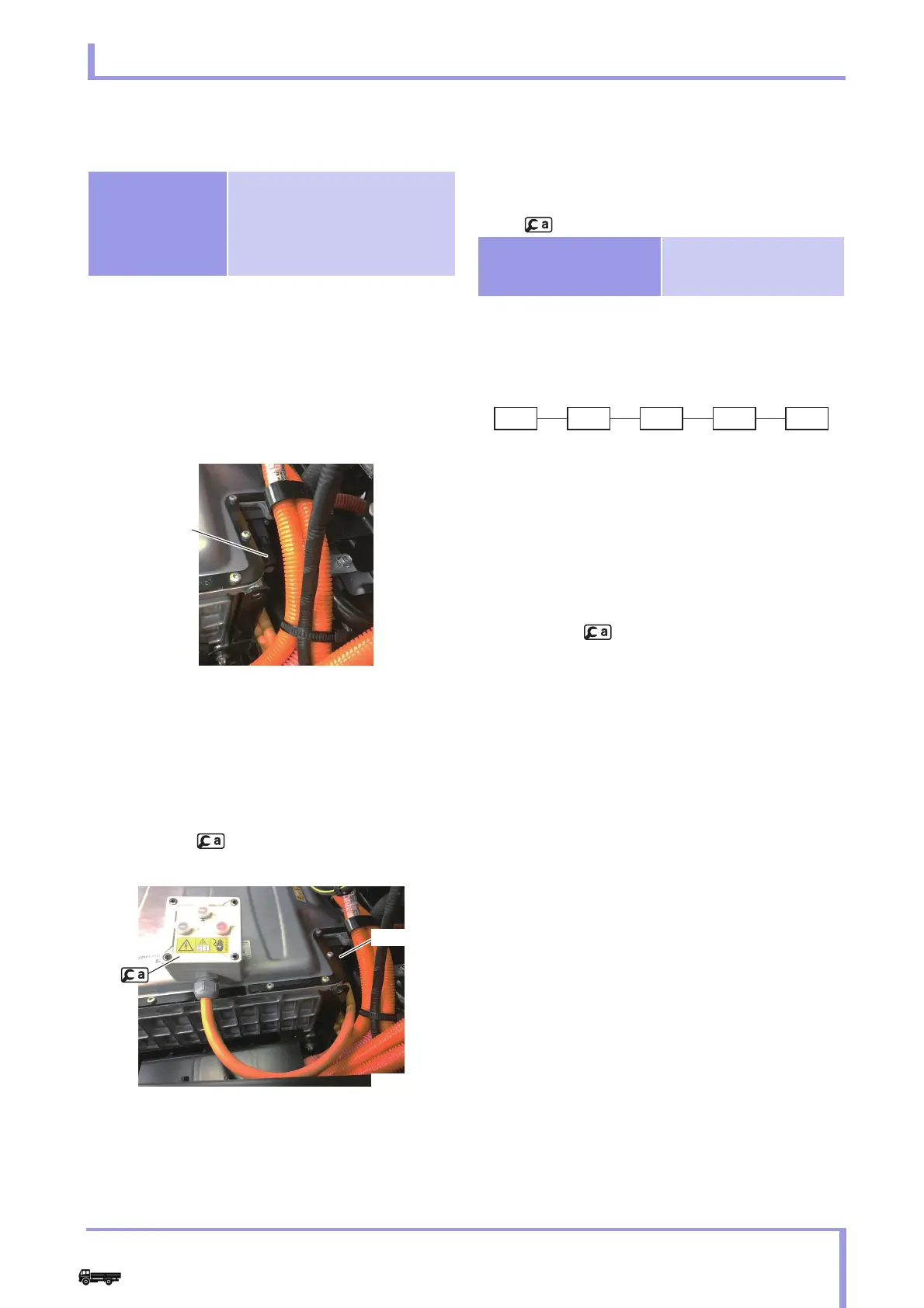

• Remove the battery side cover and remove the
No.3 or No.4 high voltage battery blind plug.
• Check the following items based on the content
of the work performed and enter the necessary
values.
• Check the insulation resistance tester
appearance and function for abnormalities.
• Check the inspection date of the Duspol high
voltage tester.
• Connect to the blind plug socket.
• Measure the insulation resistance of the high
voltage battery using a voltmeter and insulation
resistance tester and check if it is within the
reference value (by measuring the voltage via
.
• Check the high voltage equipment for visible
damages.
• Change the sign from "High voltage vehicle.
Shutting off the high voltage" to "High voltage
vehicle. Danger: high voltage".
• Remove from the high voltage battery and
attach the blind plug.
• Securely install the protection cover on the high
voltage battery.
• Connect the negative terminal of the 12 V
battery.
• The high voltage shutoff switch is pulled out
(released).
• Insert the starter key. Turn on the START/STOP
button and wait for the system check.
• Remove the sign of "High voltage vehicle.
Danger: high voltage".
• Perform the test run (functional check) and
record the travel distances before and after the
test run.
• Check all the items and record the vehicles in
the report.
Reference value
The resistance of the non-
painted portion of the frame
shall be less than 40 mÜ at
2A or higher
511793
Blind plug
Socket
511794
Reference value
2.5 mÜ or higher
(at 500 V)
HV＋ HV−
Ground
ΩΩ
511795
