Using Sonar
USinG
Sonar
Using Sonar
When connected to an optional Garmin GSD 22 sounder module and a transducer, your chartplotter
can be used as a shnder. The GSD 22 connects through the Garmin Marine Network and shares
sonar data with every chartplotter connected to the network.
Understanding the Full Screen
From the Home screen, touch Sonar > Full Screen to view a full-screen graph of the transducer’s
sonar readings. The range scale along the right side of the screen shows the depth of detected objects
as the screen scrolls from the right to the left.

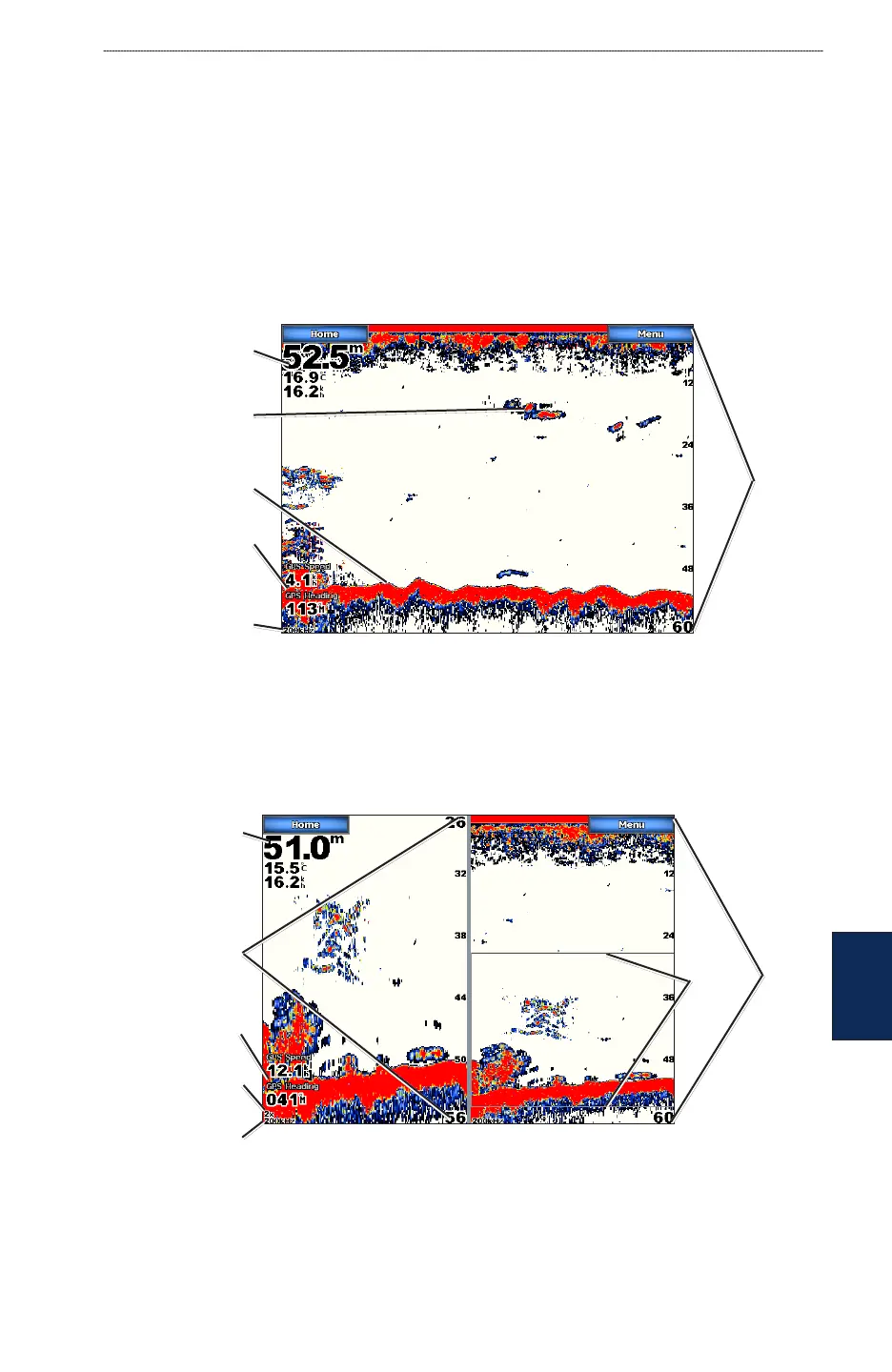

Sonar Full Screen
Suspended
target
Bottom
Depth, temperature,
and water speed
GPS speed and
GPS heading
Transducer
frequency
Range
Understanding the Split Zoom Screen
Use the Split Zoom screen to view the full sonar data from the graph and a zoomed in portion on the
same screen.
From the Home screen, touch Sonar > Split Zoom.
Sonar Split Zoom
Depth, temperature,
and water speed
GPS speed and
GPS heading
Transducer
frequency
Zoom level
Range
Zoom
window
Zoomed depth
scale
