Garmin 5000 - Understanding the Split Frequency Screen; Understanding the Temp Log

50 GPSMAP 5000 Series Owner’s Manual
Using Sonar
USinG
Sonar

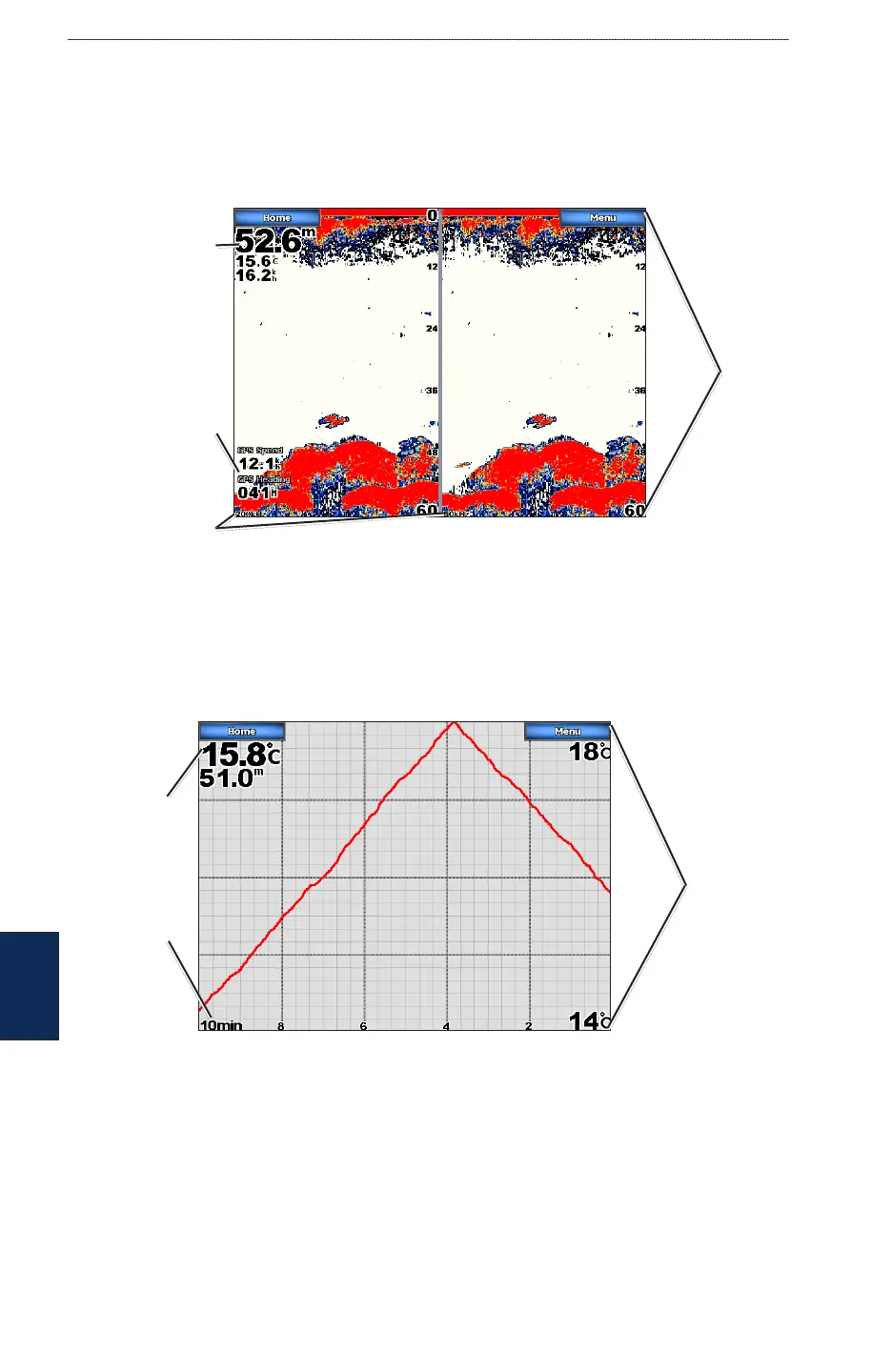

Understanding the Split Frequency Screen
Use the Split Frequency screen (dual-frequency transducer only) to view both the 50kHz and
200kHz frequencies on the same screen. A 200kHz frequency graph appears on the left; a 50kHz
frequency graph appears on the right.
From the Home screen, touch Sonar > Split Frequency.
Sonar Split Frequency
Depth, temperature,
and water speed
GPS speed and
GPS heading
Transducer
frequencies
Range
Understanding the Temp Log
If you are using a temperature-capable transducer, the Temp Log screen keeps a graphic log of
temperature readings over time. The current temperature and depth are shown in the upper-left
corner.
From the Home screen, touch Sonar > Temp Log.
Transducer Temperature Log
Temperature
and depth
Time
elapsed
Temperature
range
The temperature appears along the right side and the time elapsed appears along the bottom. The
graph scrolls to the left as information is received.
Touch MENU to access scale settings. Touch Duration to set the time elapsed scale. Touch Scale to
set the temperature range scale.
