CHAPTER4: Upgrading Your Computer
40
Replacing an optical or diskette
drive or a card reader
To replace a drive or card reader:
1 Remove the side panel by following the instructions in
“Opening and closing the case” on page 37.
2 Remove the bezel by following the instructions in
“Removing and installing the front bezel” on page38.

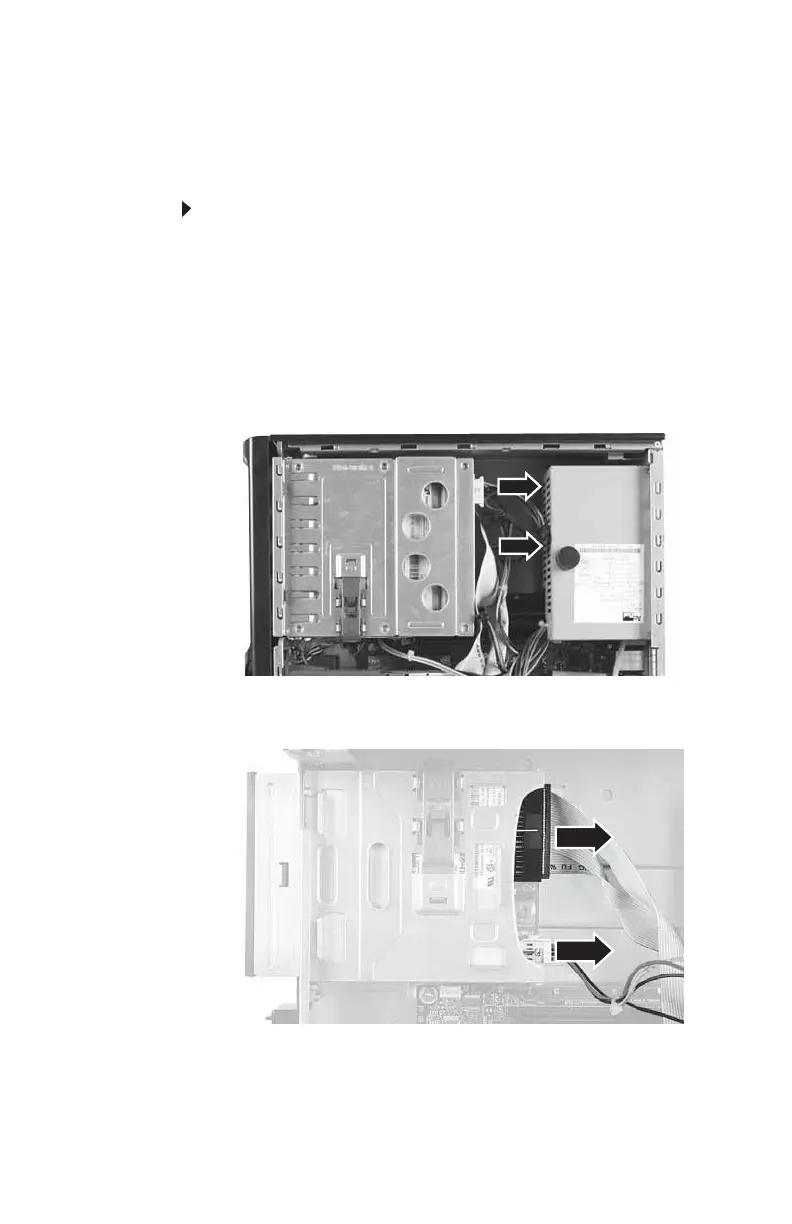

3 Disconnect the component cables, noting their locations
and orientation. You will reconnect the cables after you
install the new component. (DVD drive shown.)
5.25-inch component:
- OR -
3.5-inch component:
8512732.book Page 40 Thursday, September 27, 2007 11:33 AM
