CG18 369 MOTOR MANAGEMENT RELAY – COMMUNICATIONS GUIDE
PROFIBUS-DPV1 COMMUNICATIONS CGCOMMUNICATIONS GUIDE

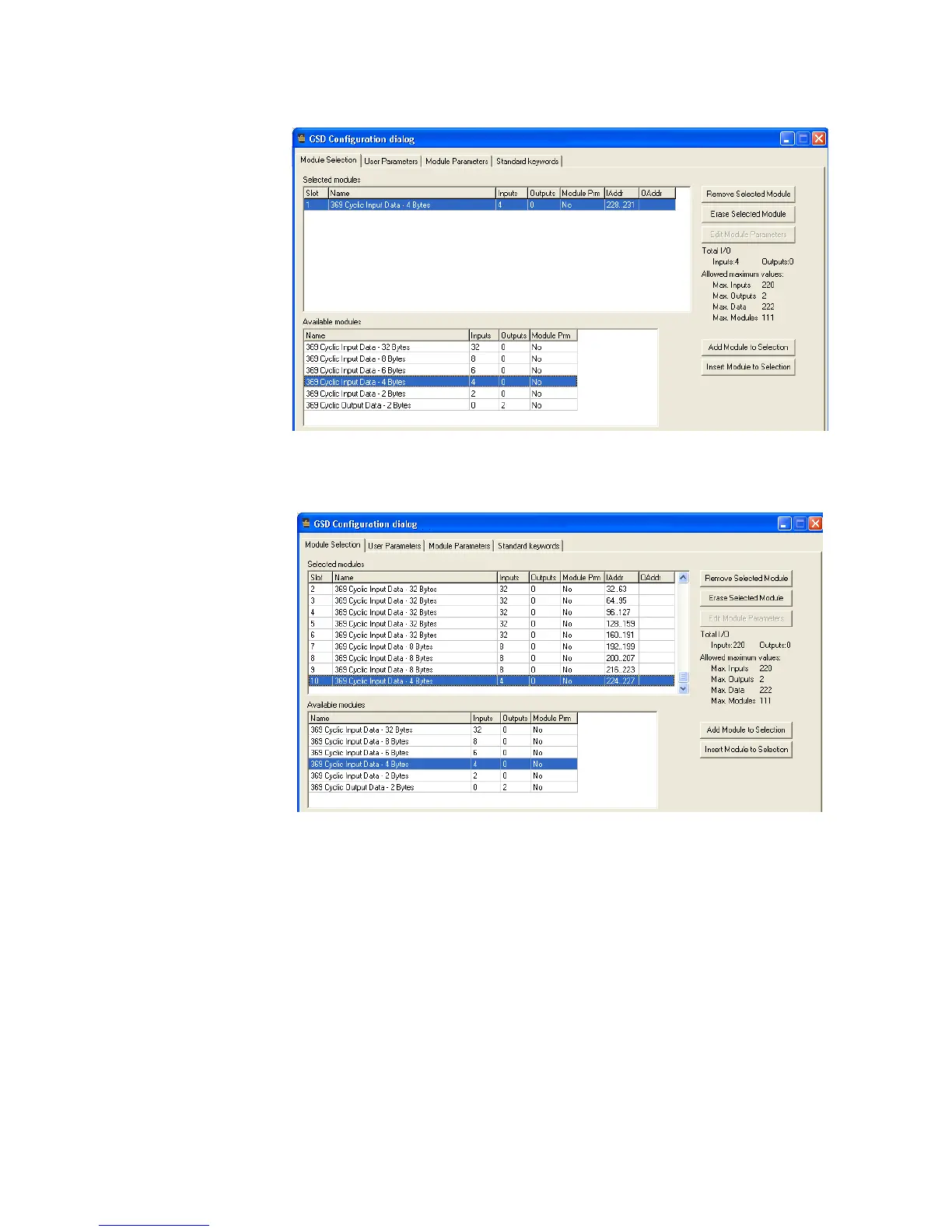

FIGURE CG–3: Slave Configuration Example 1 – 4 Bytes of Input Data
FIGURE CG–4: Slave Configuration Example 2 – 220 Bytes of Input Data
3.4 369 Relay Profibus Output Data
The capability to force the output relays states has been implemented in cyclic output
data. As cyclic data is continuously written, the 369 looks for a change in the value to
execute the force relays command. Refer to the 369 Instruction Manual, chapter 5 for more
information about the force output relays feature.
