FunctionID tagComponentPart
Used for releasing and engaging valves dur-
ing flow kit and column installation. Three
different positions:
HS-5Installation
switch
13
FLOW KIT INSTALL: Opens all valves. User
can manually open/close valve locks.
RUN: Engages all valves. User cannot open
safety valve locks — valves are controlled by
UNICORN.
COLUMN INSTALL: Releases valves between
airtrap outlet to column inlet. Allows for re-
moval of air in tubing between column and
air trap.
6 valves, located on the right side of the
chromatography unit.
XV-051 to
XV-056
Outlet valves14
The air filter is located in a holder underneath
the system cabinet.
-Air filter15
Components on system cabinet
— back

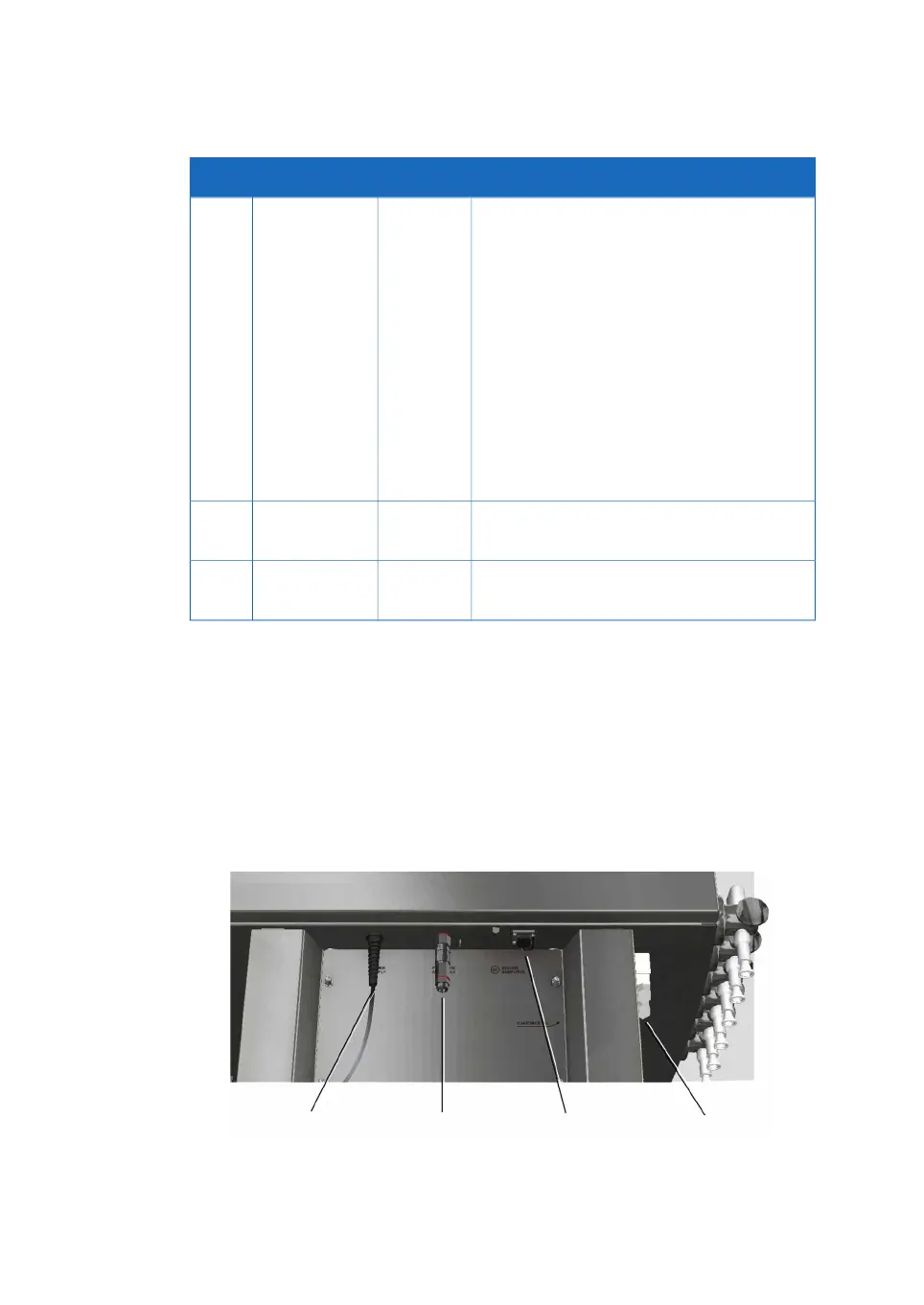

Location of connectors
Connectors for system power, pressurized air, customer I/O, and computer network are
located on the rear of the system unit, at the bottom of the cabinet:
40 ÄKTA ready Operating Instructions 28960345 AD
3 System description
3.2 Layout
