3.4 Equipment

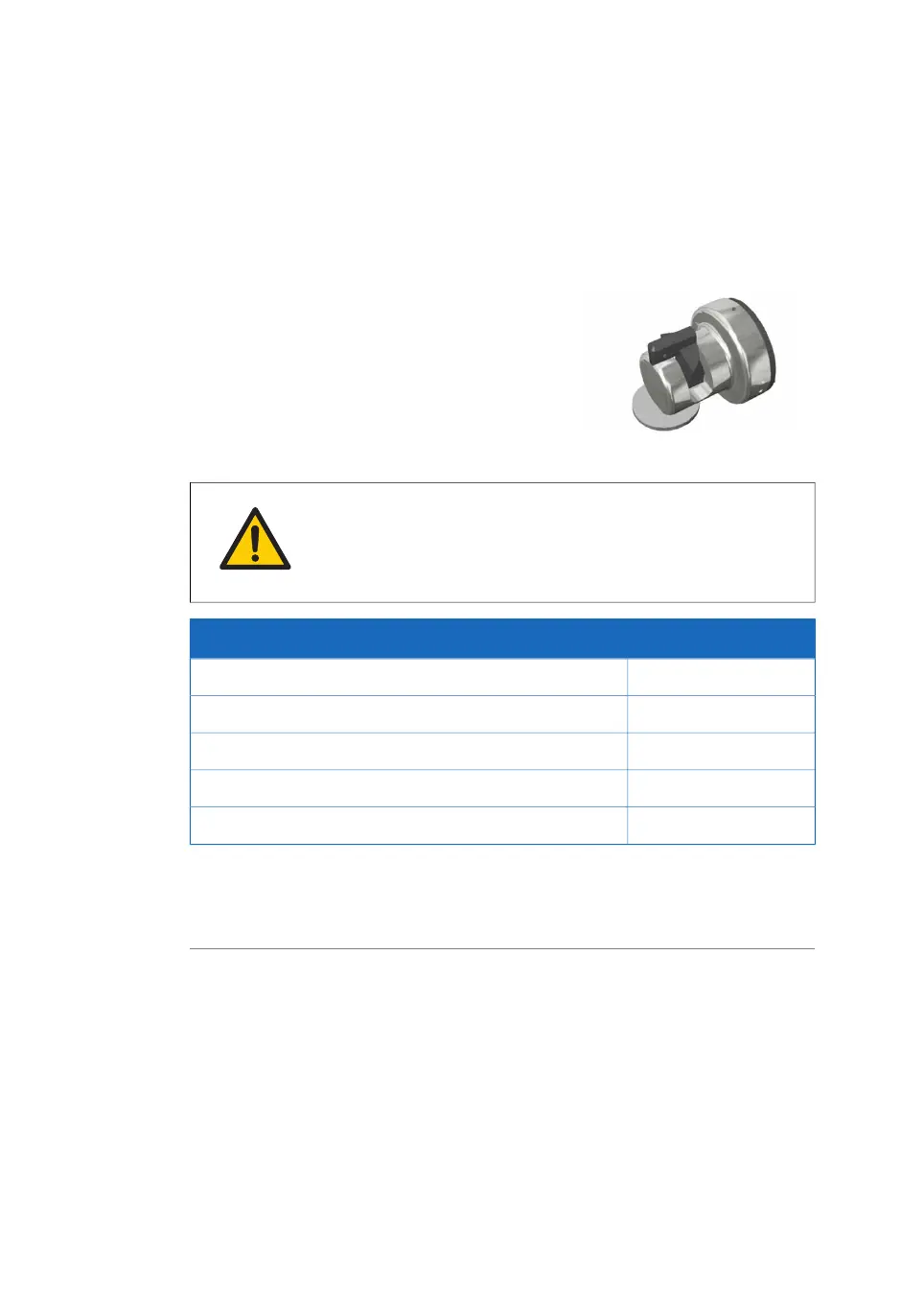

Pinch valves
Pinch valves are used to control the path of the
liquid flow through the system. There are 19 pinch
valves in total. The valves have manually operated
safety locks keeping the tubing in place and pre-
venting the valves from accidentally closing during
flow kit installation.
WARNING
Never put fingers or any objects other than the intended tubing in
to the pinch valve opening.
Default positionValves
ClosedInlet valves, XV-001 to XV-006
InlineAir trap valves, XV-021 to XV-023
BypassColumn valves, XV-031 to XV-033
ClosedOutlet valves, XV-051 to XV-056
ClosedAir Vent Valve, HV-301
During pause, the air trap valves will remain in the same position as during the run. The
user can change this by setting the air trap valves to inline during pause, in the System
Settings in UNICORN.
