Appendix B. Using the Clamping Fixtures
8. Use the wing nuts to tighten the chains on the long block until the block is tightly secured to the pipe.
IMPORTANT: Make sure both chains are perpendicular to the bottom of the block and are not twisted. If the
chains are slanted, the slack may cause the block to move.

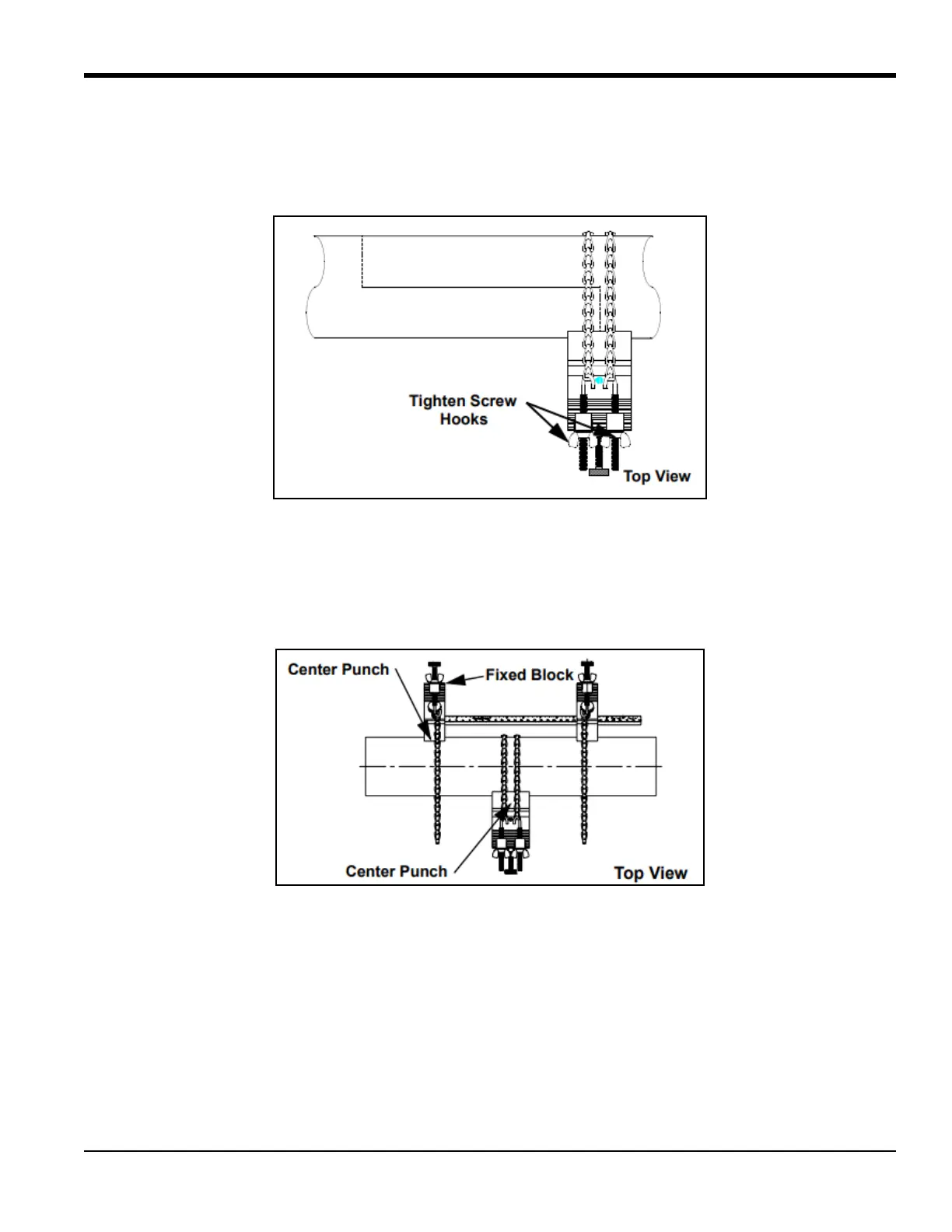

Figure 92: UCF Setup, Odd Traverse, Step 8
9. Position the clamping fixture rails so that the fixed short block is placed over the remaining center
punch mark on the opposite side of the pipe and the pressure bolt is directly over the punch mark.
Make sure the fixed short block is not positioned on top of the chains of the long block. The
adjustable short block may be placed on either side of the long block chains.
Figure 93: UCF Setup, Odd Traverse, Step 9
10. Wrap one short block chain around the pipe and fasten the chain to the screw hook on the opposite
side of the block. Repeat this for the other short block.
Note: Make sure the chains on both blocks are on the same side of the fixture and are opposite the slide rail
with the ruler.
