Mechanical Positioning
Page 3-4
3.2.3. Wig-Wag

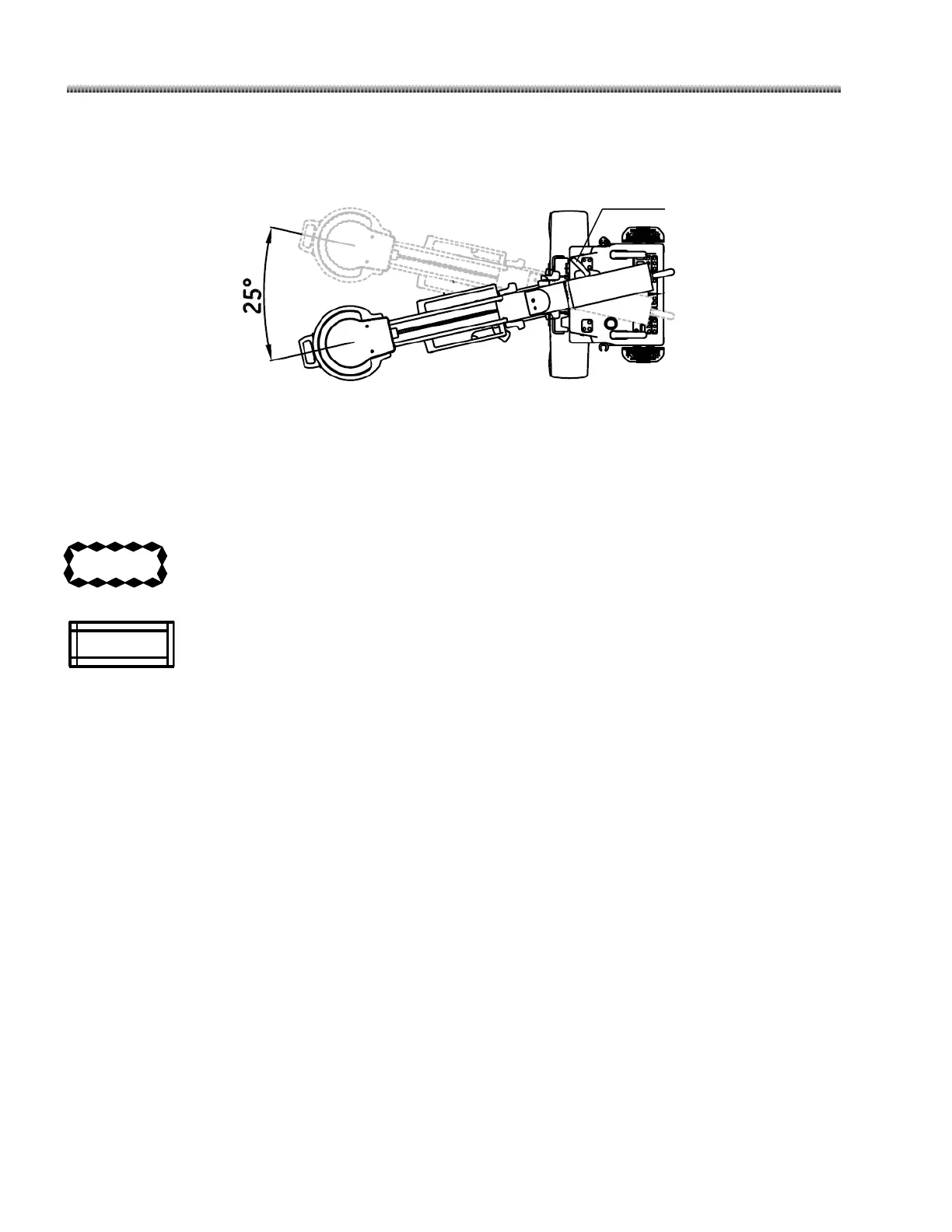

The movement range of the Wig-Wag is 25° ( ±12.5°).
Release the Wig-Wag brake by placing the brake handle in the position indicated by the “unlock” label to
enable the Wig-Wag movement of the C-Arm.
Lock the Wig-Wag brake by placing the brake handle in the position indicated by the “lock” label to lock the
Wig-Wag movement of the C-Arm.
Pinch points exist under the Wig-Wag brake handle.
In use of Wig-wag brake, don’t lift the brake handle. Once the handle is lifted, it will be in
calibration mode, the location of LOCKED will be changed unconsciously.
Calibration of Wig-Wag brake:
1. Lift Wig-Wag handle when it’s LOCKED.
2. Rotate the handle to any locking position you want.
3. Put down the handle.
Please check if the Wig-Wag brake could effective use after calibration.
