Probes
LOGIQ E9 – User Guide 1-53
Direction 5454884-100 English Rev. 1
Multi Angle Biopsy Guide Assembly (continued)
5. Place the proper sanitary sheath tightly over the probe and
biopsy bracket. Use the rubber bands supplied to hold the
sheath in place.

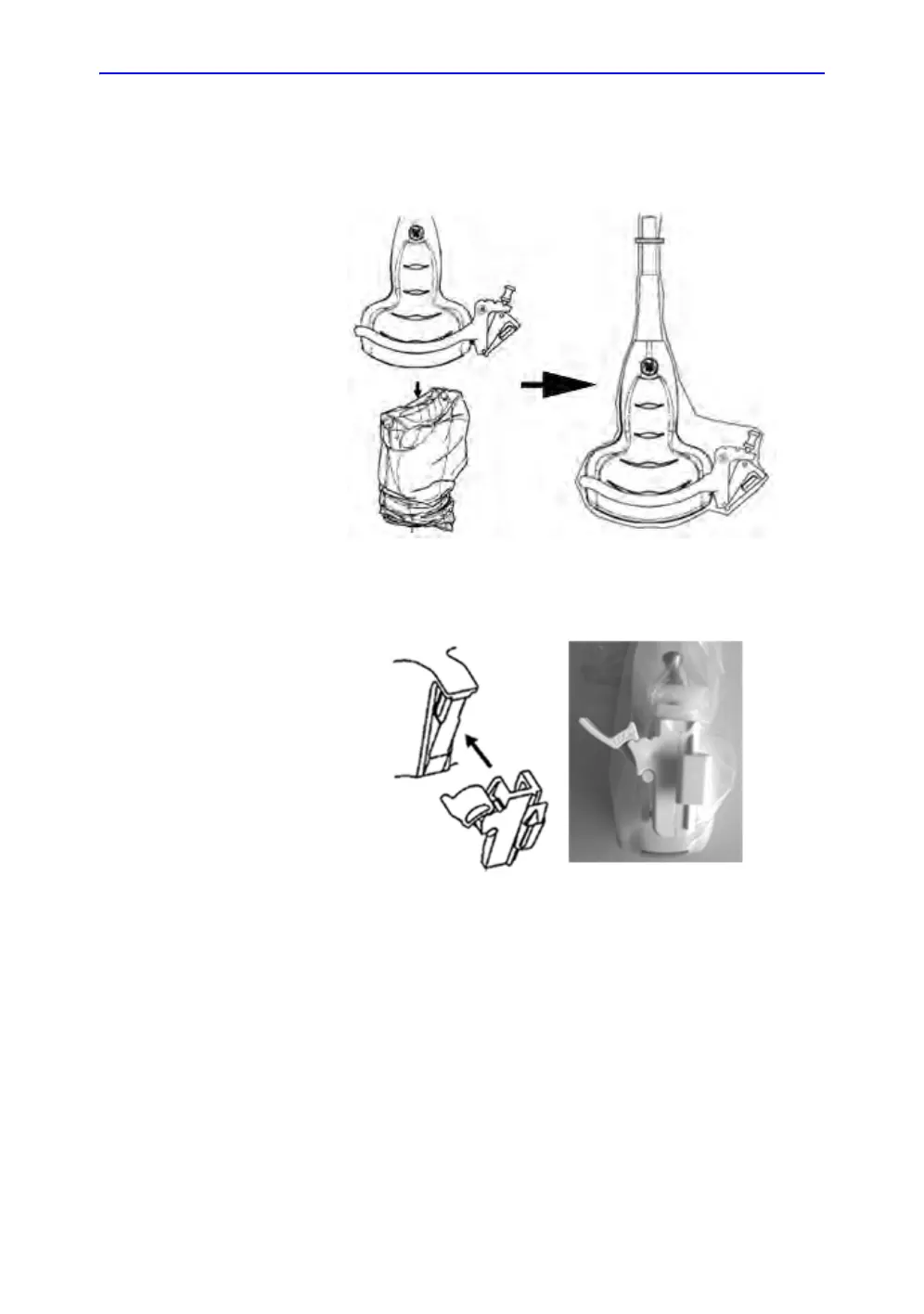

Figure 1-31. Applying Sanitary Sheath
6. Snap the needle guide onto the biopsy guide bracket.
Figure 1-32. Snap the needle guide
