GE LOGIQ P6 Service Manual

GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 23
8-2-4-4 Assembly procedure (cont’d)

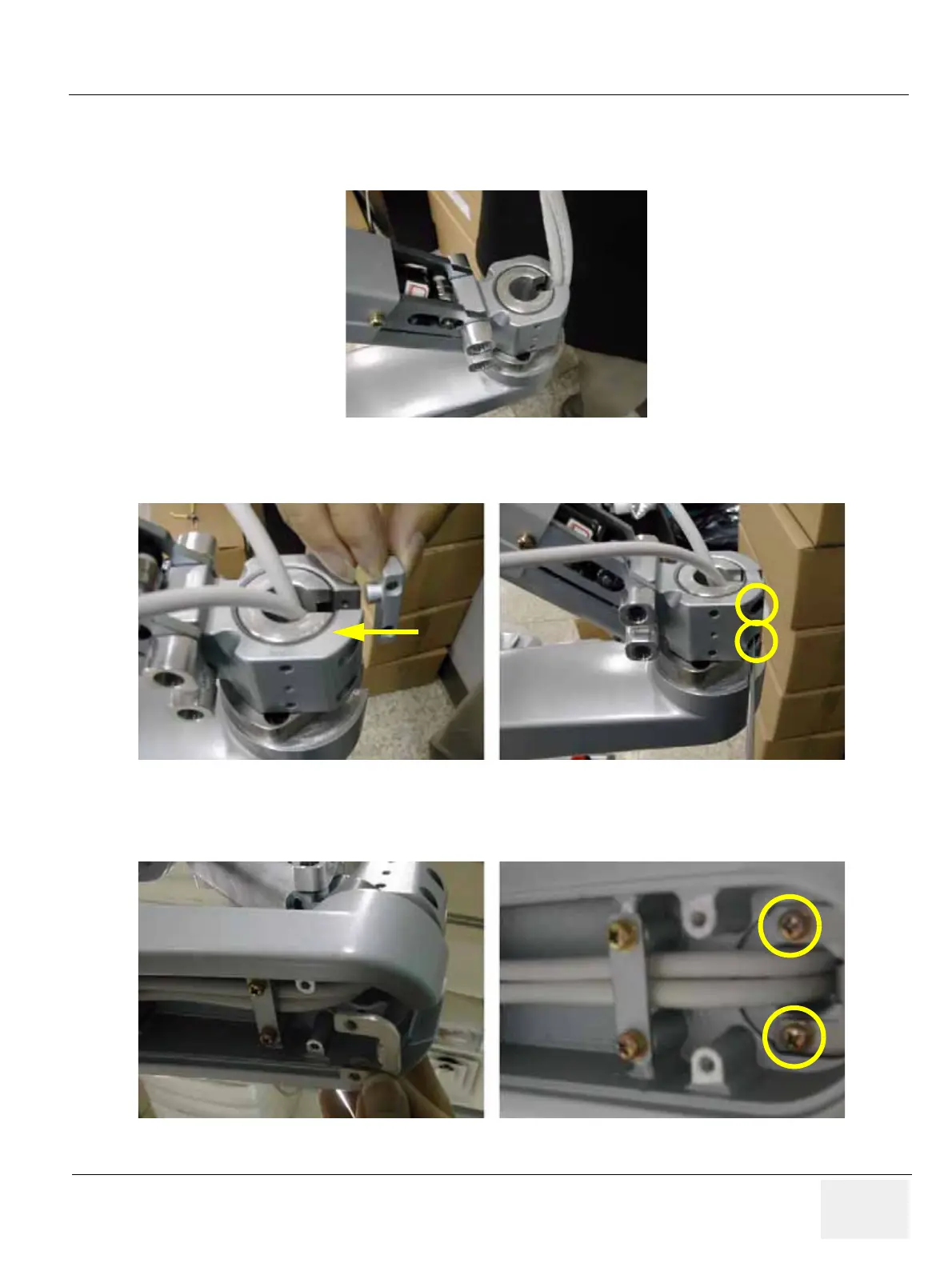

9.) Put in the two cables. Refer to the figure below. Make sure place DVI cable be on the right side,
power cable on the left side.
10.)Screw 2 screws (5257149, HSH M4X20) to assemble the Arm stopper. Refer to the figure below.
11.)Screw 2 screws (2159625, PH M4X8 W/SP) to assemble the Lower arm guide bracket.Refer to the
figure below.
Figure 8-44 Putting in the cables
Figure 8-45 Installing the Arm stopper
Figure 8-46 Assembling the Lower arm guide bracket
