8-2-11 TGC key assy / TGC Knob Set
8-2-11-1 Tools
• Common philips screwdrivers
8-2-11-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-11-3 Removal procedure
1.) Remove the CFUNCKEY Assy. Refer to the 8-2-6 "Main Keyboard Assy" on page 8-36.
2.) Remove the TGC Knobs. Refer to the figure below.
3.) Unscrew 4 screws (1-4). Refer to figure below.

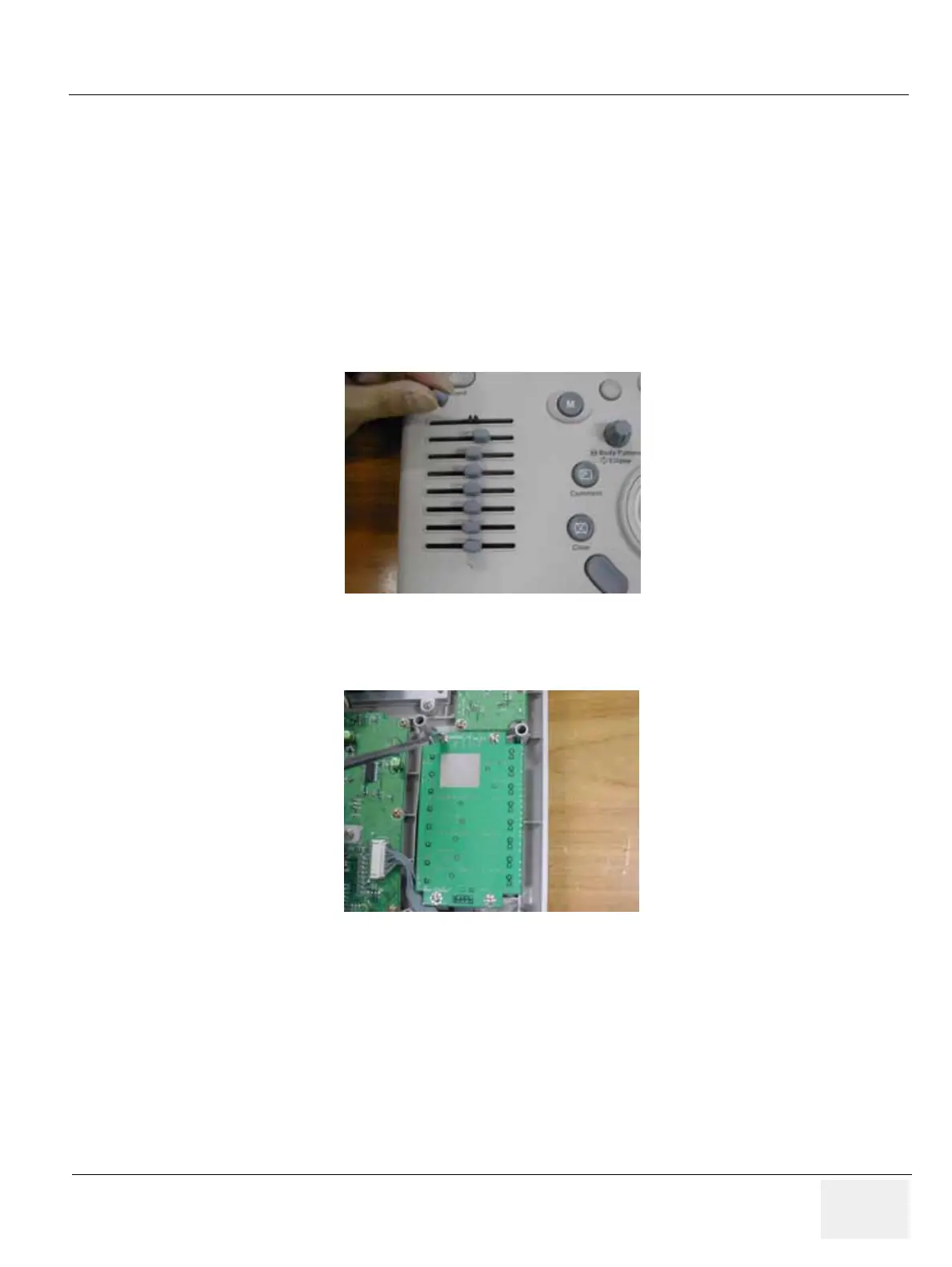

Figure 8-81 8 TGC Knobs
Figure 8-82 TGC PCB Assy in Keyboard
12
34
