GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 53
8-2-18 Top Cover
8-2-18-1 Tools
Common philips screwdrivers
8-2-18-2 Preparations
Shut down the system and switch off the main breaker.
8-2-18-3 Removal procedure
1.) Remove the Dummy Cover L/R. Refer to the 8-2-23 "Dummy Cover L / R" on page 8-60.
2.) Remove the Top Buttom Cover. Refer to the 8-2-19 "Top Bottom Cover" on page 8-54.
3.) Remove 2 rubber caps (1-2) from the top cover of the system and unscrew 2 screws (1-2). Refer to
the figure below.
4.) Unscrew 5 screws (1-5) from the bottom of the top cover.
5.) Remove the Top Cover.
6.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-18-4 Mounting Procedure
Install the new parts in the reverse order of removal.

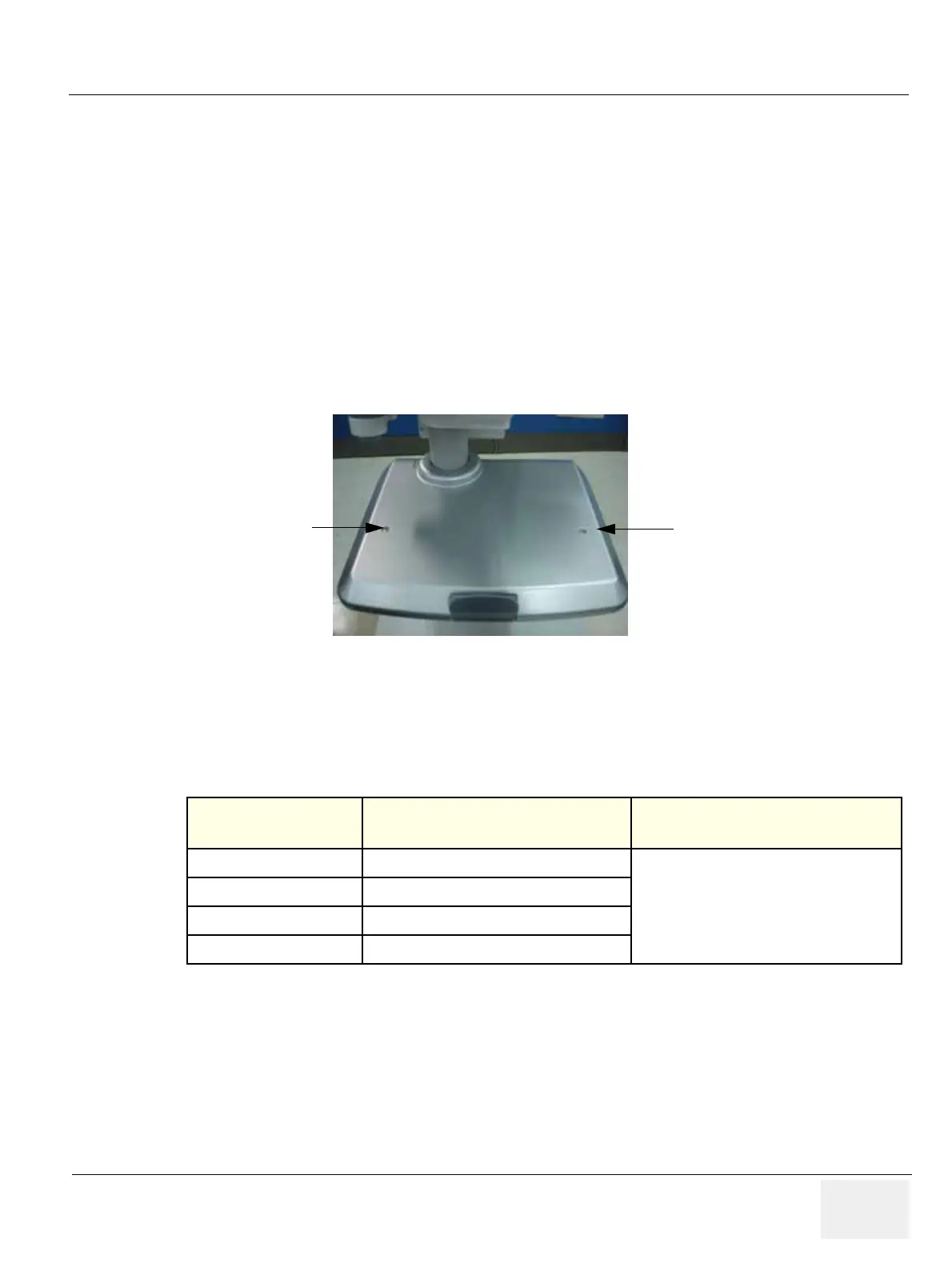

Figure 8-93 2 rubber caps of top cover
Table 8-19 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5245279, Rev 3+, Section 8-2-18. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
(1)
