GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 54 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-19 Top Bottom Cover
8-2-19-1 Tools
Common philips screwdrivers
Stubby screwdriver (Flat tip and Cross tip)
8-2-19-2 Preparations
Shut down the system and switch off the main breaker.
8-2-19-3 Removal procedure
1.) Remove the Dummy Cover L/R. Refer to the 8-2-23 "Dummy Cover L / R" on page 8-60.
2.) Unscrew 7 screws (1-7) from the bottom of the top cover. Refer to the figure below.
3.) Remove the Top Buttom Cover.
4.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-19-4 Mounting Procedure
Install the new parts in the reverse order of removal.

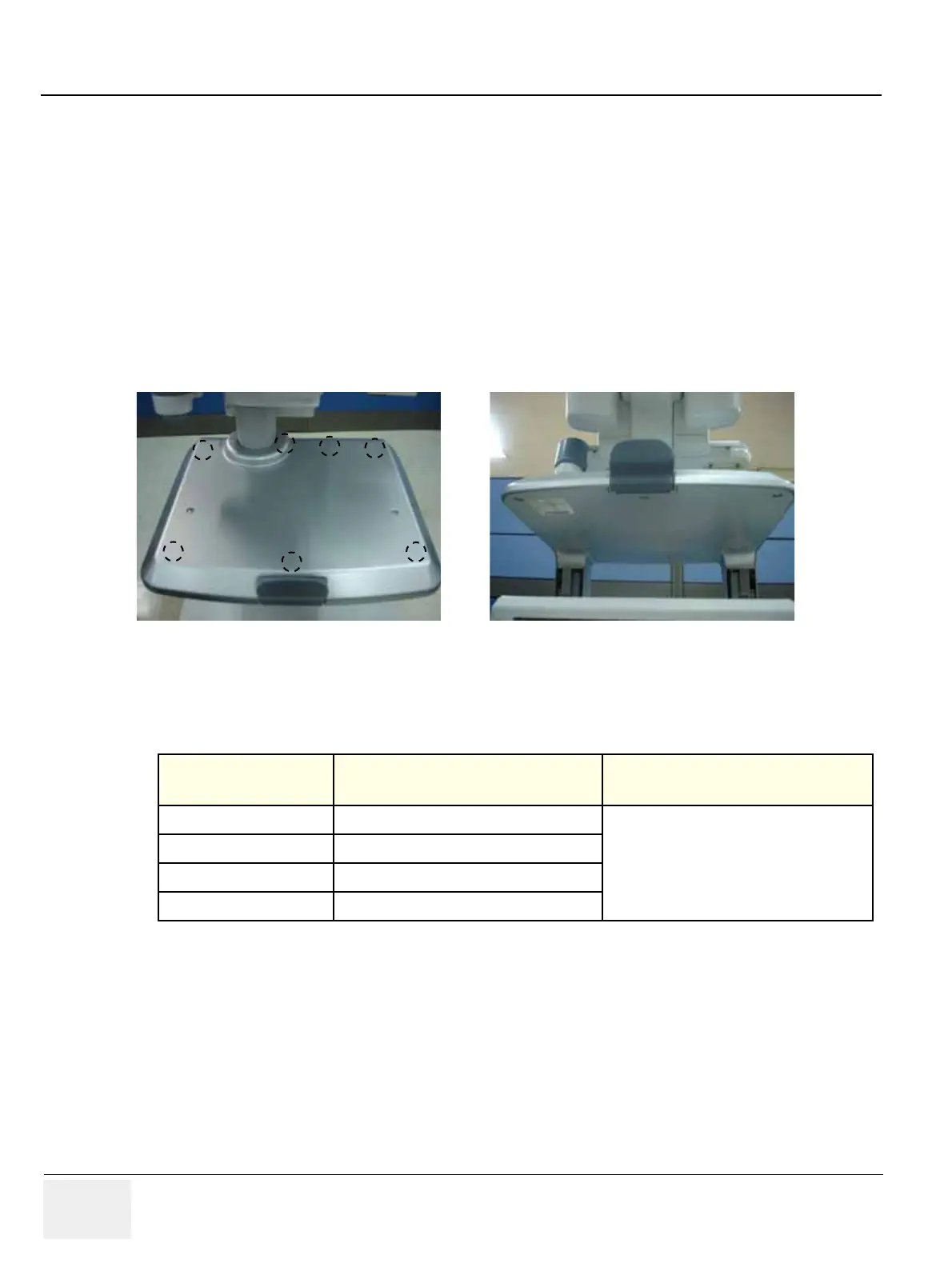

Figure 8-94 Top bottom cover
Table 8-20 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5245279, Rev 3+, Section 8-2-19. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
