8-2-28-3 Removal procedure (cont’d)
10.) Unscrews 13 screws to remove back plane from nest box. Refer to the Figure 8-110.
11.)Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-28-4 Mounting Procedure
Install the new parts in the reverse order of removal.

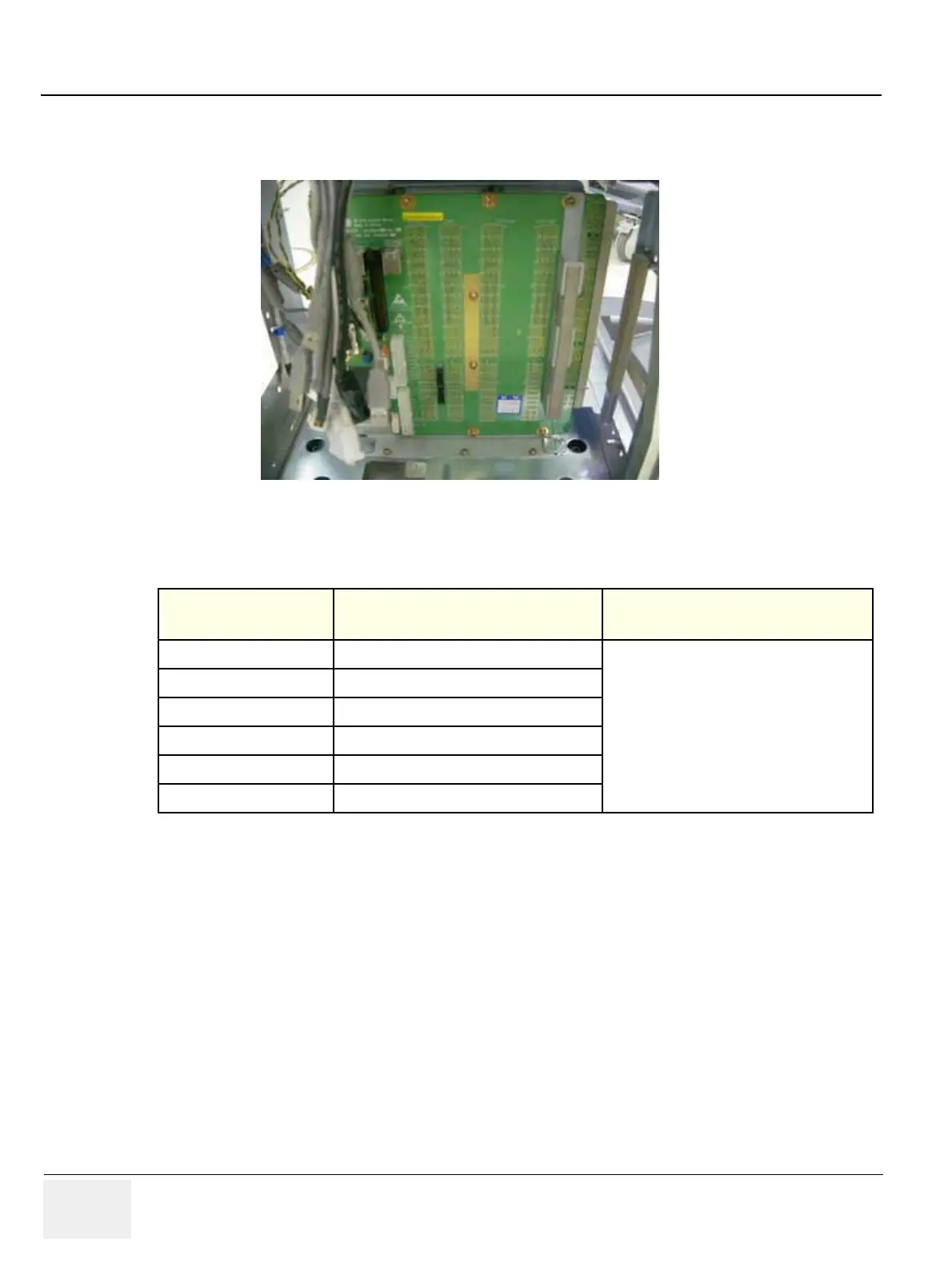

Figure 8-110 BP128 Assy
Table 8-29 Functional Tests
Service Manual
Section Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5245279, Rev 3+, Section 8-2-28. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-9-8
BP128 Assy Function Validation Procedure
Section 4-3-4
System B/M-Mode Checks
Section 4-3-5
System CFM and PWD Checks
Section 10-5-2
Functional Checks (See Also Chapter 4)
