GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8 - 85
8-2-39 Air Filter Set
8-2-39-1 Tools
• No need tool
8-2-39-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-39-3 Removal procedure
1.) Pull out the 2 Air filters from the bottom left and right side of the trans box. Refer to the Figure 8-127.
2.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-39-4 Mounting Procedure
Install the new parts in the reverse order of removal.

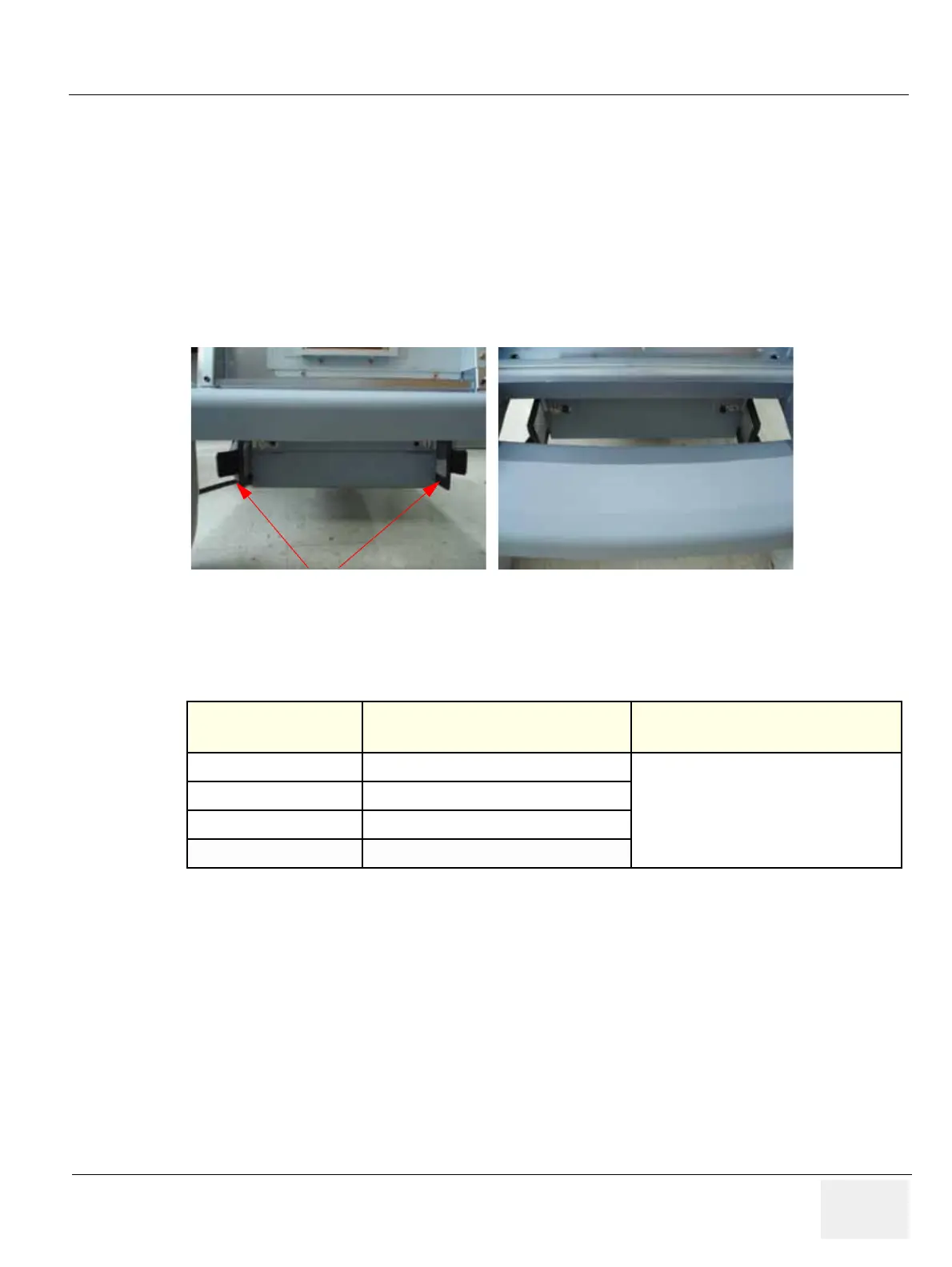

Figure 8-127 Air filters
Table 8-40 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5245279, Rev 3+, Section 8-2-39. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-2
Air filter set Function Validation Procedure
Section 10-5-5
Physical Inspection
Air filters
View from the foot rest
