GE HEALTHCARE
DIRECTION 5245279, REVISION 3 LOGIQ™ P6/P6 PRO SERVICE MANUAL
8 - 86 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-40 DVD R/W Drive
8-2-40-1 Tools
• Common philips screwdrivers
• Clock screw driver
8-2-40-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-40-3 Removal procedure
1.) Remove the side Left and Right covers. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-47.
2.) Remove EMI Left cover. Refer to the 8-2-24 "EMI Cover L and R" on page 8-62.
3.) Remove the HDD assy. Refer to the 8-2-43 "SATA HDD Assy" on page 8-92.
4.) Disconnect ODD SATA Power Cable and SATA Cable. From DVD Drive. Refer to the Figure 8-128.
5.) Remove the Front Cover. Refer to the 8-2-15 "Front Cover" on page 8-49.
6.) Unscrew the 4 screws on the front of the DVD drive and remove the DVD Assy. Refer to the Figure
8-129.

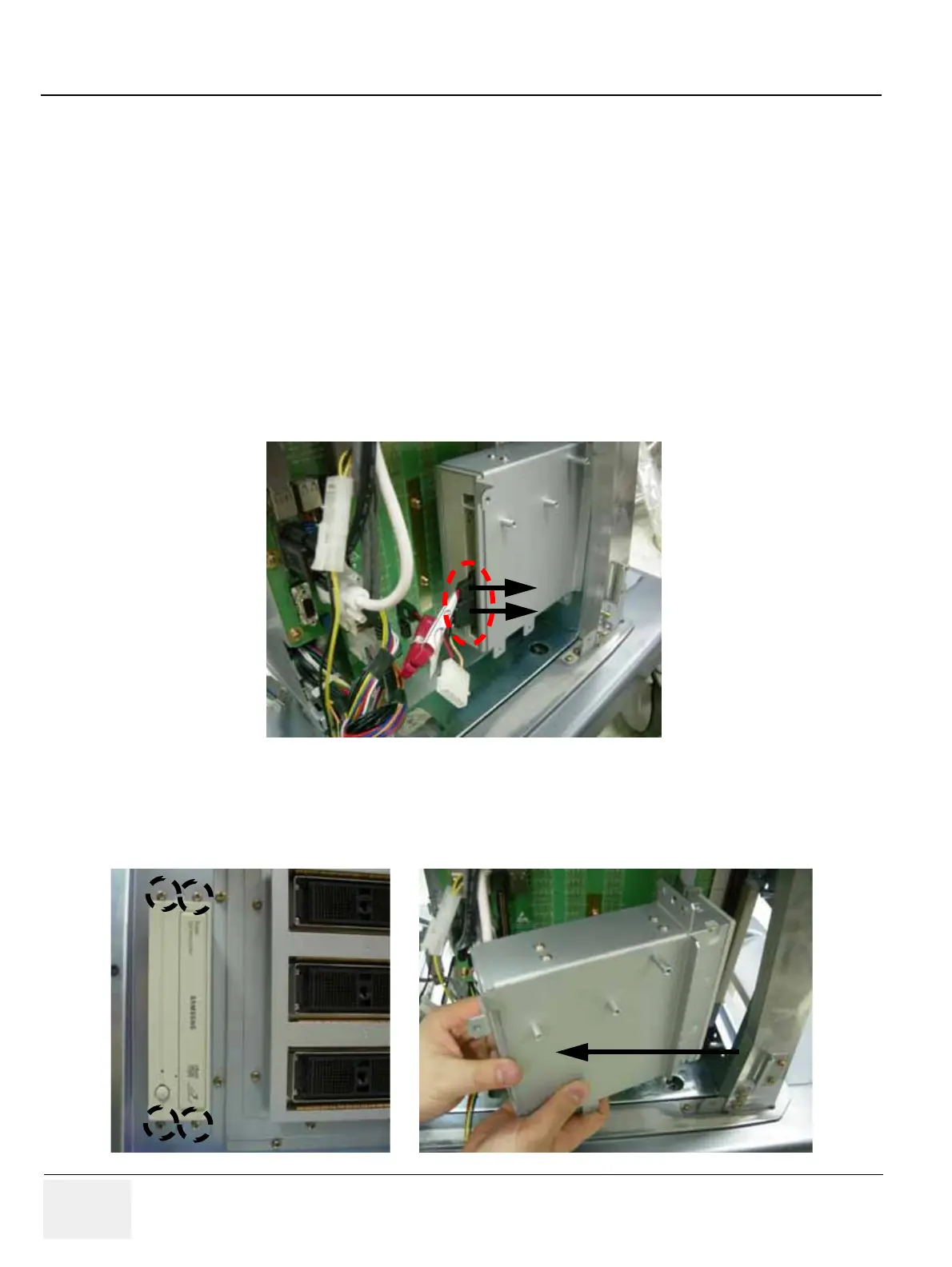

Figure 8-128 ODD SATA Power Cable and SATA cable of DVD Drive
Figure 8-129 Unscrew 4screws and remove the DVD Assy
SATA Cable
ODD SATA
Power Cable
To Next Page
