8-7-10 Printer VCR DVD fixture Top installation - CP900 Printer (cont’d)
7.) Connect the cable from the color printer to the system. Refer to the Figure 8-310.
8.) Install hide bracket by screwing 2 screws. Refer to the Figure 8-311.
9.) Tie the cable properly using the tie wrap.

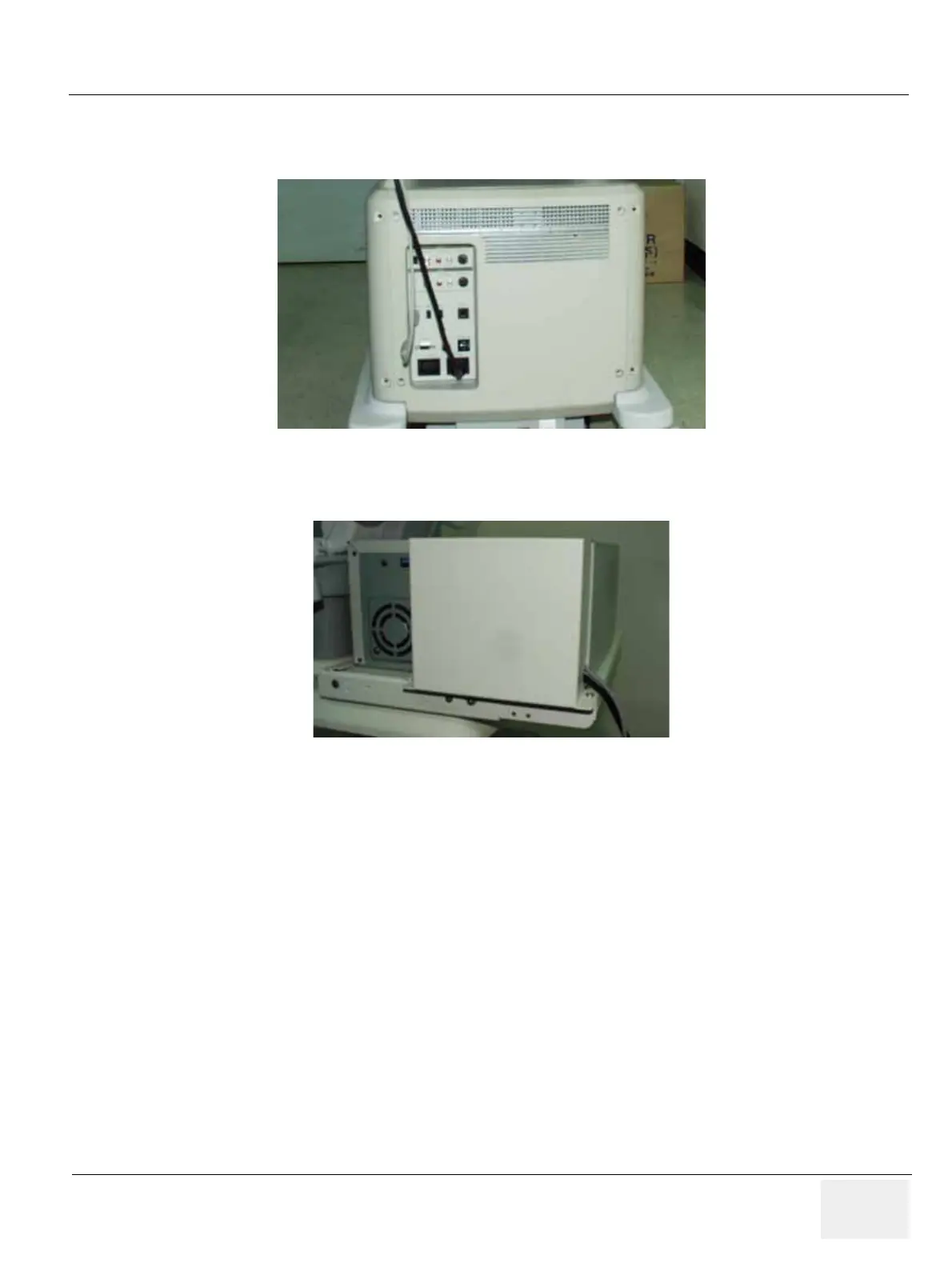

Figure 8-310 Printer VCR DVD Fixture Top installation
Figure 8-311 Printer VCR DVD Fixture Top installation
