P44x/EN CM/Hb
MiCOM P40 Agile P442, P444
(CM) 9-

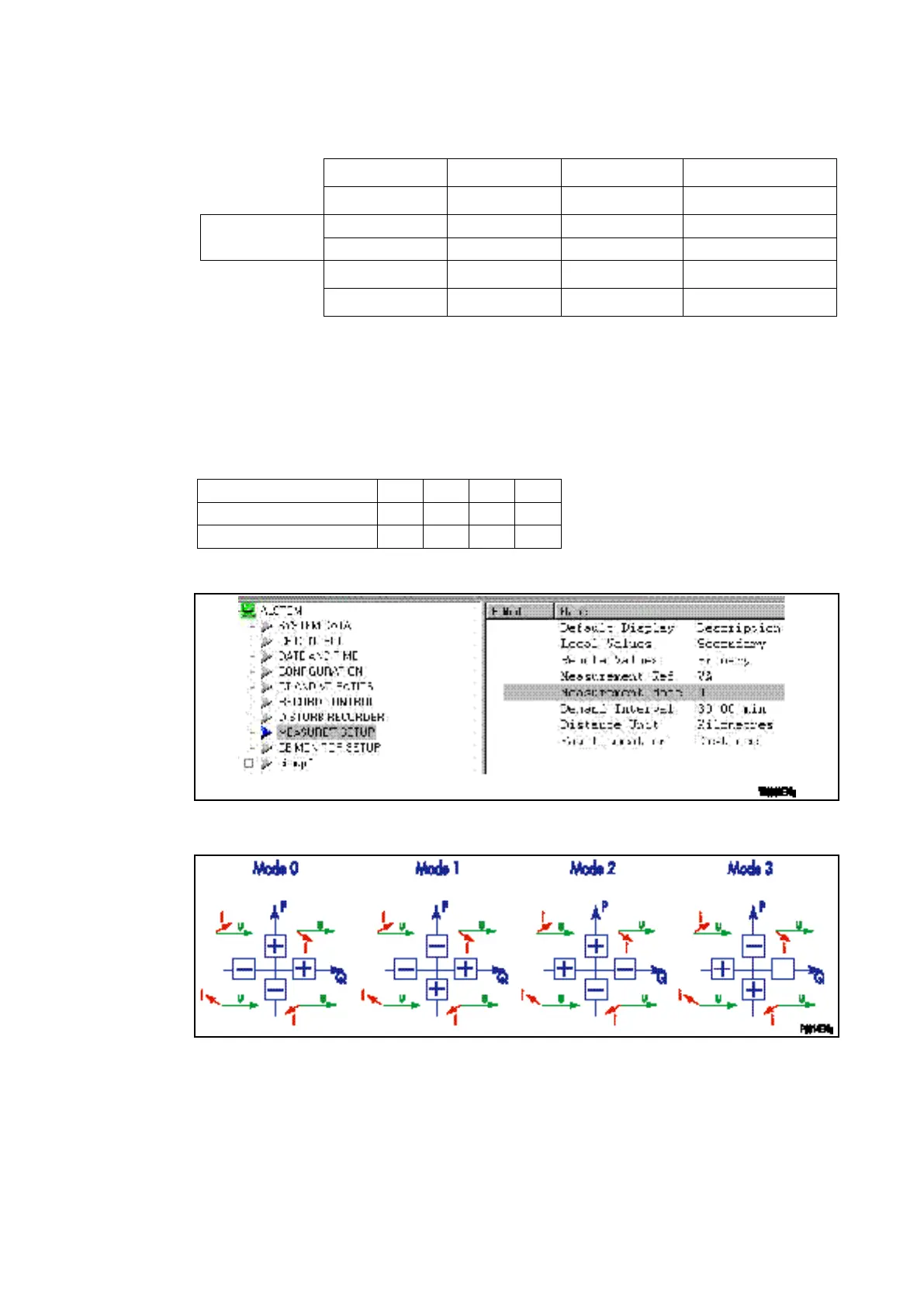

Check the polarisation of the protection: inject a three-phase symmetrical load according to
the following table:
IA IN 20°
Currents IB IN -100°
TEST 2
IC IN +140°
VAN 57 V 0°
Voltages VBN 57 V -120°
VCN 57 V +120°
• If one phase is missing the output Fuse Failure alarm will pick up & the LED general
alarm on the front panel will light up (see Fuse Failure description in section
P44x/EN AP)
• According to the chosen measurement mode, the following is obtained:
(MiCOM S1 Agile Measurement setup/Measurement mode):
Measurement mode 0 1 2 3
P + - + -
Q - - + +
Selected in MiCOM S1 Agile by:
Figure 4:
Figure 5:
• Check the signs of values P, Q to LCD ("Measurements 2") – settable with LCD (see
Figure 4)
The primary side orientation remains to be achieved (repeat previously points with a primary
injection)
