5.1 AVAILABLE TABS
The Configuration Utility contains the following functions:
Events – View the current state of the unit events.
Measurements – View the value of all the measurements.
Configurations – A list of configurations that can be viewed or modified.
Plots – Measurements can be select and plotted in real time.
Event Log – Provides the capability to enter a date/time period and the events logged for
that period will be displayed.
History – A start and end time are entered and a measurement selected. This
measurement can then be plotted or listed in a tabular format for that period.
5.2 MAIN MENU FUNCTIONS

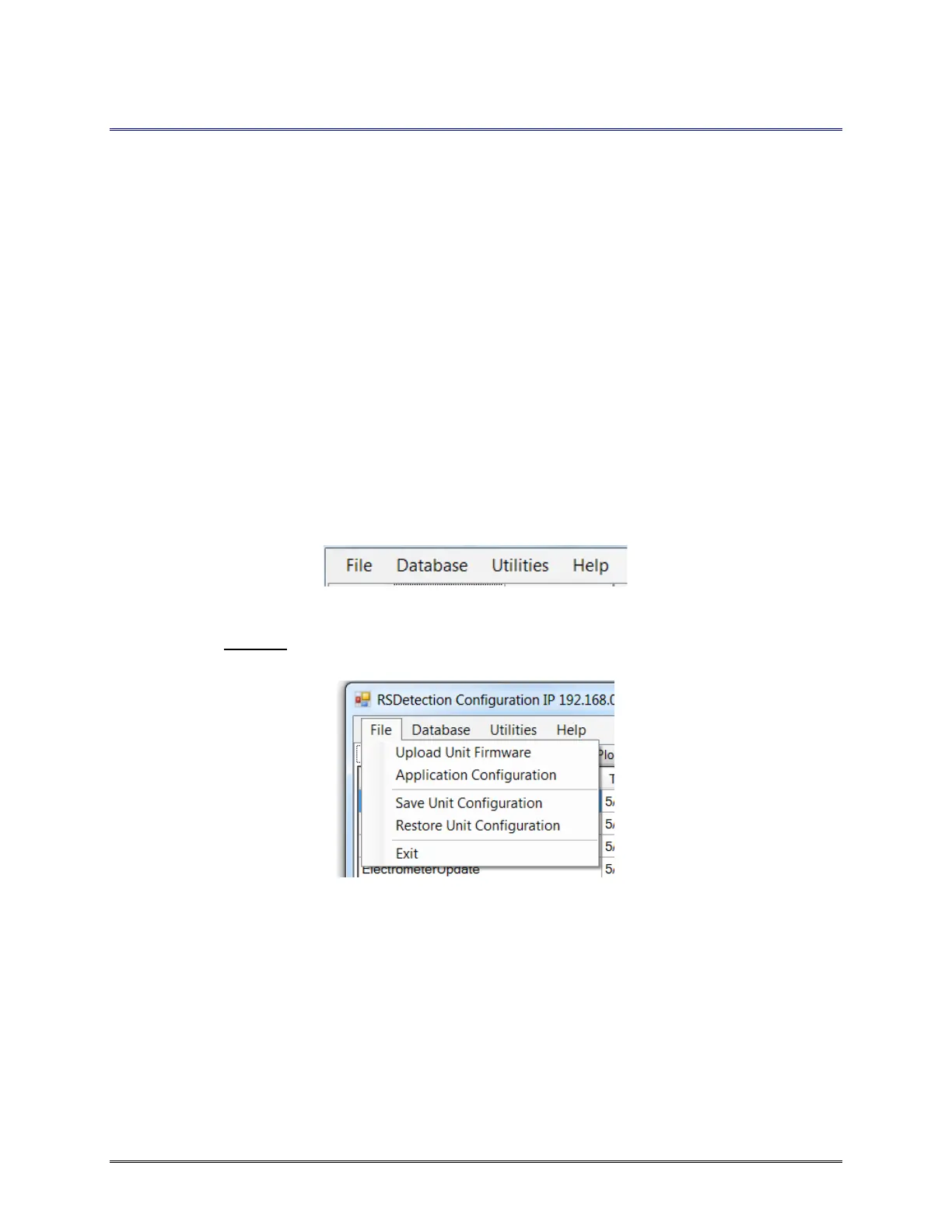

A menu bar is located in the upper portion of the screen and is shown in the Figure 13.
Figure 13 Main Menu
5.2.1 File Menu
Figure 14 File Menu
Upload Unit Firmware – Firmware can be loaded into the unit using this menu selection. Selecting
this item displays a File Selection dialog box to select a file containing the firmware update. This is
a .cab file supplied by the manufacturer and when selected using this dialog box, it is copied on to
the RSDetection file system. In order for the update to take effect, the unit must be power cycled,
at which time the .cab file will be unpacked and the firmware copied to the proper location.
Reference the Firmware section under Field Installation for a more detailed procedure.
