RSDetection

User’s Manual

Page 63

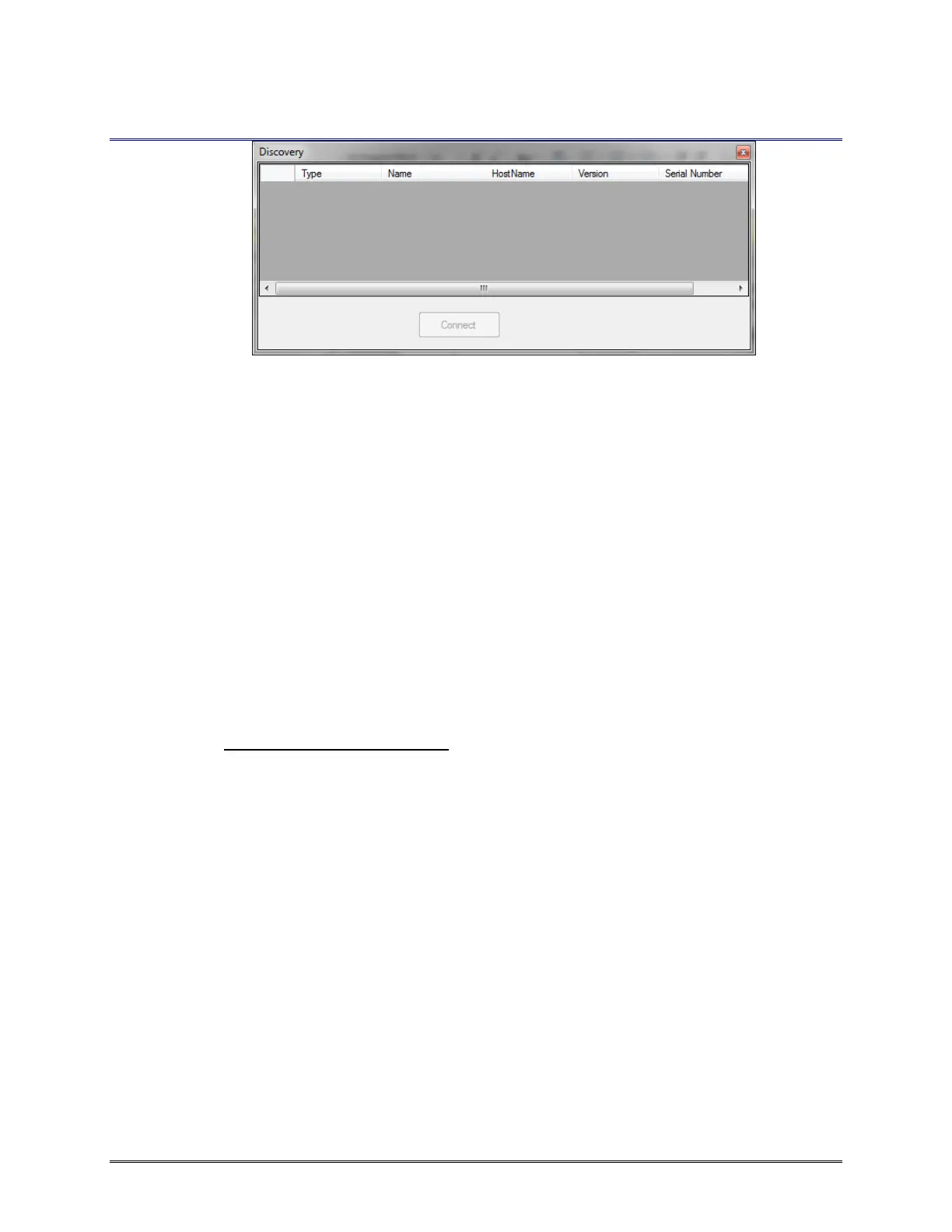

Figure 39 Discovery - No Units

There are two possible solutions for this problem:

1) Configure the network router to allow UDP broadcast packets. If this is not possible

option 2 will have to be done.

2) Connect the RS Detection unit to the PC via the USB B connection (forget Ethernet for a

moment). From the Configurations tab go to RSDetectionConfiguration. Set the

“UseStaticIPAddress” to true and type the desired unit’s IP Address. Hit “Update.”

Restart the unit with the Ethernet connected. Add the following flag to the RS

Detection Configuration Utility’s shortcut : /ipaddress=X.X.X.X. Where X.X.X.X is the IP

Address of the unit. Using this option bypasses the discovery process. If for some

reason the user has to change the default TCP communications port on the RS

Detection unit, the /ipaddress flag can also take IP Address and port:

/ipaddress=X.X.X.X:<port number>. By default the TCP communications port number is

3010.

8.2.2 No Measurements or Plots Update

This problem occurs when the network firewall or PC firewall is blocking the messages

being sent from the RS Detection Unit. To see if the windows firewall is the problem the

user can disable it temporarily by going to Start->Control Panel->System and Security-

>Windows Firewall. On the left-hand panel select “Turn Windows Firewall on or off”. Select

“Turn off Windows Firewall (not recommended)”. Select ok to see if this fixes your problem.

If this does not then the problem is with the network configuration. Please work with your

local network administrator to resolve the issues.

If disabling the windows firewall fixes the problem then the network configuration is not

the problem. The problem is your windows firewall is blocking the RS Detection

communication. Follow these steps to resolve the issue:

1) Re-enable the windows firewall. Click Start->Control Panel->System and Security-

>Windows Firewall. On the left-hand panel select “Turn Windows Firewall on or off”.

Select “Turn on Windows Firewall”. Select OK.

2) Still in the Control Panel->System and Security->Windows Firewall select “Allow a

program or feature through Windows Firewall” on the left-hand panel.
