RSDetection
User’s Manual
Copyright © 2016 General Electric Company. All Rights Reserved S131-200-UM Rev A
Page 29

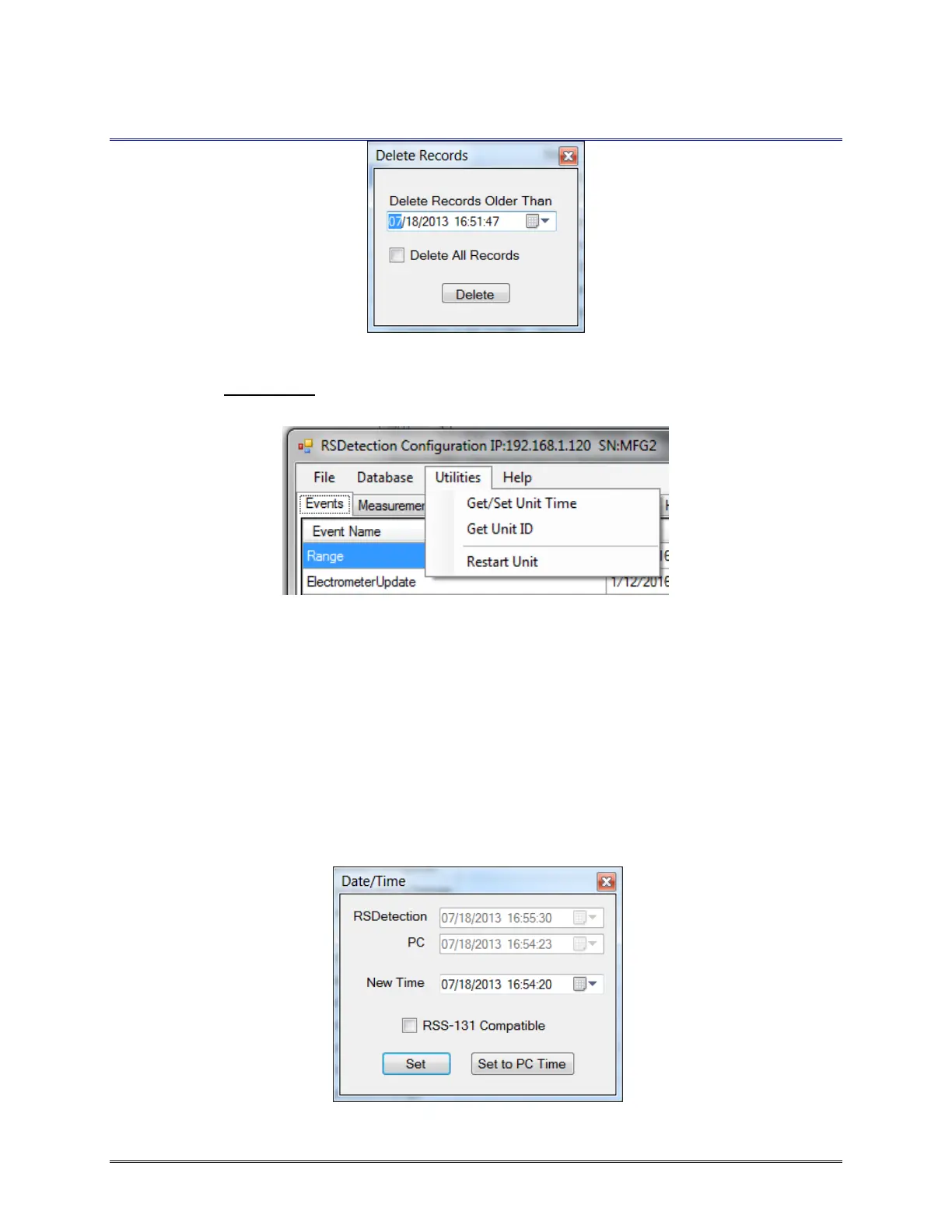

Figure 18 Delete Records Dialog Box
5.2.3 Utilities Menu
Figure 19 Utilities Menu
Get/Set Unit Time –Sets the date and time of the unit as shown in Figure 20.
There is a check box labeled RSS-131 Compatible located in the center of the
dialog. This should only be checked if the unit is operated in legacy mode where
the older commands are used.
The reason for the optional selection is that the older commands are not time
zone aware while the new commands are. For a more detailed discussion refer
to the Time Zone section of the manual.
There is also a separate button, Set to PC Time, which is a shortcut that enters
the host PC time into the Data field and sends the command.
