GE RSDetection RS-S131-200-ER0000 User Manual

RSDetection
User’s Manual
Copyright © 2016 General Electric Company. All Rights Reserved S131-200-UM Rev A
Page 39
g
5.3.3 Configurations Tab
Displays the current configuration of various components of the unit. RSDetection is
installed with default configurations which can be customized.
1. Click the Configuration tab to display the Configuration screen. A list of
configurations is displayed.
2. A dropdown menu in the upper-left portion of the screen can be used to
limit the number of displayed configurations. This filtering is done by
category. The following categories can be selected:
 Scalar Measurements
 Composite Measurements
 Events
 Alarm Events
 Serial Ports
 System
3. Once selected, a list of configurations display on the screen.

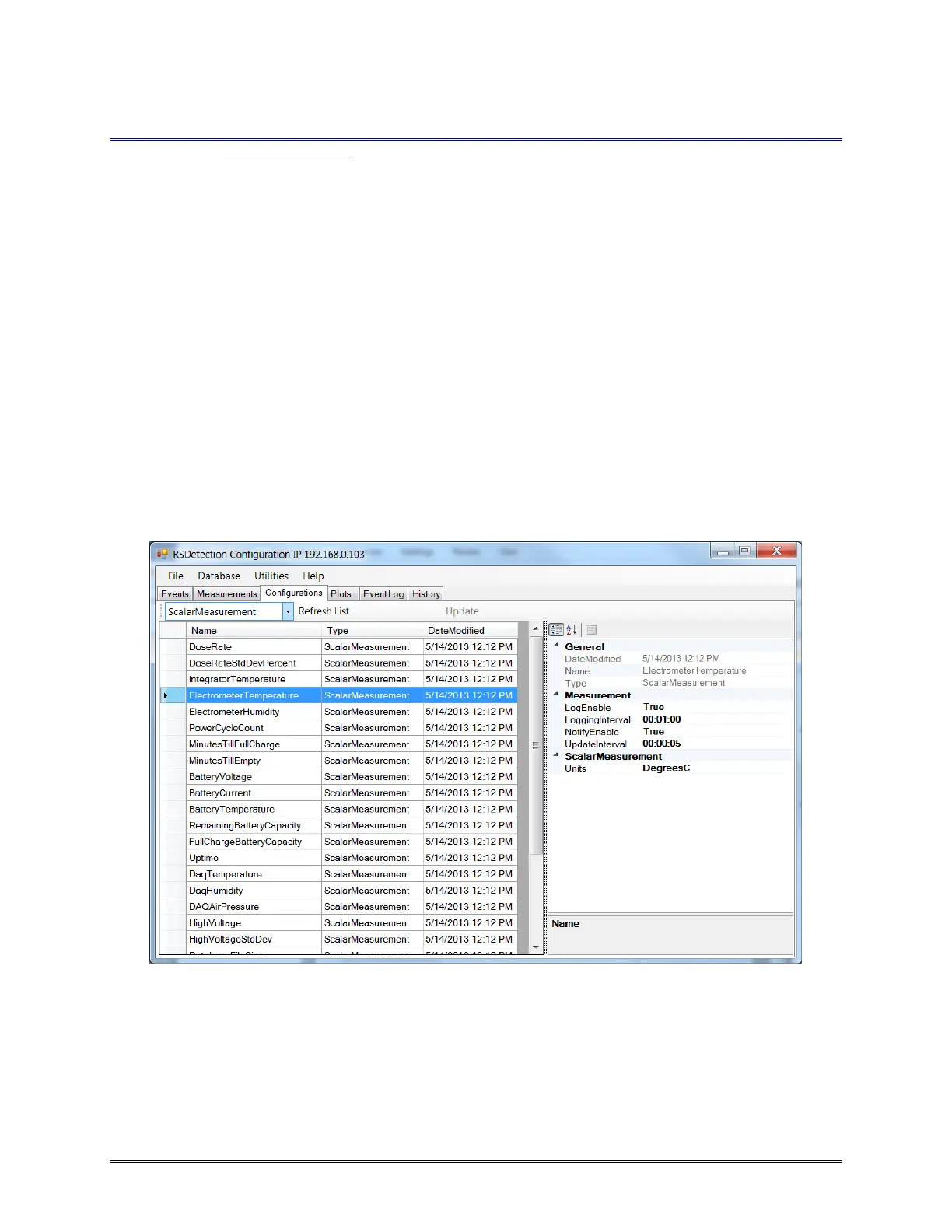

Figure 24 Configurations Tab On Electrometer Test Screen
4. To view all the configurations, simply scroll through the list or click the
down arrow next to drop-down box above the list of configurations.
