RSDetection
User’s Manual
March 2016 S131-200-UM Rev A
Page 40

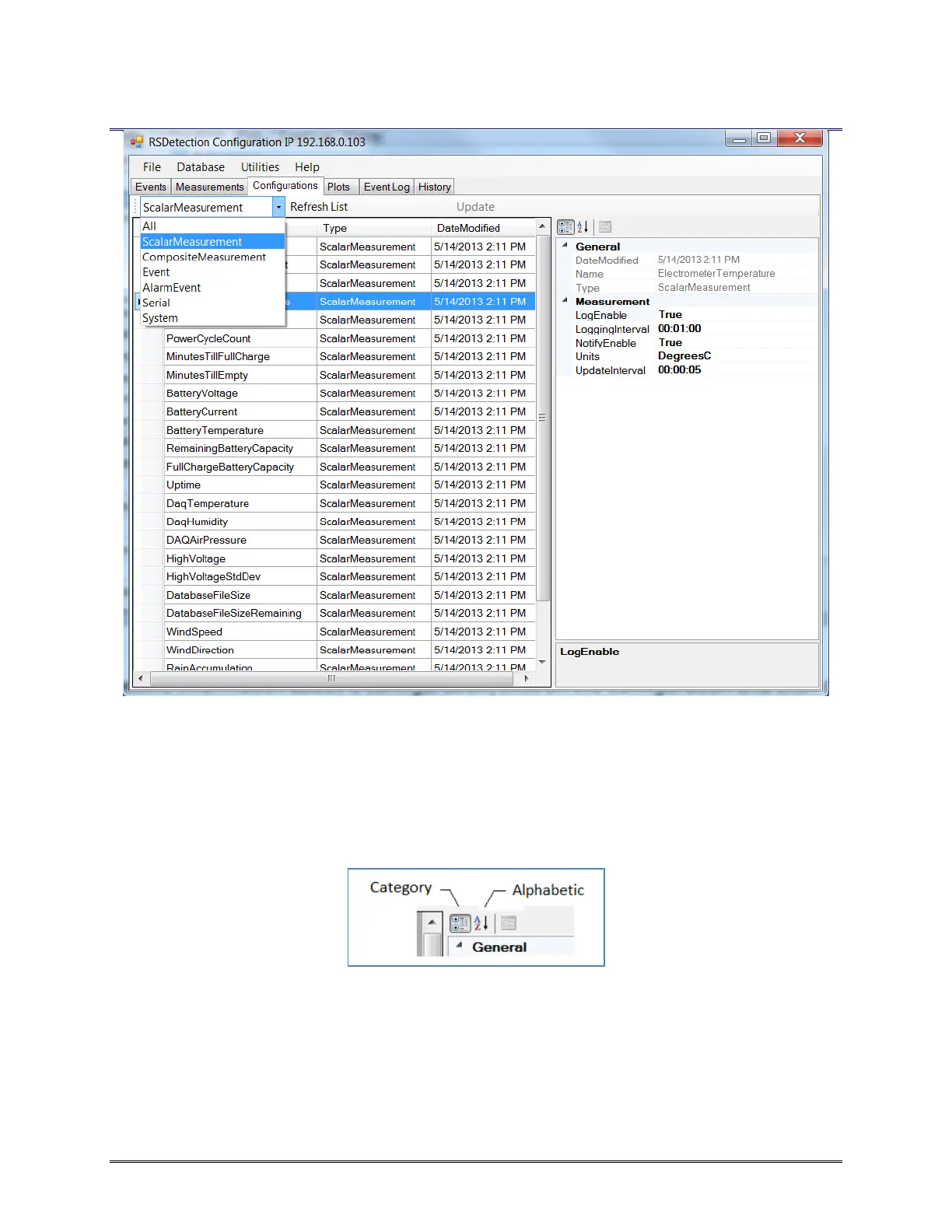

Figure 25 Configuration Types
5. To view specific information about a configuration, click on the
configuration and then click the arrow to the left of the configuration name.
The parameters for the selected item are displayed in the property grid on
the right side of the screen. The properties are organized by either category
or alphabetic order. To change between these 2 displays, select the
appropriate item on the property grid as illustrated in Figure 26.
Figure 26 Property Grid
6. To change a variable definition of a specific parameter, click its name. If it is
a selection box, a list of choices will be presented. If a text field, the value
must be typed into the text box.
Configuration types, parameters, variables, and their descriptions, along with variable
default and optional settings are listed in Table 8 through Table 16.
