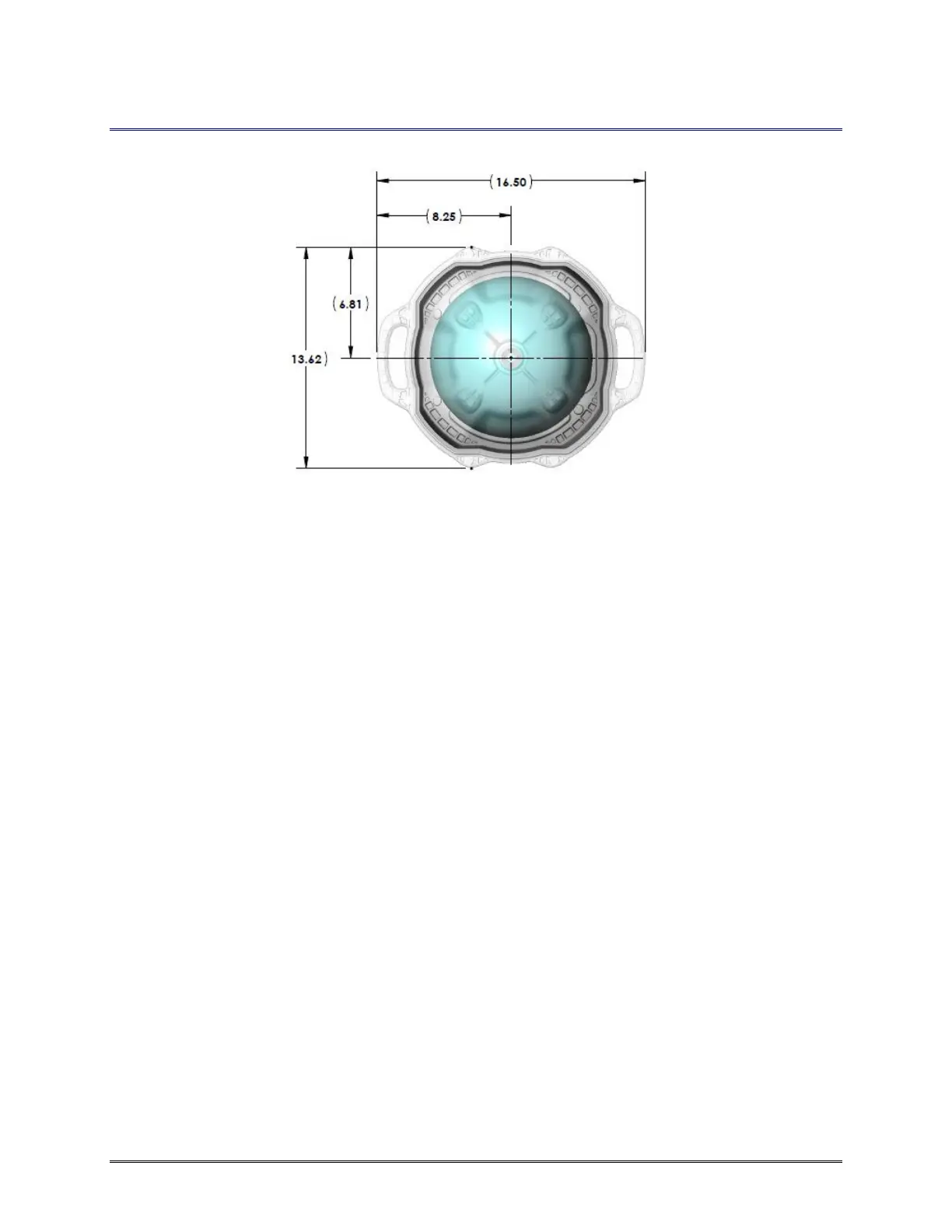

Figure 31 RS Detection Top View Dimensions Relative to Center of Ion Chamber (inches)
4. Start from the plumb line and measure in a direct line the following increments for the
value of “D”:
 12’
 14’
 16’
 18’
5. Attach the RSDetection to the network or connect a USB cable between the PC and the
units USB (B) connector.
6. Set the radiation source at the 10’ mark at a height equal to the chamber centerline. Refer
to Figure 32 for setup.
