RSDetection
User’s Manual
Copyright © 2016 General Electric Company. All Rights Reserved S131-200-UM Rev A
Page 51
6.2 TEST EQUIPMENT AND SET-UP
The following table and procedure provide the necessary equipment and set-up to perform the
sensor calibration test.
Table 17 Test Equipment and Materials
Monitors and averages the RSDetection output
Radiation source and holder
Approximately 25’ by 6’.
Should allow enough room to keep the HPIC at least 5’
from the wall to reduce reflected radiation effects.
Adjustable height of at least 60” (1.5 m)
Network connection or USB cable connected to host
computer
1. Attach the unit to the tripod.
2. Adjust the tripod height to approximately 60” (1.5m) from the floor to the center of the
chamber.
3. Hang the plumb line from a point under the unit’s chamber housing on the chamber
centerline to the floor. The below figure illustrates how to determine the chamber’s center
on the bottom of the housing.

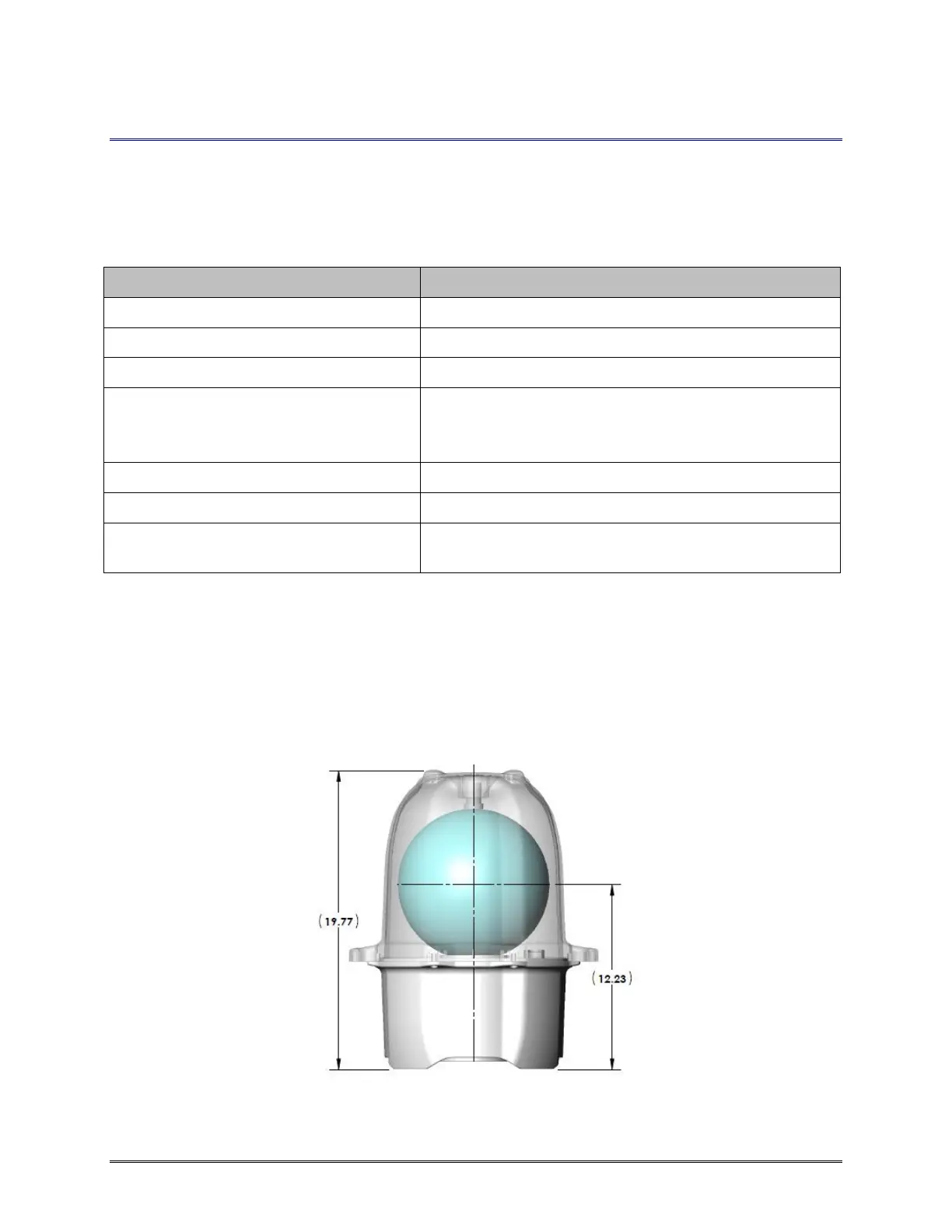

Figure 30 RSDetection Side View Dimensions Relative to Center of Ion Chamber (inches)
