Main Base, IC200CHS111
Expansion Base, IC200CHS112
Relay-Style Interposing I/O Terminals
Main Base – IC200CHS111
The Interposing Relay Base has a connector (J1) for attaching a cable from the Connector-
Style I/O Carrier (IC200CHS003) and 50 box-style terminals for field I/O wiring and
power connections. The Interposing Relay Base also has an expansion connector (J2) that
can be used to attach to an Interposing Relay Expansion Base (IC200CHS112).

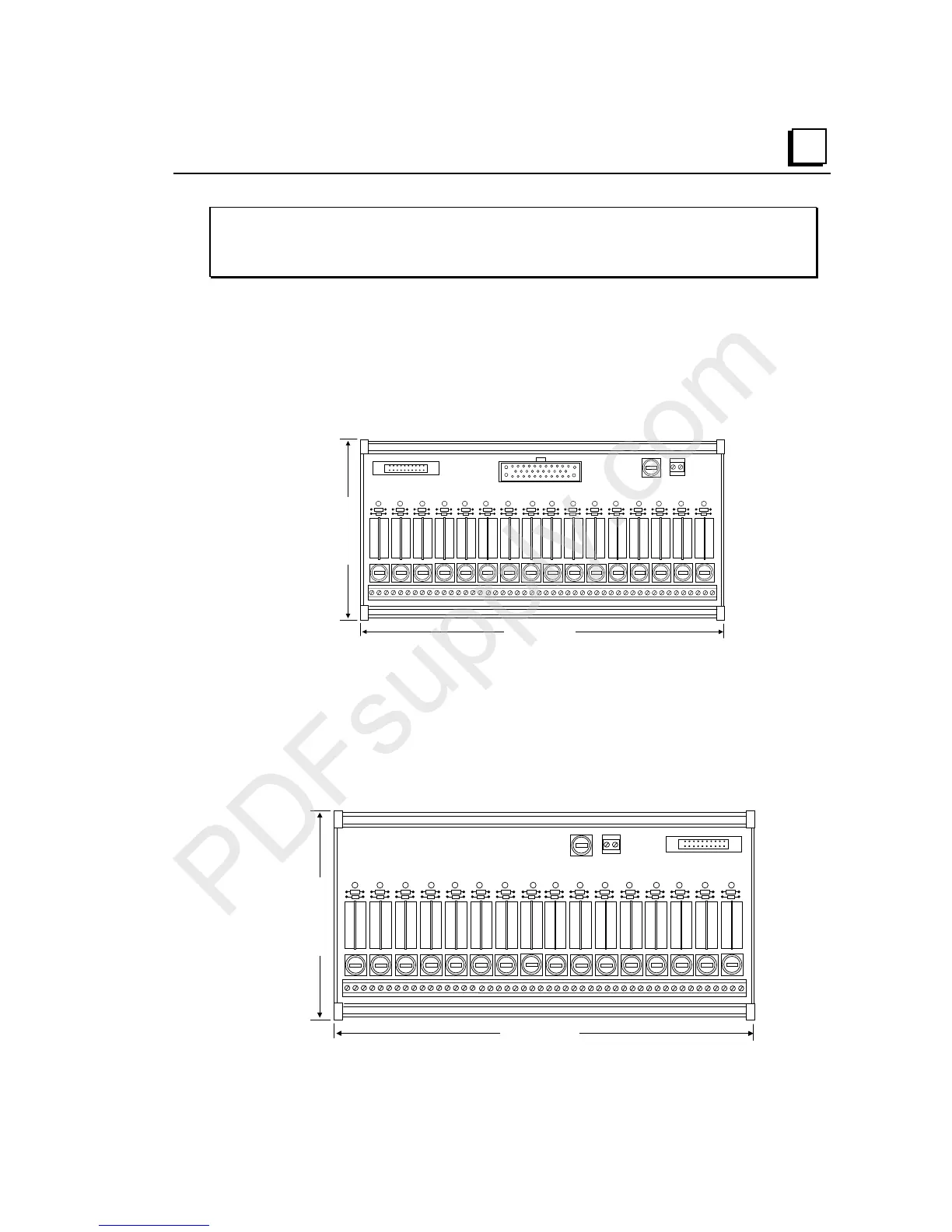

252mm
9.95in
126mm (4.95in)
J1
J2
A16 A15 A14 A13 A8 A7 A6 A5 A4 A3 A2 A1A12 A11 A10 A9
A16 A15 A14 A13 A8 A7 A6 A5 A4 A3 A2 A1A12 A11 A10 A9
Expansion Base – IC200CHS112
The Interposing Relay Expansion Base has a connector (J2) for attaching a ribbon cable to
the expansion connector of the Main Base (IC200CHS111) and 50 box-style terminals for
field I/O wiring and power connections. The Expansion base includes a ribbon cable for
connecting the expansion base to the main base.
252mm
9.95in
126mm (4.95in)
J2
B16 B15 B14 B13 B8 B7 B6 B5 B4 B3 B2 B1B12 B11 B10 B9
B16 B15 B14 B13 B8 B7 B6 B5 B4 B3 B2 B1B12 B11 B10 B9
