4-16 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
4
IC200CHS022
Compact Box-Style I/O Carrier
Field Wiring Terminals
Each terminal accommodates one solid or stranded AWG #14 (avg. 2.1mm
2
cross section)
to AWG #22 (avg. 0.36mm
2
cross section) wire, or two wires up to AWG #18 (avg.
0.86mm
2
cross section).
A1 A2 A3
A4
A5 B5 B6B3 B4B1 B2A6
A7 A8
A9
A10 B12B9 B10B7 B8A11 A12
A13
A14
A15
A16 B15 B16B13 B14
B17 B18A17 A18
B11
The carrier accommodates current levels up to 2 Amps per point or 8 Amps per each
power and ground, and a voltage range of up to 264 VAC. Voltage transients up to 300
VAC will not damage the carrier.

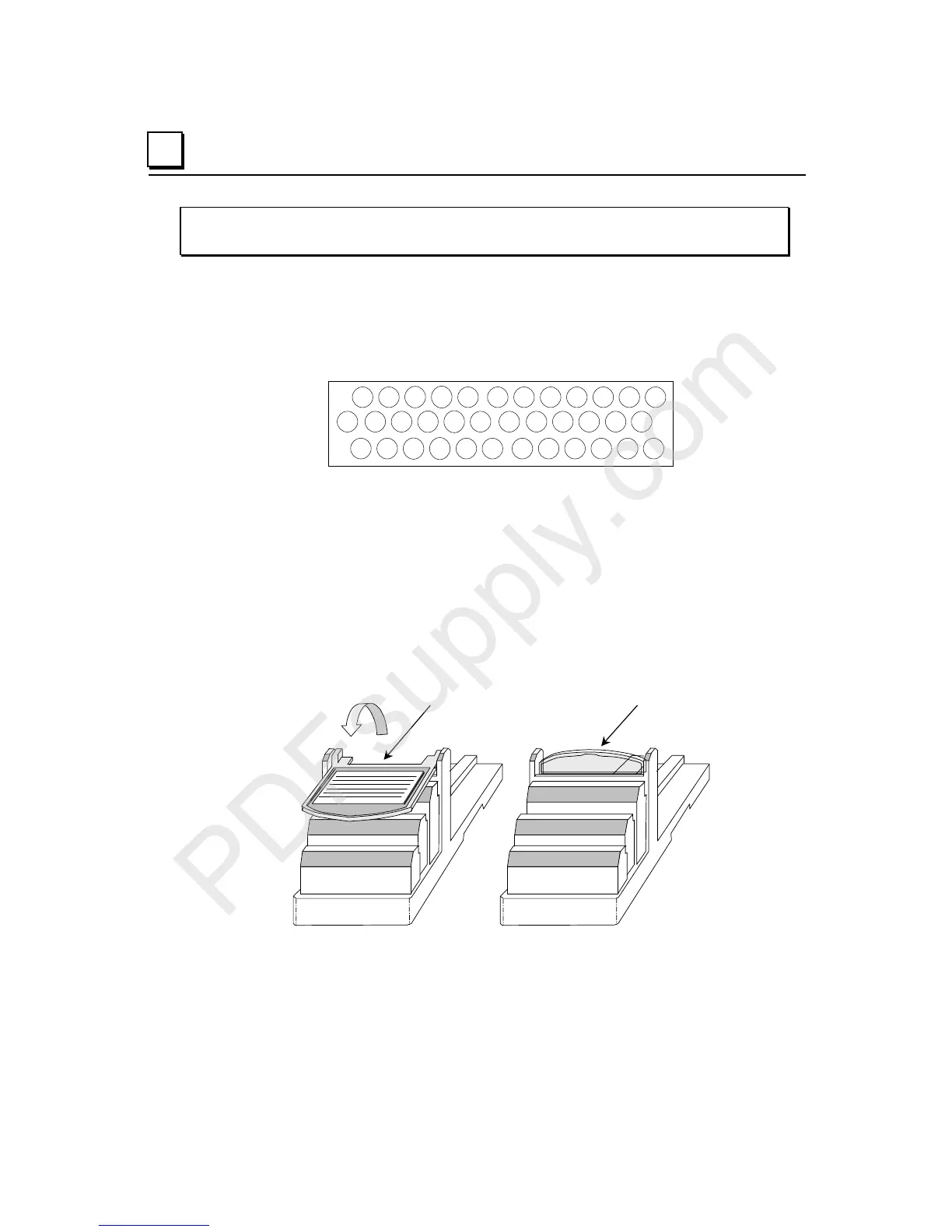

Wiring Card Holder
The Compact I/O Carrier has a built-in card holder that hinges down over the terminal
wiring. The wiring card provided with the I/O module can be inserted in the holder.
During system operation, the card holder should be in the retracted position.
Card Holder
Retracted
Wiring Card in
Holder, Hinged
Over Terminals
