3-12 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
3

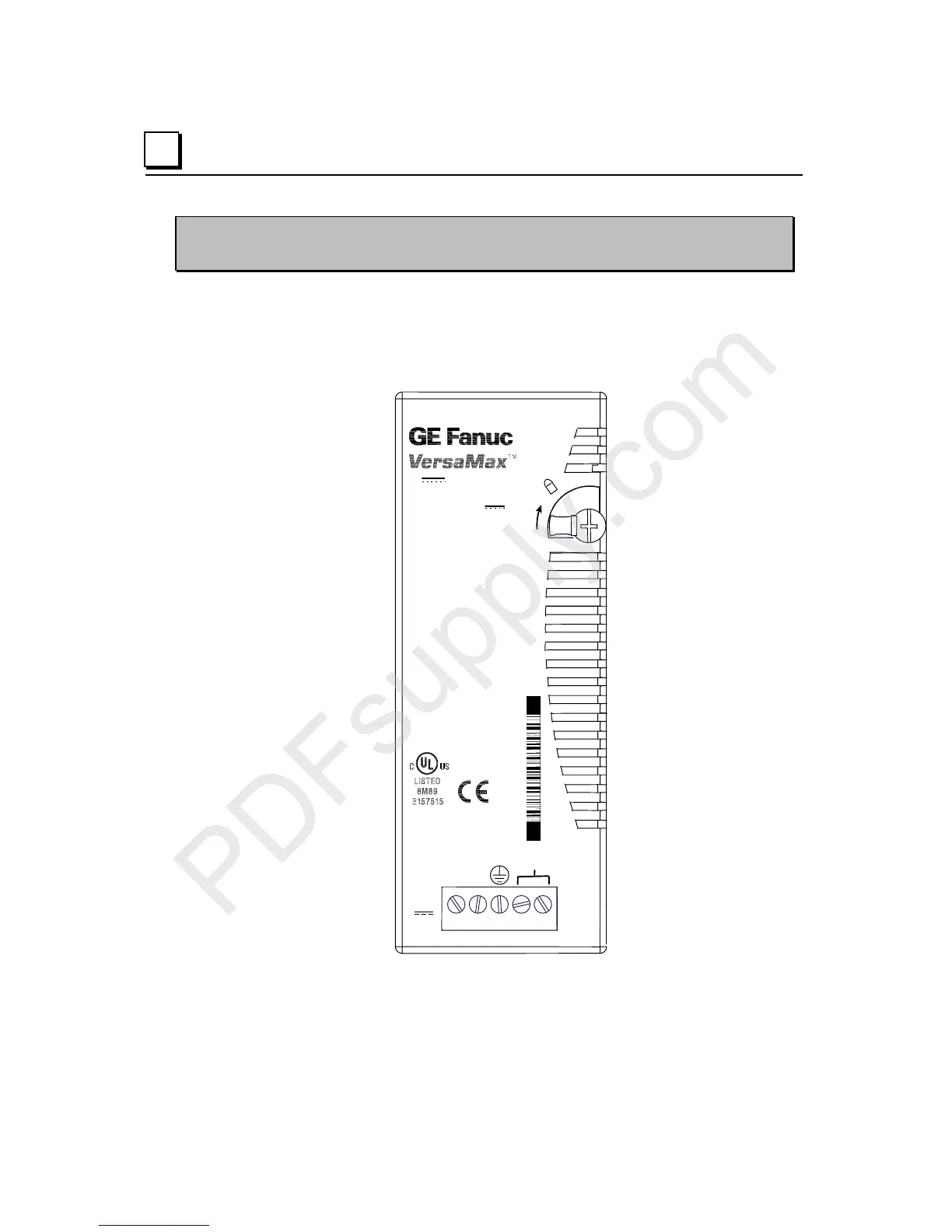

IC200PWR202
12VDC Expanded 3.3 V Power Supply
12VDC Expanded 3.3V Power Supply IC200PWR202 provides backplane power for
CPU, NIU, and I/O modules. It supplies up to 1.5 Amps output current via 3.3 volt and 5
volt outputs, with up to 1.0 Amp on the 3.3 Volt output. Module backplane current
consumption is summarized in appendix C.
IC200PWR202
VDC
+
INPUT
-
0C Ta 60C
Ambient 60C
Ex nV II T4 Demko No
GROUP IIC T4A
CLASS I ZONE 2
CLASS I ZONE 2
Ex nA IIC T4
MADE IN USA
12 VDC, 11 W
POWER SUPPLY
EXPANDED 3.3VDC
GROUPS ABCD
Temp Code T4A
CLASS I DIV 2
IND CONT EQ FOR HAZ LOC
POWER BEFORE
WHEN IN HAZARDOUS
LOCATIONS TURN OFF
REPLACING OR WIRING
EXPLOSION HAZARD
MODULES.
WARNING:
NOT
USED
When mounted on the CPU or NIU module, it serves as the main power supply for the
station. It can also be used as a supplemental power supply when mounted on a Power
Supply Booster Carrier. Refer to the Power Supply Booster Carrier section of chapter 4 for
more information.
