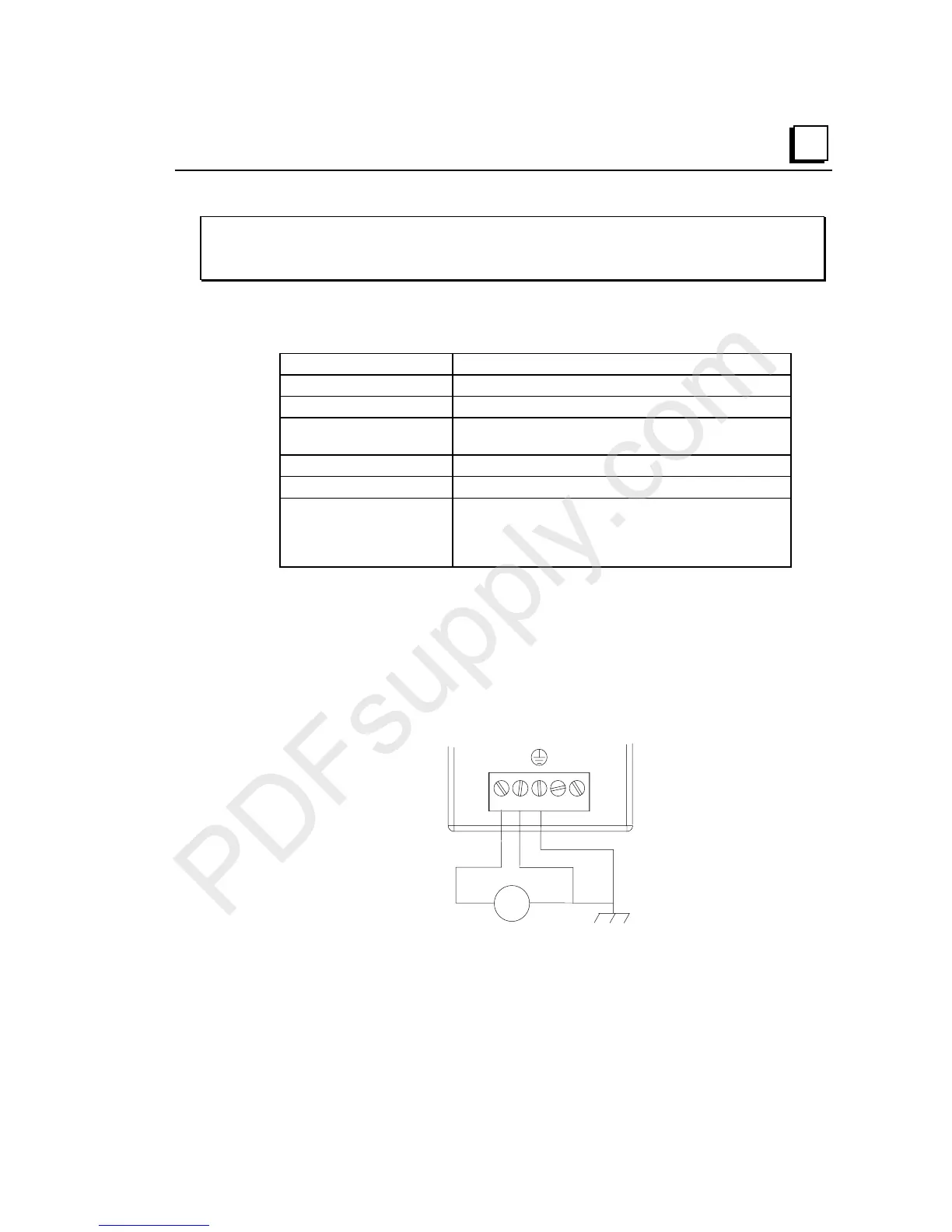

GFK-1504K Chapter 3 Power Supplies 3-13

IC200PWR202

12VDC Expanded 3.3 V Power Supply

Specifications

Input Voltage

9.6 to 15VDC, 12VDC nominal

Input Power

11W

Holdup Time

10ms

Inrush Current

25A at 12VDC

30A at 15VDC

Output Voltage

5VDC, 3.3VDC

Protection

Short circuit, overload, reverse polarity

Output Current

Total

3.3VDC Output

5VDC Output

1.5A maximum

1.0A maximum

(1.5A - I

3.3V

) maximum

The total output current should not exceed 1.5A. For example, if 3.3V @ 1.0A is required,

0.5A is available on the 5V output.

Wiring

DC- must be grounded to frame / earth ground. DC- is grounded to frame internally in the

Power Supply. As a result, floating power supplies cannot be used.

DC+ DC-
