7-18 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
7
IC200MDL241
Input Module, 240VAC16 Points
Discrete Input Module IC200MDL241 provides two groups of 8 discrete inputs.
Inputs are positive logic or sourcing-type inputs; they receive current from AC input
devices and return the current on the common. Input devices are connected between
the input terminals and common terminals.

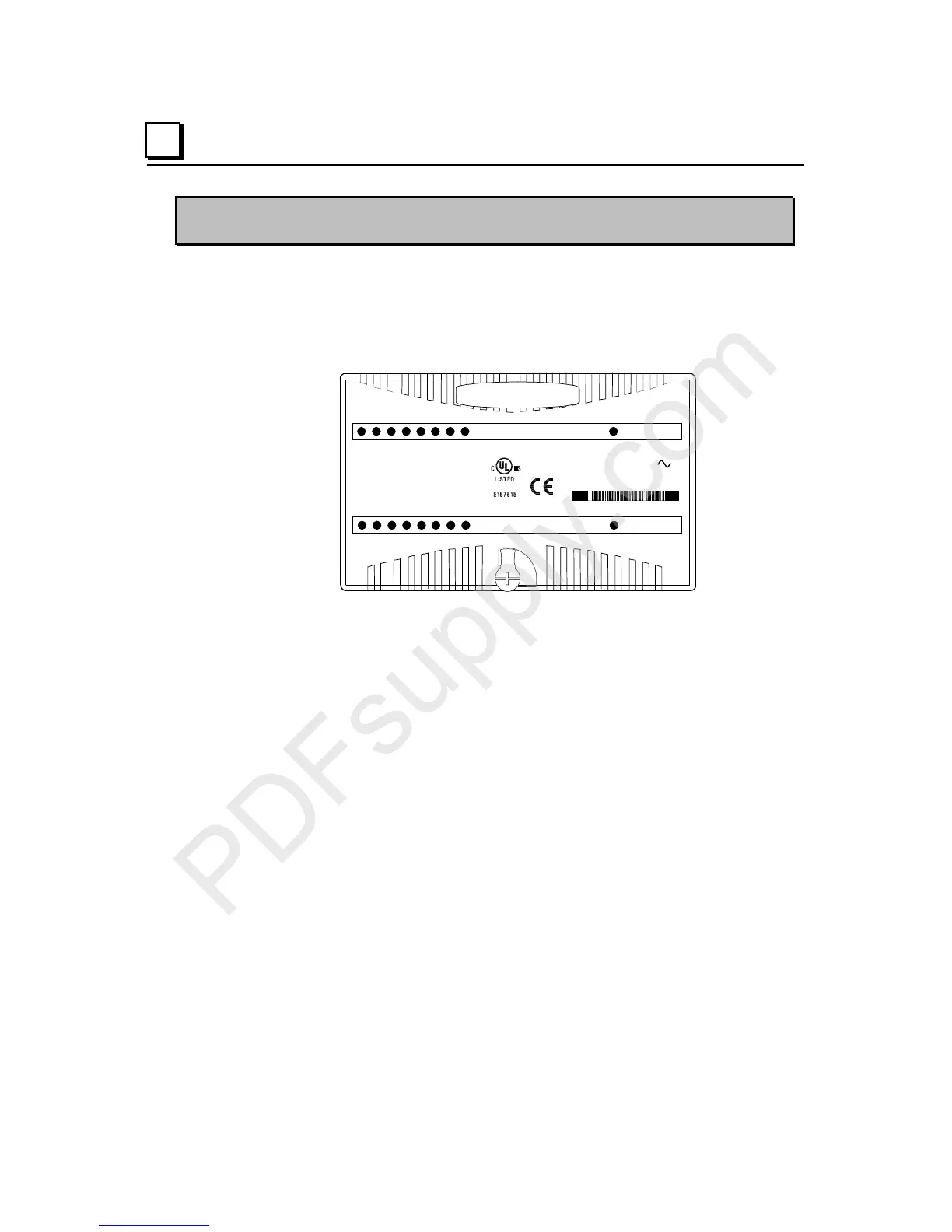

OK
1234567 831
OK
IC200MDL241
INPUT 240VAC
GRP 16PT
12345678
910111213141516
I
I
6M89
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4 Ambient 60C
CLASS I ZONE 2 GROUP IIC TA4
CLASS I ZONE 2 Ex nA IIC T4 OC
≤
Ta
≤
60C
Ex nV T4 Demko No
Power for module operation comes from the backplane.
Intelligent processing for the module is performed by the CPU or NIU. The module
provides 16 bits of discrete input data.
LED Indicators
Individual green LEDs indicate the on/off state of each input point.
The green OK LED is on when backplane power is present to the module.
