GFK-1504K Chapter 2 Installation Instructions 2-15

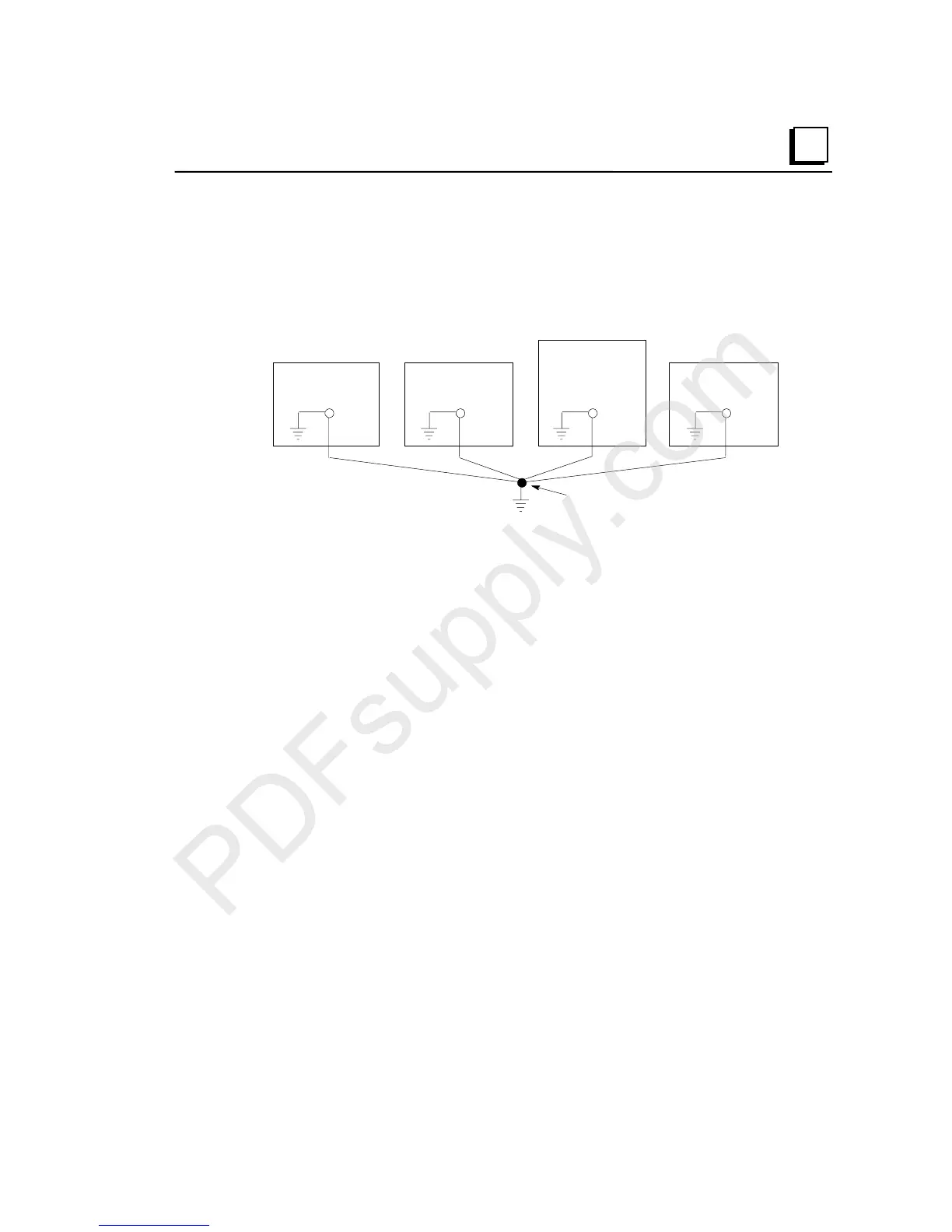

System Grounding

All components of a control system and the devices it controls must be properly grounded.

Ground conductors should be connected in a star fashion, with all branches routed to a

central earth ground point as shown below. This ensures that no ground conductor carries

current from any other branch.

Programming

Device

Each Terminal

Block

Motor Drives and

Other Electrical

Control

Equipment

Machinery

Earth

Ground

Central

Ground Point

Signal and power

connections not shown

The control panel and enclosure should also be bonded to the plant system ground per

code. Inadequate grounding may compromise system integrity in the presence of power

switching transients and surges.
