8-36 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
8

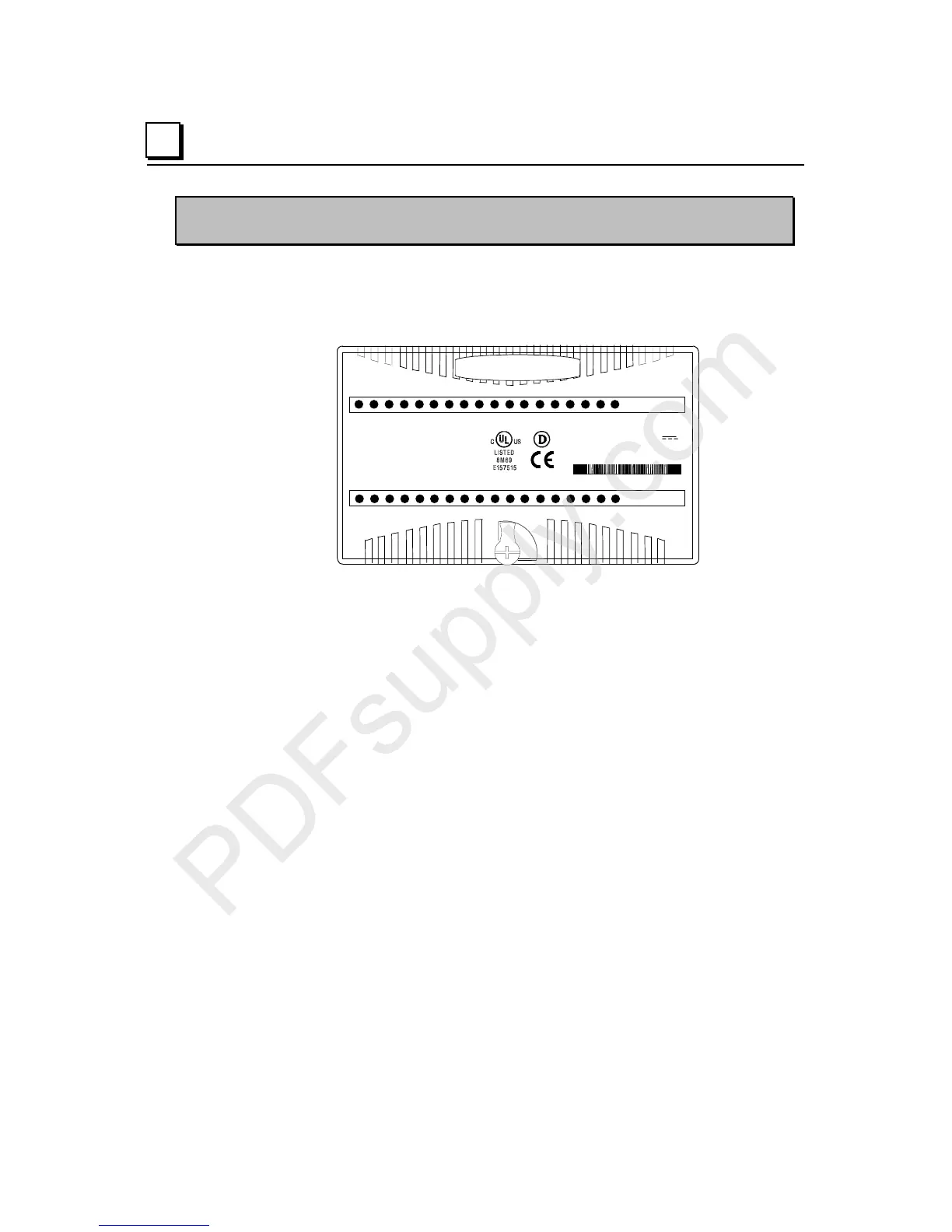

IC200MDL750
Output Module, 12/24VDC Positive Logic 0.5 Amp, 32 Points
Discrete output module IC200MDL750 provides two groups of 16 discrete outputs.
The outputs are positive or sourcing type outputs. They switch the loads to the
positive side of the DC supply and thus supply current to the loads.
1234567 831
FLD
OK
IC200MDL750
OUTPUT 12/24VDC
POS GRP .5A 32PT
OK
FLD
1 2 3 456 78910111213141516
Q
Q
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Ambient 60C
CLASS I ZONE 2 GROUP IIC
Ex nA IIC 0C
≤
To
≤
60C
Ex nV Demko No. 98Y. 125014
Note: 12V output functionality requires module version IC200MDL750B or higher.
An external DC power supply must be provided to switch power to the loads.
Intelligent processing for this module is performed by the CPU or NIU. The module
receives 32 bits of discrete output data.
LED Indicators
Individual green LEDs indicate the on/off state of the output points. Operation of
these LEDs is dependent on field power but independent of load conditions.
The green FLD PWR LED is on when field power is applied to the module.
The green OK LED is on when backplane power is present to the module.
