Conformance to Standards
Before installing VersaMax products in situations where compliance to standards or
directives from the Federal Communications Commission, the Canadian Department of
Communications, or the European Union is required please refer to GE Fanuc’s
Installation Requirements for Conformance to Standards, GFK-1179.
Thermal Considerations

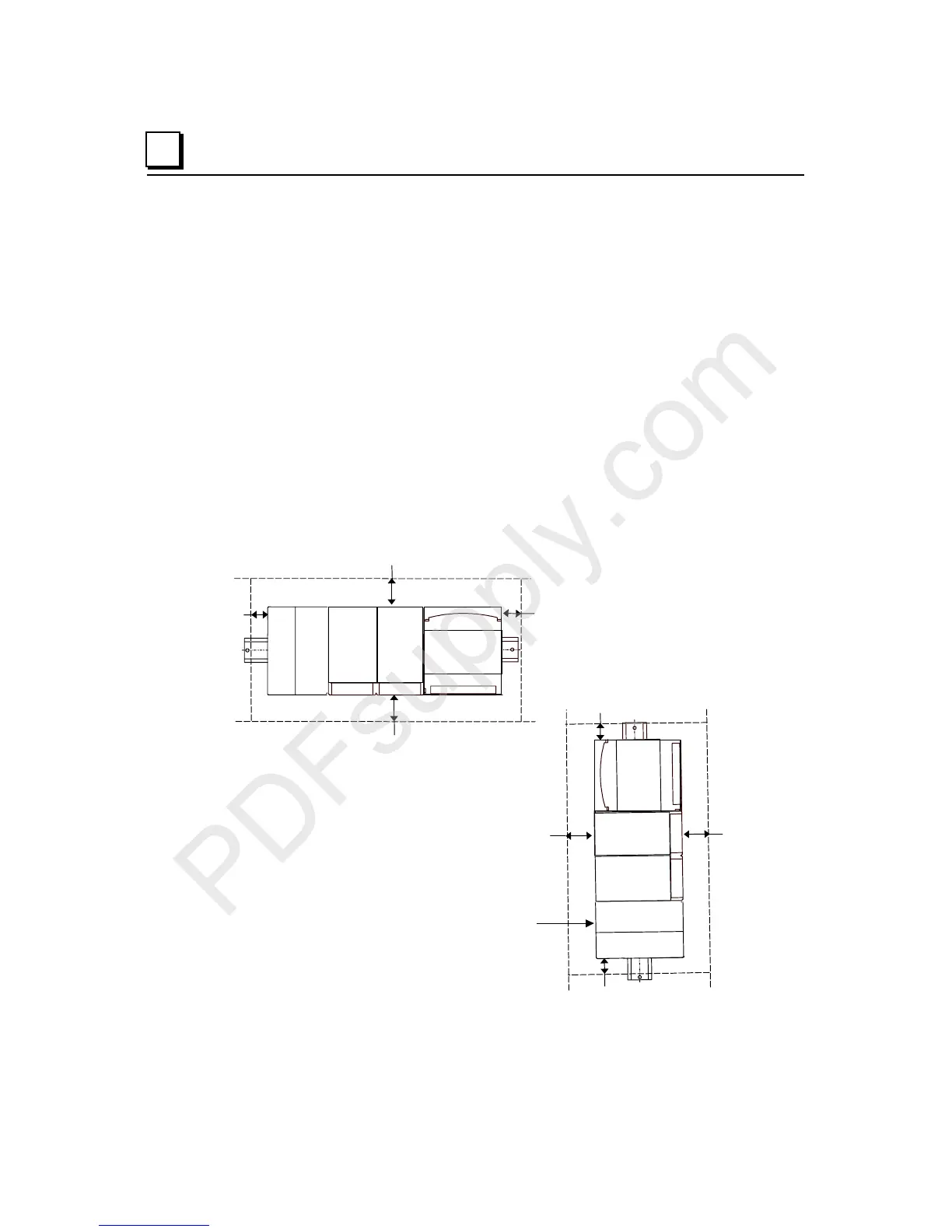

The thermal performance specified for modules in this manual requires a clearance of 2
inches (5.1cm) above and below the modules and 1 inch (2.54cm) on each side of the
modules as shown below, regardless of the orientation of the DIN rail.
When using a vertical DIN rail, the CPU or NIU module must be installed at the bottom.
Individual modules have may additional clearance requirements as shown in appendix A.
5.1cm
(
2.0in
)
2.54cm
(
1.0in
)
5.1cm
(2.0in)
2.54cm
(1.0in)
5.1cm
(2.0in)
2.54cm
(
1.0in
)
5.1cm
(2.0in)
2.54cm
(1.0in)
CPU or NIU
at Bottom
