2-18 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
2
Wiring for a Box-Style I/O Carrier or Spring-Style I/O Carrier
(IC200CHS002, IC200CHS005)
Field Wiring
Terminals
Each terminal on a Box-Style or Spring-Style I/O Carrier accommodates one solid or
stranded AWG #14 (avg. 2.1mm
2
cross section) to AWG #22 (avg. 0.36mm
2
cross section)
wire, or two wires up to AWG #18 (avg. 0.86mm
2
cross section). Use copper wire rated
for 90 degrees C. When inserting two wires in the same position, the wires must be the
same size and type (solid or stranded).
The I/O carrier can accommodate current levels up to 2 Amps per point or 8 Amps per
each power and ground, and a voltage range of up to 264 VAC. Voltage transients up to
300 VAC will not damage the carrier.
For a Box-Style I/O Carrier, recommended terminal torque is .37 to .45 ft-lbs.
The label provided with the module can be folded and inserted in the module’s transparent
door.

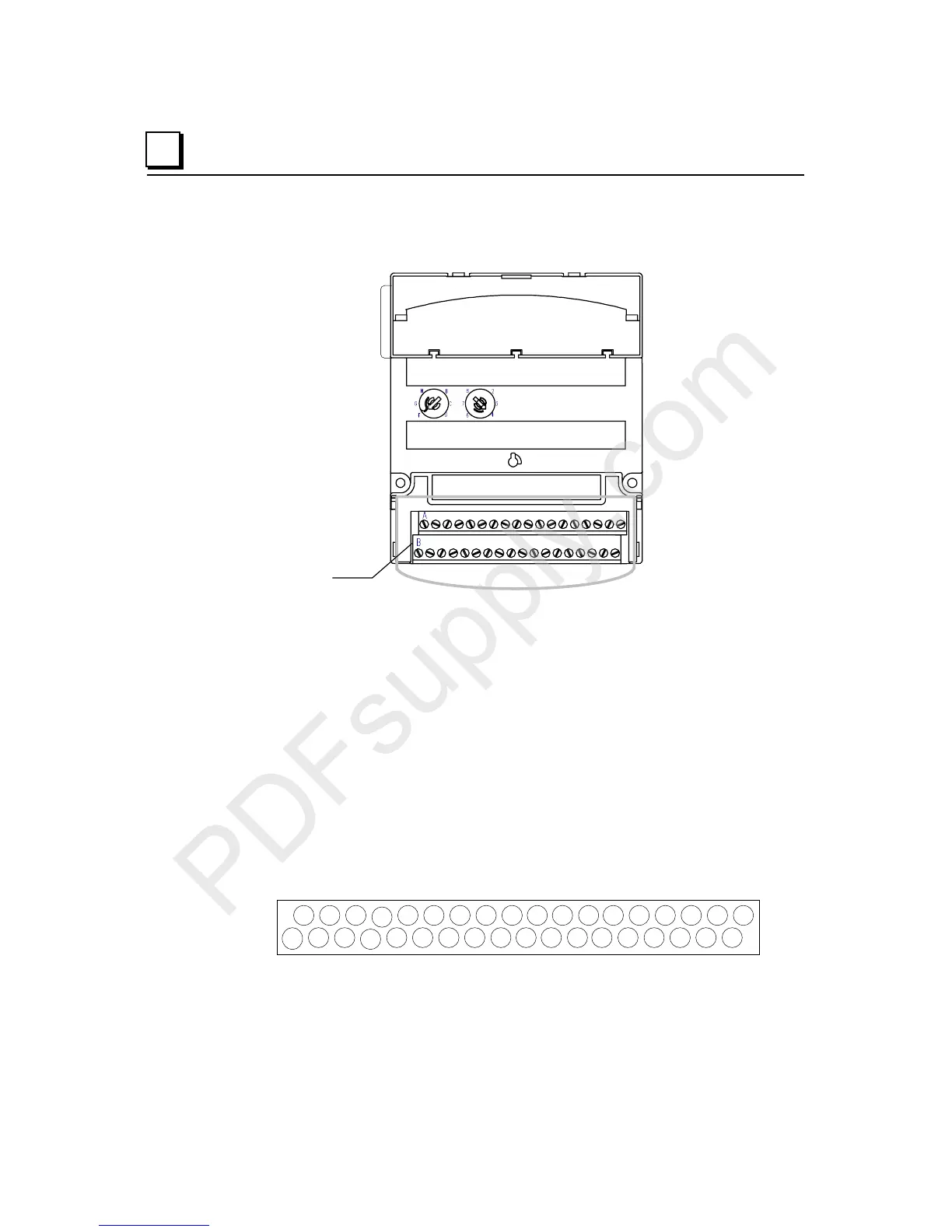

Terminal Numbering for a Box-Style or Spring-Style I/O Carrier
A1 A2 A3
A4
A5 A6 A7 A8 A9
A11
A12
A13
A14
A15 A16 A17 A18
A10
B2 B3
B4
B5 B6 B7 B8 B9
B11
B12 B13 B14 B15 B16 B17 B18
B10B1
