GFK-1504K Chapter 8 Discrete Output Modules 8-43

IC200MDL930

Output Module, Relay 2.0 Amp Isolated Form A 8 Points

Backplane Power Drain per Point

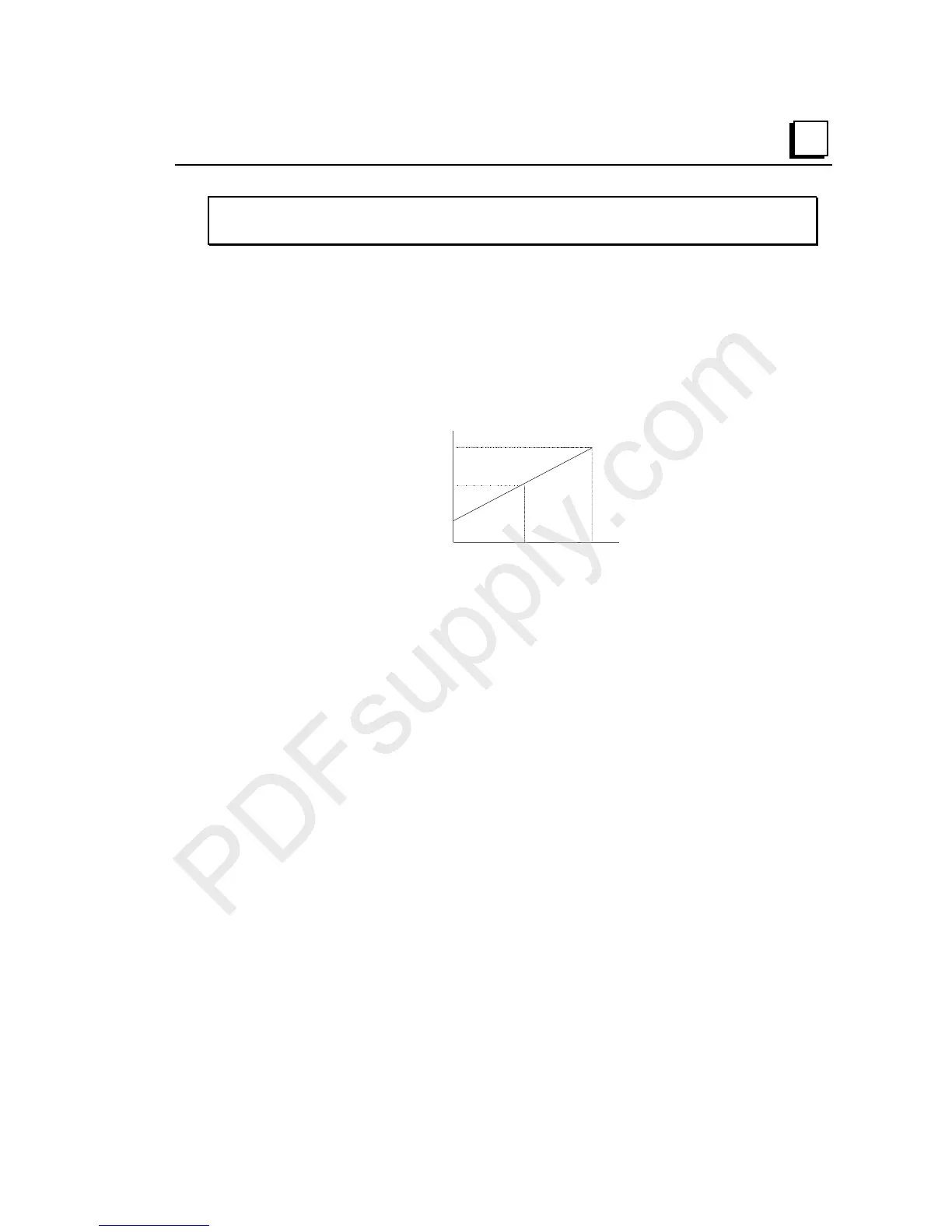

The module’s backplane 5 volt power requirement increases as the number of points

that are simultaneously on increases. The chart below shows the relationship

between the number of points on and the maximum current required.

mA = 13 + (28 x number of points on)

Number of Points On

Maximum Current Drawn from Backplane (mA)

245

128
