8-40 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
8

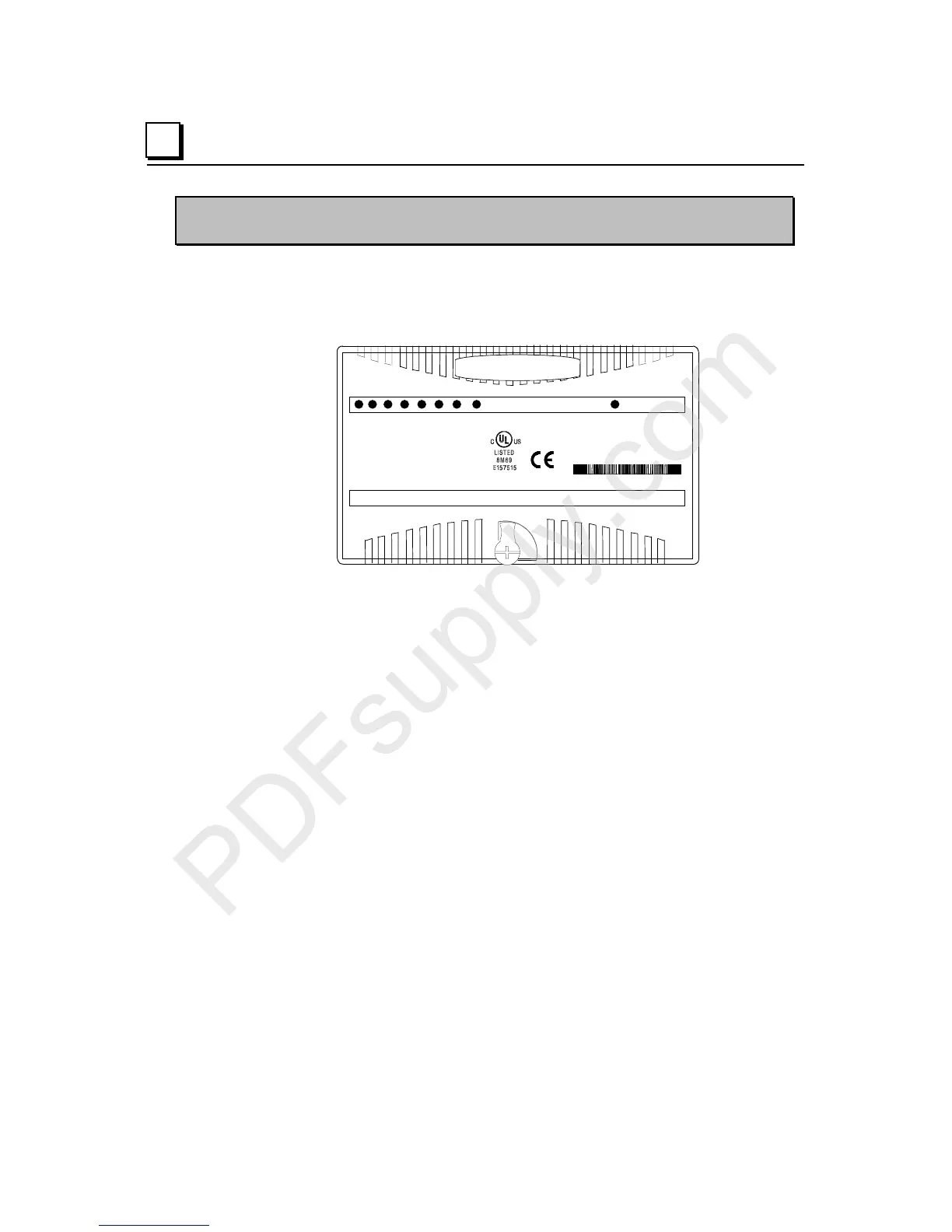

IC200MDL930
Output Module, Relay 2.0 Amp Isolated Form A 8 Points
Relay output module IC200MDL930 provides 8 individually-isolated Form A relay
outputs. The contact is closed when the host CPU is active and the corresponding
output logic bit is “1”.
1234567 831
IC200MDL930
OUTPUT RELAY
2A ISO FORM A 8PT
123 4 5 6 7 8
OK
Q
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4A Ambient 60C
CLASS I ZONE 2 GROUP IIC
Ex nA IIC T4 OC
≤
To
≤
60C
Ex nV T4 Demko No. 98Y. 125014
Power for module operation comes from the backplane. Loads must be powered by
an external source.
Intelligent processing for this module is performed by the CPU or NIU. The module
receives 8 bits of discrete output data.
LED Indicators
Individual green logic-side LEDs indicate the On/Off status of each output point.
Output LEDs are logic-driven and independent of the load conditions.
The green OK LED is ON when backplane power is present to the module.
