GFK-1504K Chapter 8 Discrete Output Modules 8-39

IC200MDL750

Output Module, 12/24VDC Positive Logic 0.5 Amp, 32 Points

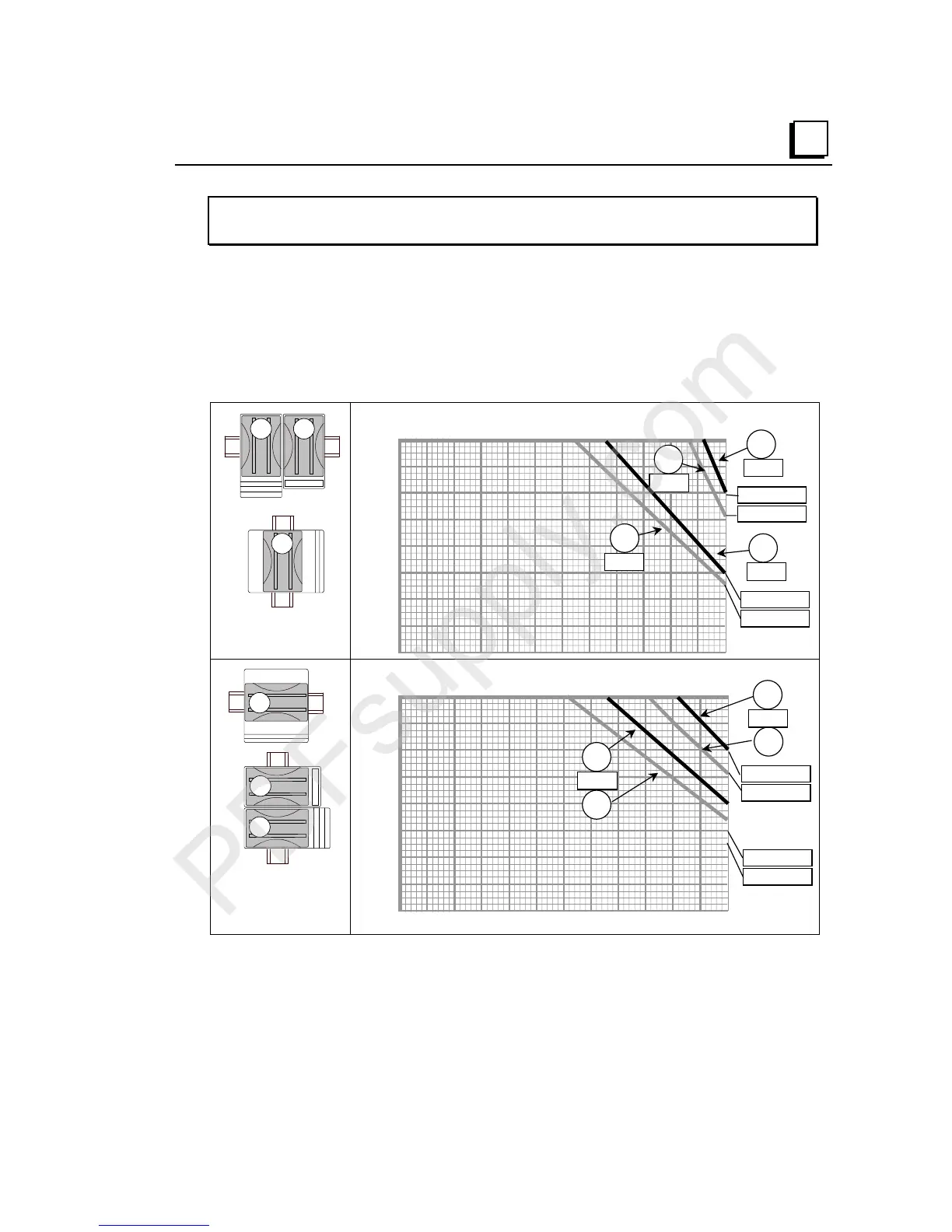

Thermal Derating

The number of points that can be on at the same time depends on the ambient

temperature, the external voltage, and the orientation of the module and DIN rail.

The charts below show example thermal deratings for the module at 24VDC and

30VDC with the maximum output current per point.

A A

Ambient Tem

erature

Number of Points On At the Same Time

60ºC50ºC 55ºC45ºC40ºC35ºC

30ºC

25ºC20ºC15ºC10ºC

5ºC

24VDC

30VDC

12 pts/ group

10 pts/ group

6 pts/ group

5 pts/ group

30VDC

24VDC

Ambient Tem

erature

Number of Points On At the Same Time

60ºC50ºC 55ºC45ºC40ºC35ºC

30ºC

25ºC20ºC15ºC10ºC

5ºC

30VDC

12 pts/ group

10 pts/ group

8 pts/ group

7 pts/ group

24VDC
