6-14 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K

IC200ERM002

Expansion Receiver Module, Non-isolated

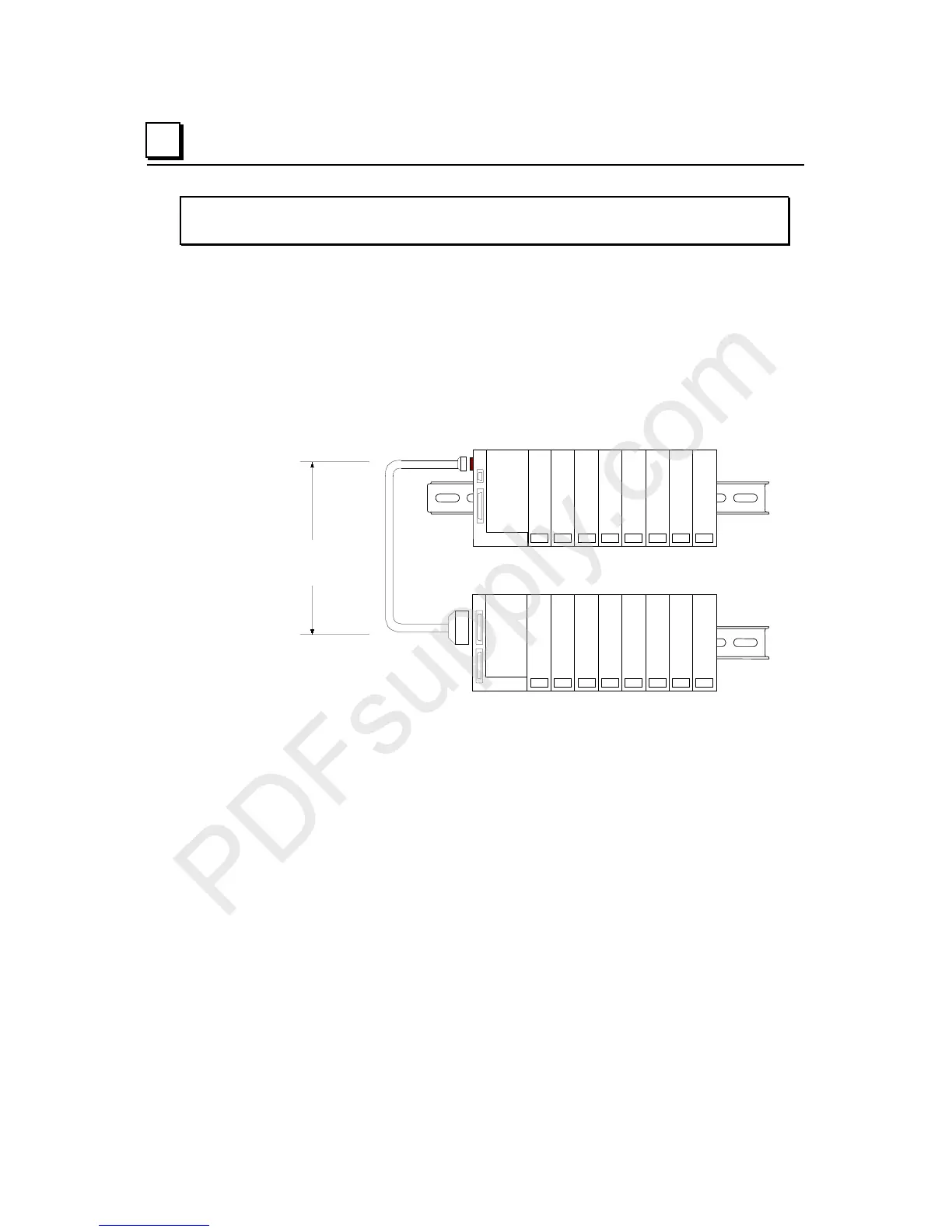

Two-Rack Local System

Expansion Receiver IC200ERM002 can also be used to connect a VersaMax PLC

main rack or VersaMax NIU I/O Station to just one expansion rack without having

an Expansion Transmitter Module in the main rack.

This “single-ended” configuration has a maximum cable length of 1 meter. No

terminator plug is required in the expansion rack.

ERM

VersaMax Expansion Rack

Cable

IC200CBL600

(1M)

VersaMax PLC or NIU I/O Station Main Rack

CPU/NIU
