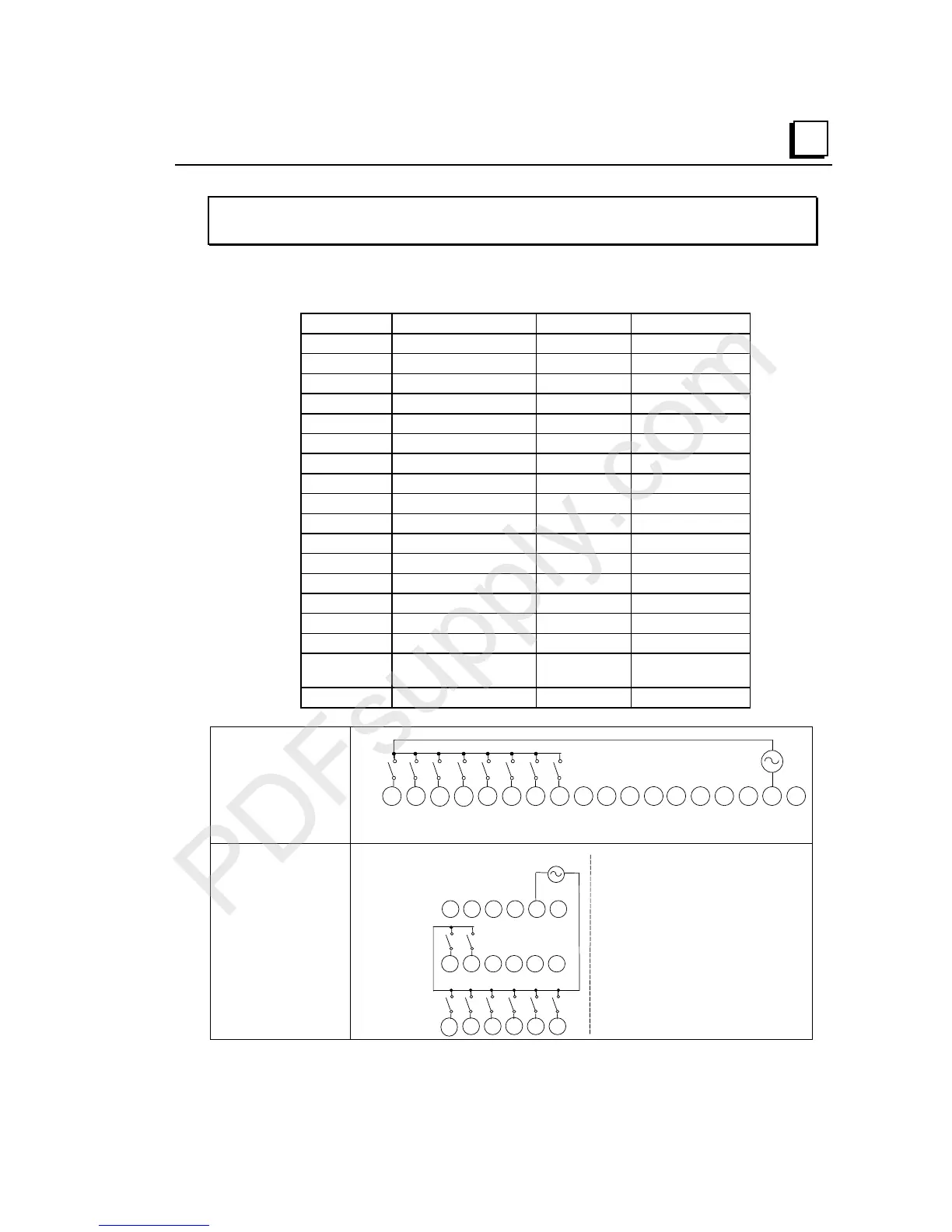

GFK-1504K Chapter 7 Discrete Input Modules 7-7
7
IC200MDL141
Input Module, 240VAC 8 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Input 1 B1 No connection
A2 Input 2 B2 No connection
A3 Input 3 B3 No connection
A4 Input 4 B4 No connection
A5 Input 5 B5 No connection
A6 Input 6 B6 No connection
A7 Input 7 B7 No connection
A8 Input 8 B8 No connection
A9 No connection B9 No connection
A10 No connection B10 No connection
A11 No connection B11 No connection
A12 No connection B12 No connection
A13 No connection B13 No connection
A14 No connection B14 No connection
A15 No connection B15 No connection
A16 No connection B16 No connection
A17 Inputs 1-8 Common
(Return)
B17 No connection
A18 No connection B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
I1 I2 I3 I4 I5 I6 I7 I8
N
H
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
A
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
I1 I2 I3 I4 I5 I6
I7 I8
N
H
A
123456
13
14 15 16 17 18
789 111210
