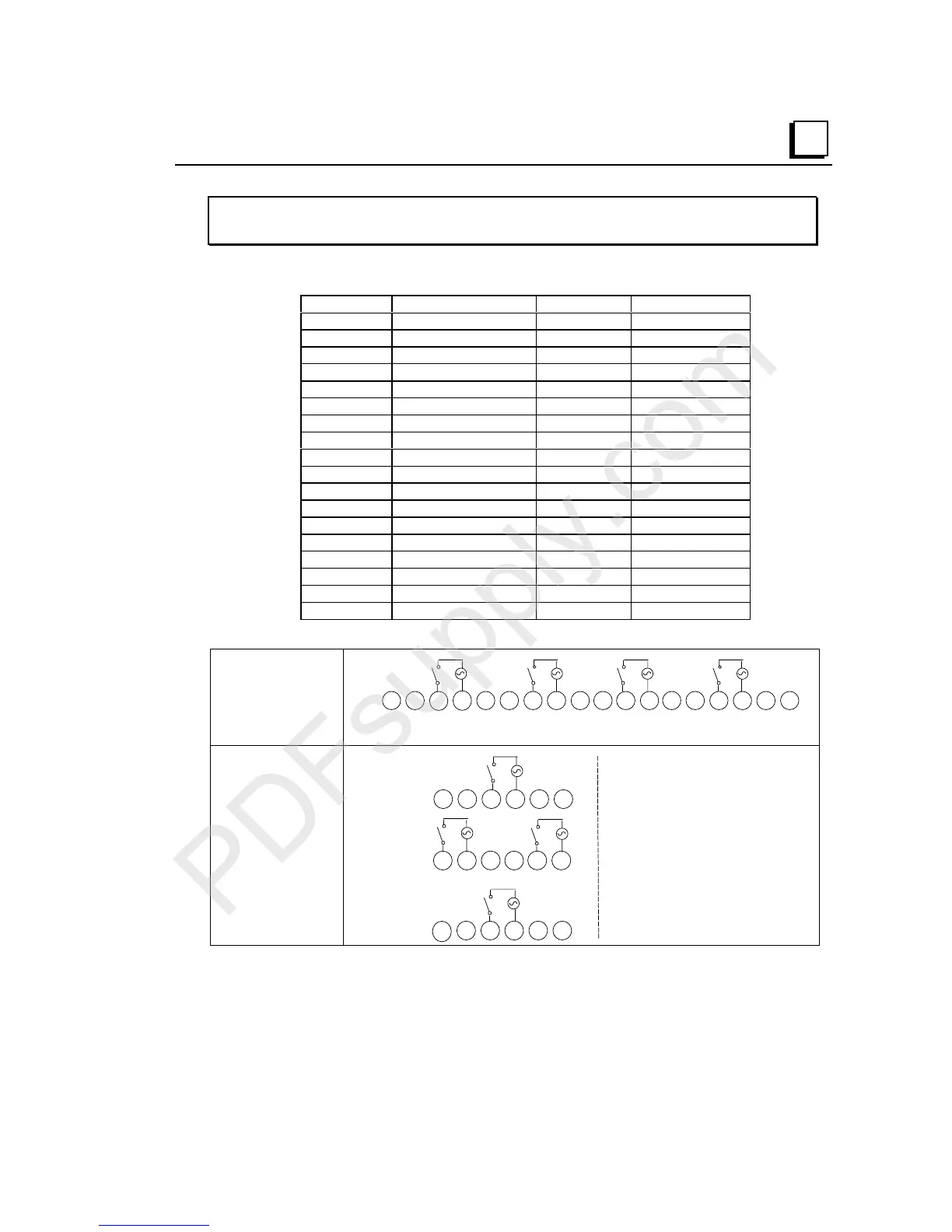

GFK-1504K Chapter 7 Discrete Input Modules 7-13
7
IC200MDL144
Input Module, 240VAC Isolated 4 Points
Field Wiring
Terminal Connection Terminal Connection
A1 No connection B1 No connection
A2 No connection B2 No connection
A3 Input 1 B3 No connection
A4 Input 1 Return B4 No connection
A5 No connection B5 No connection
A6 No connection B6 No connection
A7 Input 2 B7 No connection
A8 Input 2 Return B8 No connection
A9 No connection B9 No connection
A10 No connection B10 No connection
A11 Input 3 B11 No connection
A12 Input 3 Return B12 No connection
A13 No connection B13 No connection
A14 No connection B14 No connection
A15 Input 4 B15 No connection
A16 Input 4 Return B16 No connection
A17 No connection B17 No connection
A18 No connection B18 No connection
Using a shorting bar with this module eliminates its point-to-point isolation.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
I1 I2 I3 I4
12345678
9
11 12 13 14 15 16 17 1810
A
H
H
H
H
NNNN
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
I1
I2
I3
I4
H
H
H
H
N
N
N
N
A
123456
13
14 15 16 17 18
789 111210
Discrete Input Module IC200MDL144 should be used with a compact terminal-style
carrier (IC200CHS022 or 025) or with a terminal-style carrier (IC200CHS001, 002,
005 suffix “B” or higher). This module cannot be used with a Connector-Style
Carrier (IC200CHS003) due to its high isolation requirement.
