7-16 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
7

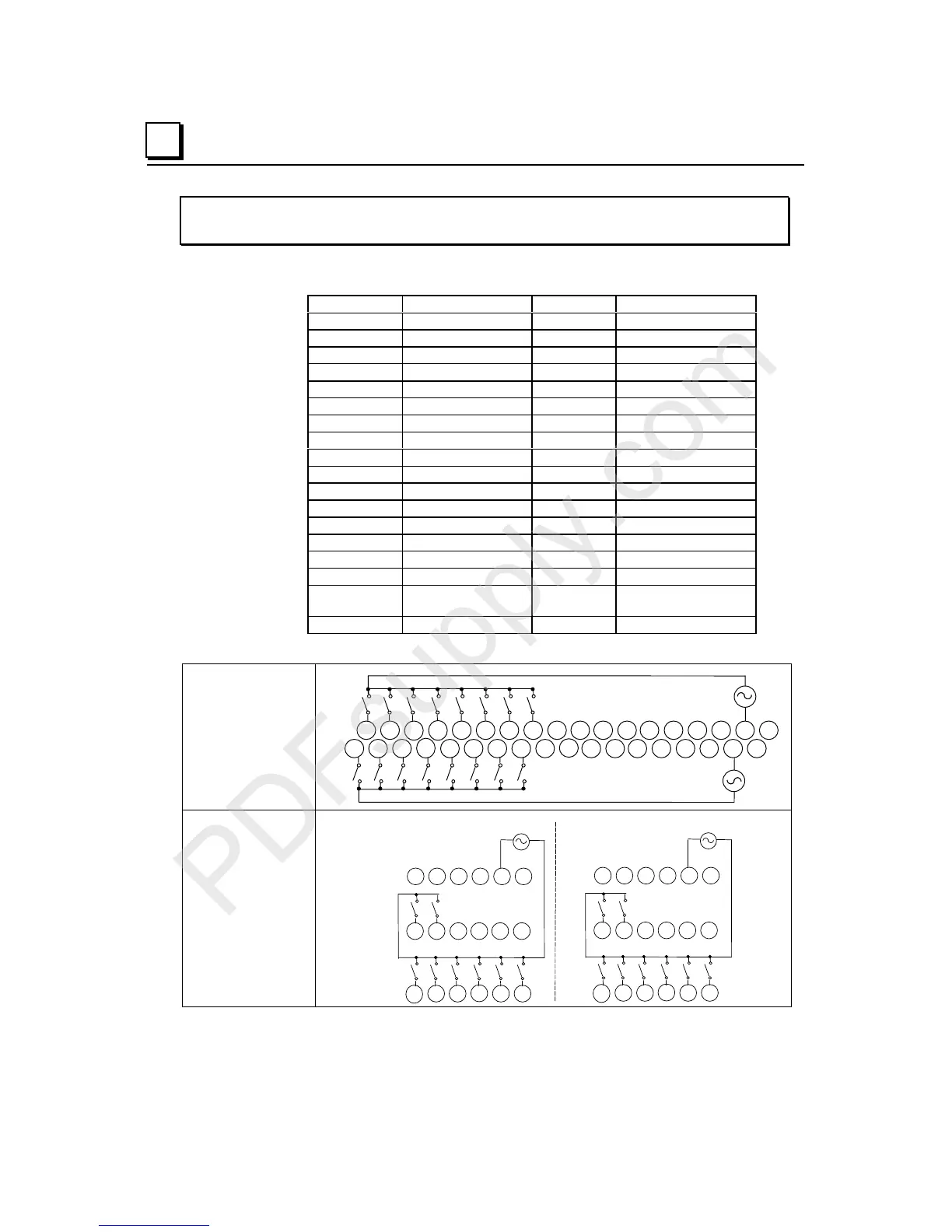

IC200MDL240
Input Module, 120VAC 16 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Input 1 B1 Input 9
A2 Input 2 B2 Input 10
A3 Input 3 B3 Input 11
A4 Input 4 B4 Input 12
A5 Input 5 B5 Input 13
A6 Input 6 B6 Input 14
A7 Input 7 B7 Input 15
A8 Input 8 B8 Input 16
A9 No connection B9 No connection
A10 No connection B10 No connection
A11 No connection B11 No connection
A12 No connection B12 No connection
A13 No connection B13 No connection
A14 No connection B14 No connection
A15 No connection B15 No connection
A16 No connection B16 No connection
A17 Inputs 1-8 Common
(Return)
B17 Inputs 9-16 Common
(Return)
A18 No connection B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
N
H
I1 I2 I3 I4 I5 I6 I7 I8
I9 I10 11 I12 I13 I14 I15 I16
N
H
12345678
9
11 12 13 14 15 16 17 18
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
10
B
A
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
I1 I2 I3 I4 I5 I6
I7 I8
N
H
A
123456
13
14 15 16 17 18
7 8 9 11 1210
I9 I10 I11 I12 I13 I14
I15 I16
N
H
B 123456
13
14 15 16 17 18
7 8 9 11 1210
