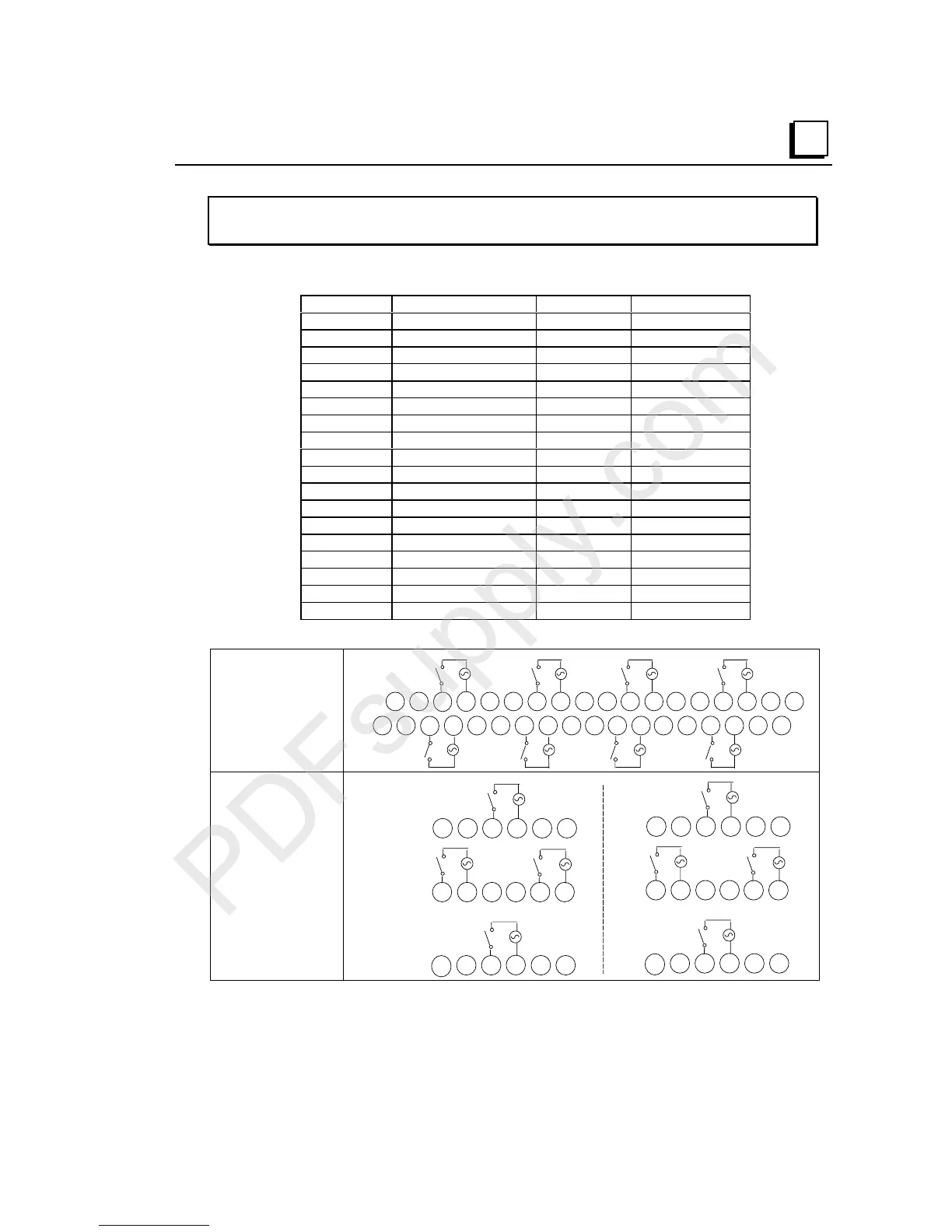

GFK-1504K Chapter 7 Discrete Input Modules 7-27
7
IC200MDL244
Input Module, 240VAC Isolated 8 Points
Field Wiring
Terminal Connection Terminal Connection
A1 No connection B1 No connection
A2 No connection B2 No connection
A3 Input 1 B3 Input 5
A4 Input 1 Return B4 Input 5 Return
A5 No connection B5 No connection
A6 No connection B6 No connection
A7 Input 2 B7 Input 6
A8 Input 2 Return B8 Input 6 Return
A9 No connection B9 No connection
A10 No connection B10 No connection
A11 Input 3 B11 Input 7
A12 Input 3 Return B12 Input 7 Return
A13 No connection B13 No connection
A14 No connection B14 No connection
A15 Input 4 B15 Input 8
A16 Input 4 Return B16 Input 8 Return
A17 No connection B17 No connection
A18 No connection B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
I1 I2 I3 I4
12345678
9
11 12 13 14 15 16 17 1810
A
H
H
H
H
NNNN
12345678
9
11 12 13 14 15 16 17 1810
B
I5 I6 I7 I8
H
H
H
H
NNNN
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
I1
I2
I3
I4
H
H
H
H
N
N
N
N
123456
13
14 15 16 17 18
A
789 111210
B
123456
13
14 15 16 17 18
7 8 9 11 1210
I5
I6
I7
I8
H
H
H
H
N
N
N
N
Module IC200MDL244 should be used with a compact terminal-style carrier
(IC200CHS022 or 025) or with a terminal-style carrier (IC200CHS001, 002, 005
suffix “B” or higher). This module cannot be used with a Connector-Style Carrier
(IC200CHS003) due to its high isolation requirement.
