GFK-1504K Chapter 7 Discrete Input Modules 7-41

IC200MDL636

Input Module, 48VDC Pos/Neg Logic Grouped 32 Points

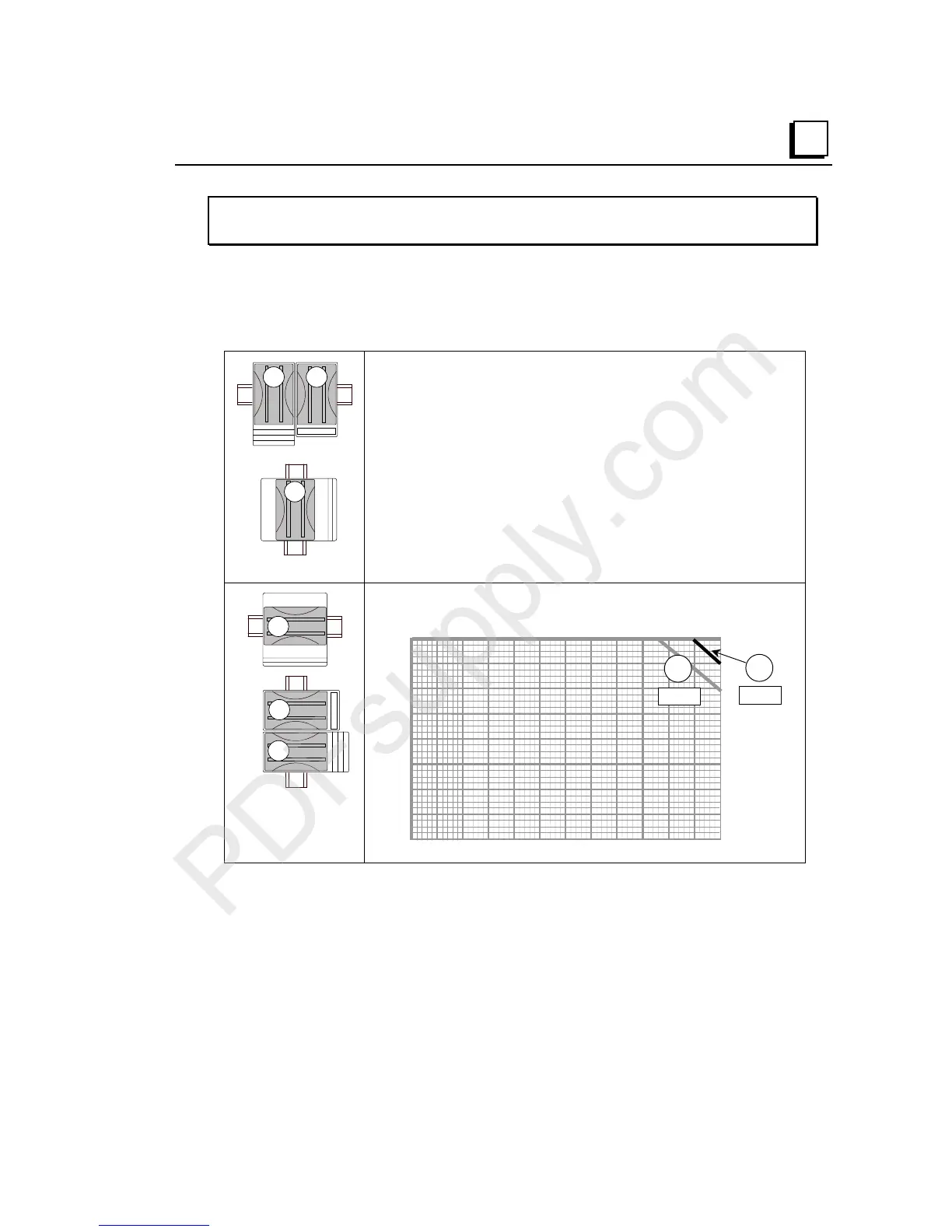

Thermal Derating

The number of points that can be on at the same time depends on the ambient

temperature, the external voltage, and the orientation of the module and DIN rail.

A A

No derating for these installations.

No derating at 48VDC. Deratings at 60VDC are shown below.

Ambient Tem

erature

Number of Points On At the Same Time

60ºC50ºC 55ºC45ºC40ºC35ºC

30ºC

25ºC20ºC15ºC10ºC

5ºC

60VDC
