GFK-1504K Chapter 7 Discrete Input Modules 7-55
7
IC200MDL650
Input Module, 24VDC Pos/Neg Logic 32 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Input 1 B1 Input 17
A2 Input 2 B2 Input 18
A3 Input 3 B3 Input 19
A4 Input 4 B4 Input 20
A5 Input 5 B5 Input 21
A6 Input 6 B6 Input 22
A7 Input 7 B7 Input 23
A8 Input 8 B8 Input 24
A9 Input 9 B9 Input 25
A10 Input 10 B10 Input 26
A11 Input 11 B11 Input 27
A12 Input 12 B12 Input 28
A13 Input 13 B13 Input 29
A14 Input 14 B14 Input 30
A15 Input 15 B15 Input 31
A16 Input 16 B16 Input 32
A17 Inputs 1-8 Common B17 Inputs 17-24 Common
A18 Inputs 9 -16 Common B18 Inputs 25-32 Common
The 32 inputs form four groups of 8. Each group has a common connection. Each
group may be wired for positive or negative logic inputs. Note: Negative-logic
functionality requires version IC200MDL650C or higher.

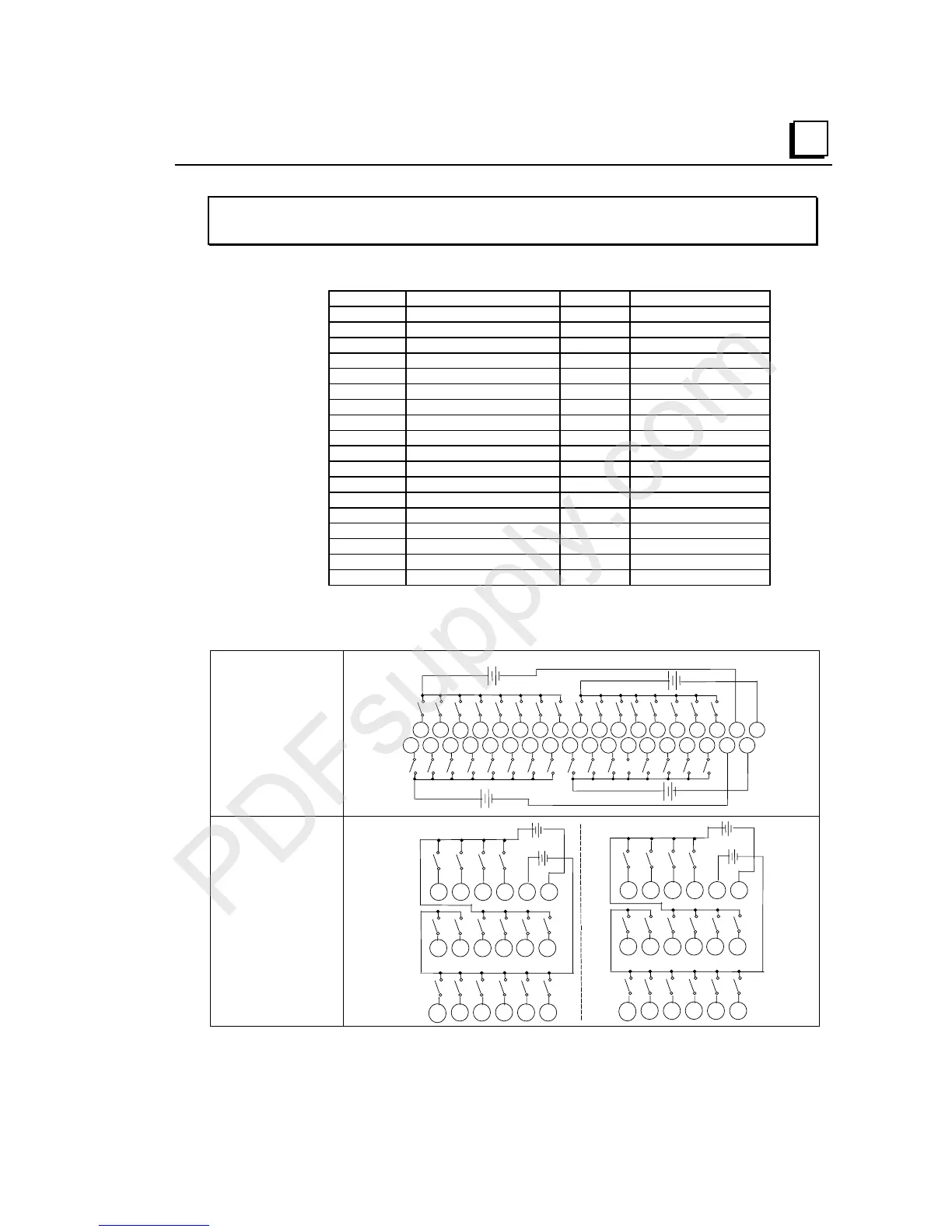

Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
10
I17 I18 I19 I20 I21 I22 I23 I24 I25 I26
I27 I28 I29 I30 I31 I32
I1 I2 I3 I4 I5 I6 I7 I8 I9 I10 11 I12 I13 I14 I15 I16
B
A
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
+
-
(+)
(-)
-
(+)
-
(+)
-
(+)
-
(+)
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
123456
13
14 15 16 17 18
A
789 111210
I17 I18 I19 I20 I21 I22
I23
I24
I25 I26 I27
I28
I32
+
-
(+)
(
-
)
B
I29 I30 I31
+
-
(+)
(
-
)
123456
13
14 15 16 17 18
789 111210
I1 I2 I3 I4 I5 I6
I7
I8
I9 I10 I11
I12
I16
+
-
(+)
(
-
)
I13 I14 I15
+
-
(+)
(
-
)
