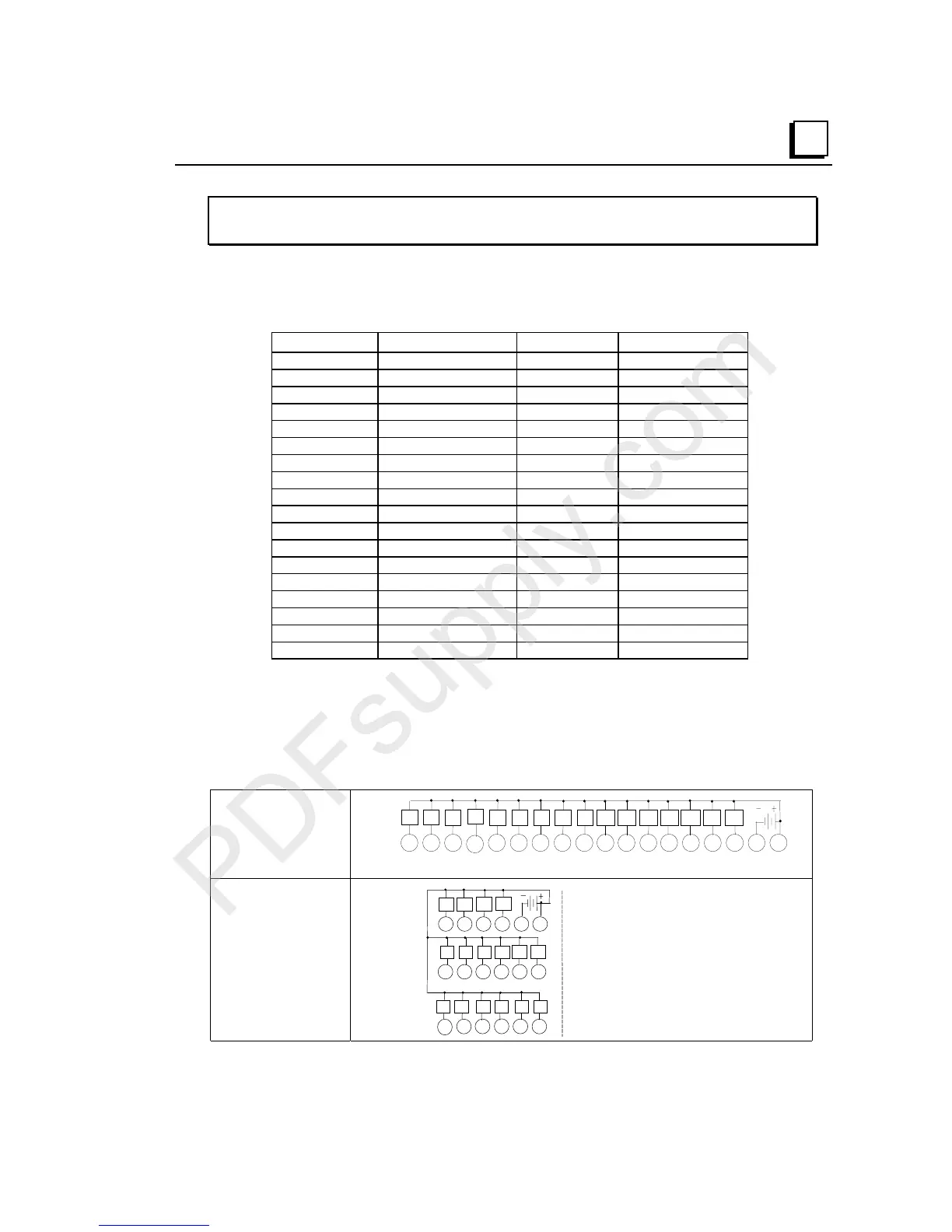

GFK-1504K Chapter 8 Discrete Output Modules 8-31
8
IC200MDL743
Output Module, 5/12/24V DC Negative Logic 0.5 Amp, 16 Points
Field Wiring
The 16 outputs form one group with a DC+ and a DC- terminal.
Terminal Connection Terminal Connection
A1 Output 1 B1 No connection
A2 Output 2 B2 No connection
A3 Output 3 B3 No connection
A4 Output 4 B4 No connection
A5 Output 5 B5 No connection
A6 Output 6 B6 No connection
A7 Output 7 B7 No connection
A8 Output 8 B8 No connection
A9 Output 9 B9 No connection
A10 Output 10 B10 No connection
A11 Output 11 B11 No connection
A12 Output 12 B12 No connection
A13 Output 13 B13 No connection
A14 Output 14 B14 No connection
A15 Output 15 B15 No connection
A16 Output 16 B16 No connection
A17 DC - B17 No connection
A18 DC + B18 No connection
If additional bussed terminals are needed, the B terminals can be made available by
using a shorting bar. The shorting bar has a maximum current-carrying capacity of
2A per point. See chapter 2 for additional information about using the shorting bar.
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. See chapter 2, "Installing Wiring for I/O Devices-Wiring to Inductive
Loads" for more information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Q1
Q2 Q3
Q4
Q5 Q6 Q7 Q8
Q9 Q10 Q11 Q12 Q13 Q14 Q15 Q16
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
A
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
A 123456
13
14 15 16 17 18
789 111210
Q1 Q3
Q7
Q15
Q5
Q9
Q11
Q13
Q2 Q4
Q8
Q16
Q6
Q10
Q12
Q14
To Next Page
