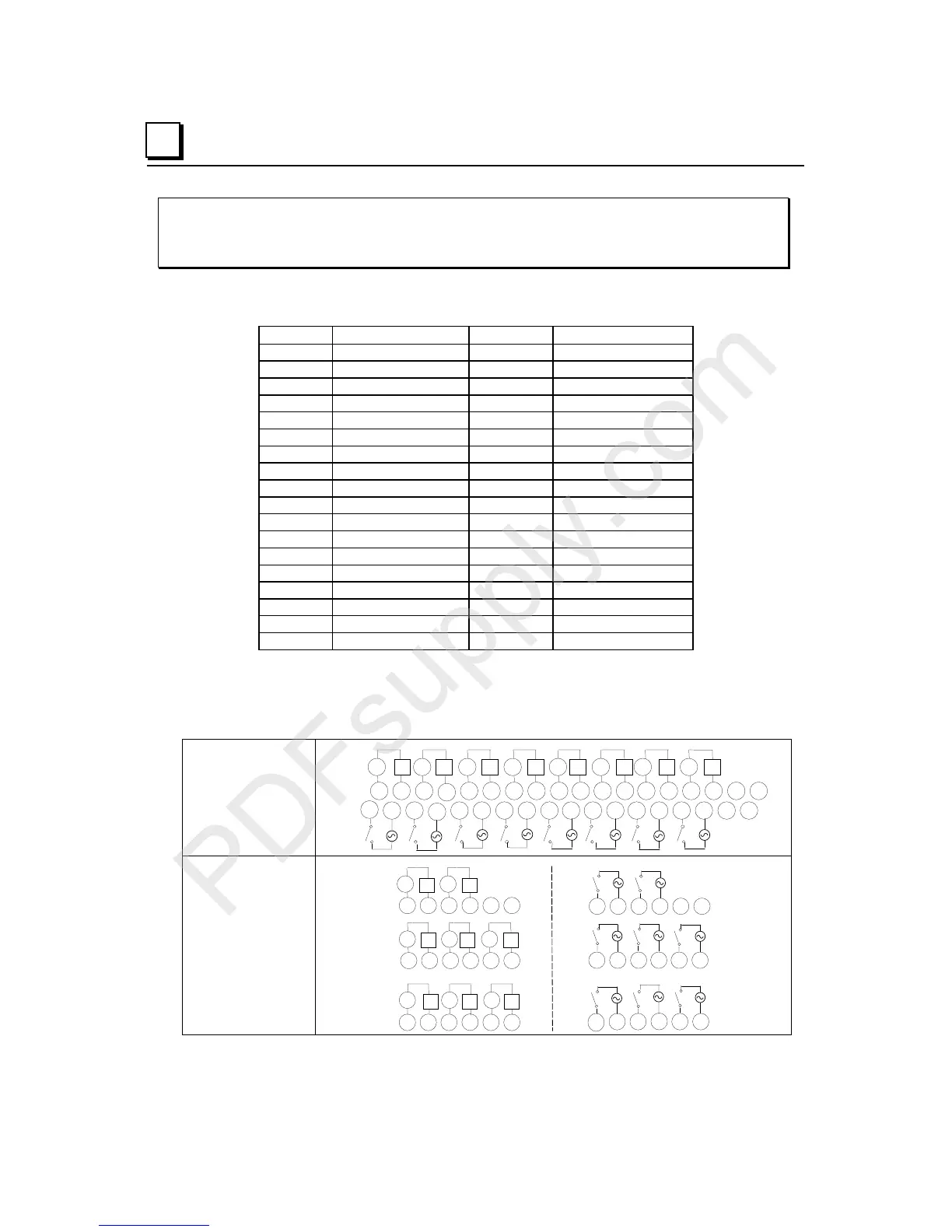

9-42 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
9
IC200MDD849
Mixed Module Output Relay 2.0A per Pt Isolated 8 Points /
Input 120VAC Isolated 8 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Output 1-1 B1 Input 1
A2 Output 1-2 B2 Input 1 Return
A3 Output 2-1 B3 Input 2
A4 Output 2-2 B4 Input 2 Return
A5 Output 3-1 B5 Input 3
A6 Output 3-2 B6 Input 3 Return
A7 Output 4-1 B7 Input 4
A8 Output 4-2 B8 Input 4 Return
A9 Output 5-1 B9 Input 5
A10 Output 5-2 B10 Input 5 Return
A11 Output 6-1 B11 Input 6
A12 Output 6-2 B12 Input 6 Return
A13 Output 7-1 B13 Input 7
A14 Output 7-2 B14 Input 7 Return
A15 Output 8-1 B15 Input 8
A16 Output 8-2 B16 Input 8 Return
A17 No connection B17 No connection
A18 No connection B18 No connection
Outputs are individually isolated. This module should be used with a compact terminal-
style carrier (IC200CHS022 or 025) or with a terminal-style carrier. When wiring outputs
to inductive loads, use of external suppression circuits is recommended. See chapter 2,
"Installing Wiring for I/O Devices-Wiring to Inductive Loads" for more information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
I1 I2 I3 I4
I5 I6 I7 I8
Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8
v v v v v v v v
123456789 1112131415161718
123456789 111213141516171810
10
B
A
N
H
N
H
N
H
N
H
N
H
N
H
N
H
N
H
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
123456
123456
13
14 15 16 17 18
789 111210
A
13 14 15 16 17 18
7 8 9 11 1210
B
Q4 Q5 Q6
Q7 Q8
vvv
vv
Q1 Q2 Q3
vv
v
I2
I4
I6
N
H
N
H
N
H
I8
N
H
I5
N
H
I1
N
H
I3
N
H
I7
N
H
